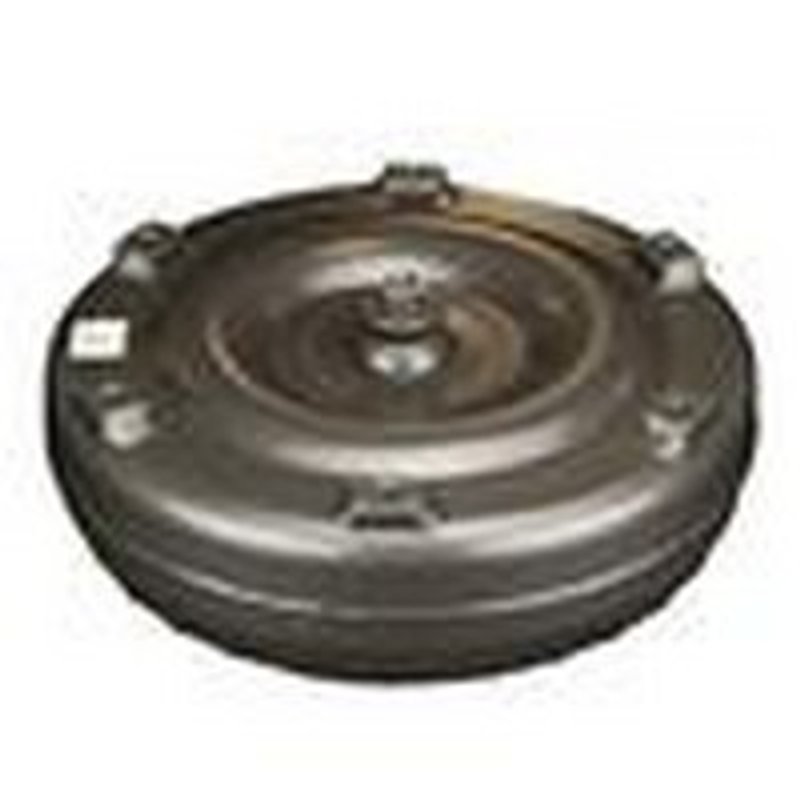

TC Remanufacturing TO42-9 Automatic Transmission Torque Converter

Automatic Transmission Torque Converter

TC Remanufacturing TO42-9 is an automatic transmission torque converter built for Toyota and Scion applications that use a 9.000-inch bolt circle. It features a lock-up design, medium stall characteristics, and a 10.150-inch converter diameter for direct replacement use in supported vehicles.

Key Features

• Part number: TO42-9
• Automatic transmission torque converter
• Lock-up converter type
• Medium stall
• 10.150-inch converter diameter
• 9.000-inch bolt circle
• 6-pad mounting type
• 9mm x 1.25 mounting thread size
• Slotted hub type
• 1.257-inch pilot diameter
• 26-spline count
• No ring gear
• Converter code: #16A Bar Code

Detailed Description

This TC Remanufacturing torque converter is specified for a range of Toyota, Scion, Pontiac, and Lexus vehicles with matching transmission and bolt-circle requirements. The lock-up design supports efficient highway operation, while the medium stall calibration provides a balanced launch feel for everyday driving. If you are replacing a worn converter in a Toyota Camry, Toyota RAV4, Scion tC, or Toyota Highlander, TO42-9 gives you the core dimensions and mounting details needed for a proper match.

Compatible vehicle coverage includes Fits 2010-2015 Scion xB, Fits 2009-2013 Toyota Highlander, Fits 2001-2007 Toyota Highlander, Fits 2011-2012 Scion tC, Fits 2007-2009 Scion tC, Fits 1996-2012 Toyota RAV4, Fits 2009-2010 Pontiac Vibe, Fits 2010 Scion tC, Fits 2005-2006 Scion tC, Fits 2008-2009 Scion xD, Fits 2005-2009 Toyota Camry, Fits 2002 Toyota Camry, Fits 1983-1999 Toyota Camry, Fits 2002-2008 Toyota Solara, Fits 1999 Toyota Solara, Fits 2003-2004 Toyota Camry, Fits 2000-2001 Toyota Camry, Fits 2000-2001 Toyota Solara, Fits 1994-1999 Toyota Celica, Fits 1992-1993 Lexus ES300, and Fits 1990-1991 Lexus ES250. For Toyota Camry and Toyota RAV4 applications, confirm the 9-inch bolt circle requirement before installation.

What It Is Used For

• Replacing a slipping or worn torque converter in automatic transmission service
• Restoring lock-up operation in supported Toyota, Scion, Pontiac Vibe, and Lexus applications
• Addressing shudder, poor engagement, or abnormal converter behavior
• Correcting drivability issues tied to converter wear or internal failure
• Matching the original 9.000-inch bolt circle and 26-spline configuration

Installation Notes and Tips

Verify the transmission code, converter code, bolt circle, spline count, pilot diameter, and mounting style before installation. This part number TO42-9 is built around a 9.000-inch bolt circle, 6-pad mounting, 9mm x 1.25 thread size, and slotted hub design, so those dimensions should be matched to the vehicle and transmission assembly. Always inspect the transmission, cooler, and flexplate condition during replacement to help prevent repeat converter failure.

Quality Assurance

TC Remanufacturing supplies remanufactured drivetrain components for service replacement applications. This torque converter is identified by part number TO42-9 and converter code #16A Bar Code for application matching and catalog verification.
