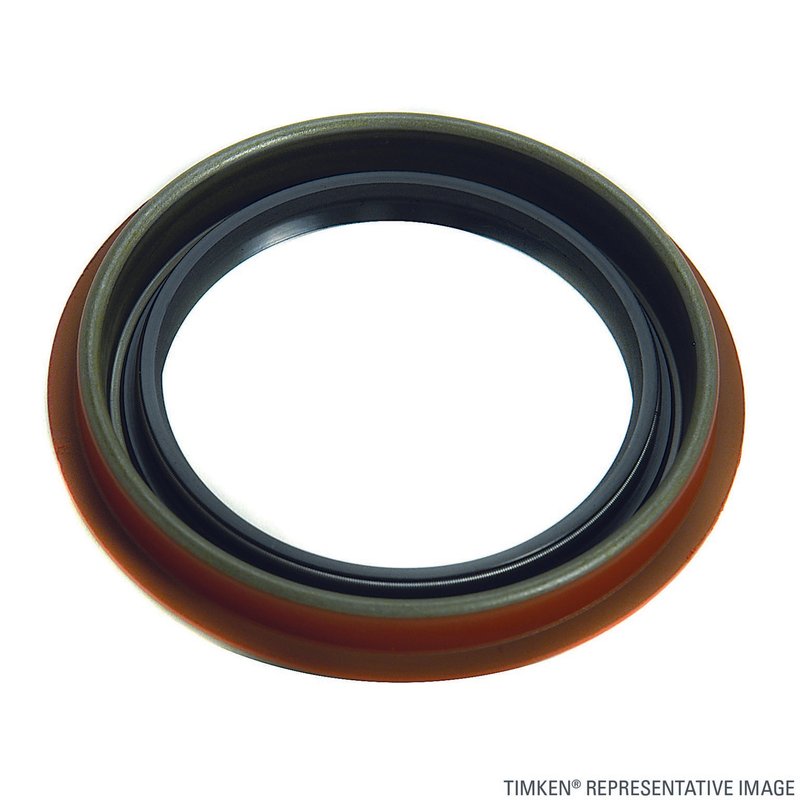

Timken 100537 Drive Axle Shaft Seal - Front or Rear

Overview of Timken Drive Axle Shaft Seal 100537

The Timken Drive Axle Shaft Seal 100537 is engineered for reliable sealing performance in driveline applications. Designed specifically for Ford, Lincoln, and Mercury vehicles, this seal helps maintain axle integrity and prevent leaks in models such as the Ford F-150 and Lincoln Navigator.

• Constructed from durable V-fluoro-elastomer material for enhanced chemical and heat resistance
• Outside diameter measures 2.881 inches (73.18 mm) ensuring precise fit
• Shaft diameter of 1.811 inches (46.00 mm) compatible with specified axle shafts
• Housing bore dimension of 2.874 inches (73.00 mm) for secure installation
• Bi-bi-directional helix type design for effective sealing in both rotational directions
• Width dimensions of 0.479 inches (12.77 mm) for optimal sealing surface

Technical Details and Material Specifications

This drive axle shaft seal is made from V-fluoro-elastomer, a material known for its resistance to high temperatures, oils, and other automotive fluids. The seal’s precise dimensions, including a 2.881 inch outside diameter and 1.811 inch shaft diameter, ensure compatibility with axle shafts in Ford, Lincoln, and Mercury vehicles. The bi-bi-directional helix design enhances sealing efficiency by preventing fluid leakage regardless of shaft rotation direction. These attributes make the Timken 100537 a reliable component for maintaining driveline system integrity.

Compatible Vehicles and Applications

The Timken 100537 drive axle shaft seal is compatible with a range of Ford, Lincoln, and Mercury models. It is suitable for use in:

• Ford F-150
• Ford Expedition
• Ford Explorer and Explorer Sport Trac
• Lincoln Navigator
• Lincoln Aviator
• Mercury Mountaineer
• Ford Mustang

Common Issues Addressed by This Seal

• Prevents axle shaft oil leaks that can cause driveline damage
• Reduces contamination ingress into axle housing
• Maintains proper lubrication of axle components
• Minimizes wear on axle shaft bearings
• Helps avoid costly repairs due to seal failure

Installation Notes and Tips

• Ensure the housing bore and shaft surfaces are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify the seal orientation matches the bi-bi-directional helix design for optimal performance
• Check fitment compatibility with vehicle make and model prior to installation

Quality Assurance and Warranty

Timken manufactures the 100537 drive axle shaft seal to meet stringent quality standards for durability and performance. The use of V-fluoro-elastomer material ensures resistance to heat and chemical exposure common in automotive environments. While specific warranty details should be confirmed at the point of purchase, Timken products typically come with manufacturer-backed warranties covering defects in material and workmanship.
