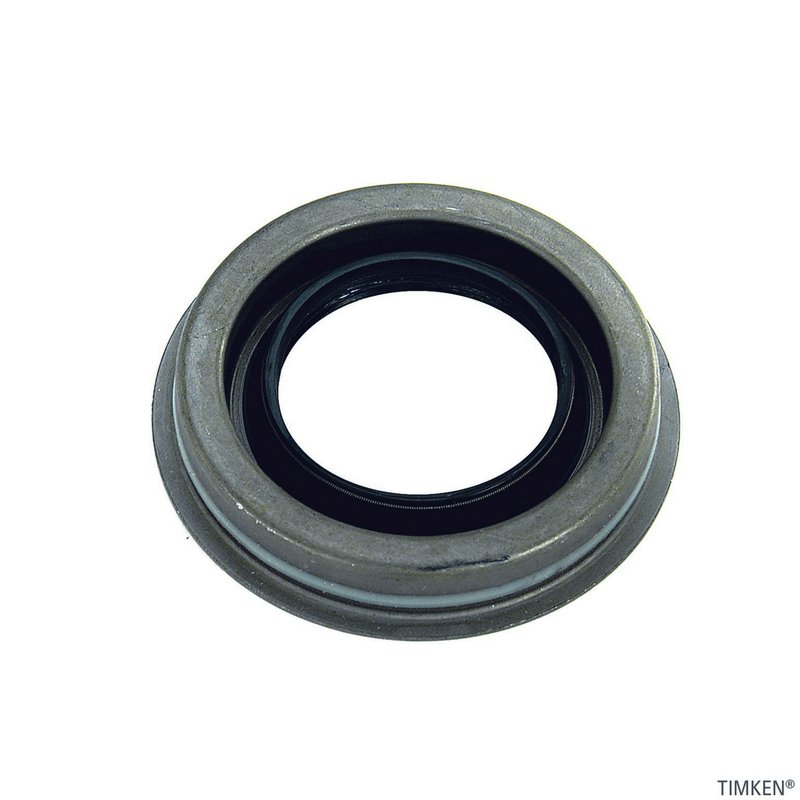

Timken 100712V Differential Pinion Seal - Front, Front Outer, Rear or Rear Outer

Reliable Differential Pinion Seal for Select Trucks and SUVs

The Timken 100712V Differential Pinion Seal is engineered to provide a precise fit and dependable sealing performance for a range of vehicles including Chevrolet Silverado 1500, Ford F-250 Super Duty, and Jeep Grand Cherokee. Designed with exacting dimensions, this seal helps maintain differential integrity and prevents fluid leaks under demanding driving conditions.

• Outside diameter options: 3.169 inches (80.50 mm) and 3.164 inches (80.37 mm)
• Shaft diameter options: 1.889 inches (48.00 mm)
• Width: 0.525 inches (13.34 mm)
• Durable construction for long-lasting sealing
• Compatible with multiple makes and models including Cadillac Escalade, Nissan Frontier, and Ram 1500

Precision Dimensions for Optimal Fit and Performance

The Timken 100712V differential pinion seal features carefully specified dimensions to ensure a secure fit within the housing bore and around the shaft. With an outside diameter of approximately 3.169 inches (80.50 mm) and a housing bore diameter close to 3.164 inches (80.37 mm), this seal fits tightly to prevent leaks. The shaft diameter of 1.889 inches (48.00 mm) and a width of 0.525 inches (13.34 mm) provide a balanced profile that supports effective sealing without excess friction or wear.

Compatible Vehicles and Applications

This differential pinion seal is compatible with a variety of trucks and SUVs, including Chevrolet Silverado 1500 HD, Ford F-350 Super Duty, Jeep Grand Cherokee, GMC Yukon XL 2500, and Nissan Titan. It is designed to replace worn or damaged seals in driveline and axle assemblies, helping to maintain proper lubrication and prevent contamination.

• Prevents differential fluid leaks
• Reduces risk of axle and driveline damage
• Helps maintain proper differential pressure
• Minimizes contamination from dirt and debris
• Supports smooth driveline operation

Installation Notes and Tips

When installing the Timken 100712V differential pinion seal, ensure the housing bore and shaft are clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip. Verify the seal orientation matches the original part to maintain proper sealing function. Lubricate the seal lip lightly with differential fluid before installation to reduce initial wear.

Quality Assurance and Warranty

Timken manufactures the 100712V differential pinion seal to meet strict quality standards, ensuring reliable performance in demanding automotive applications. While specific warranty details may vary, Timken products typically come with a limited warranty against defects in materials and workmanship, providing confidence in the durability and fitment of this seal.
