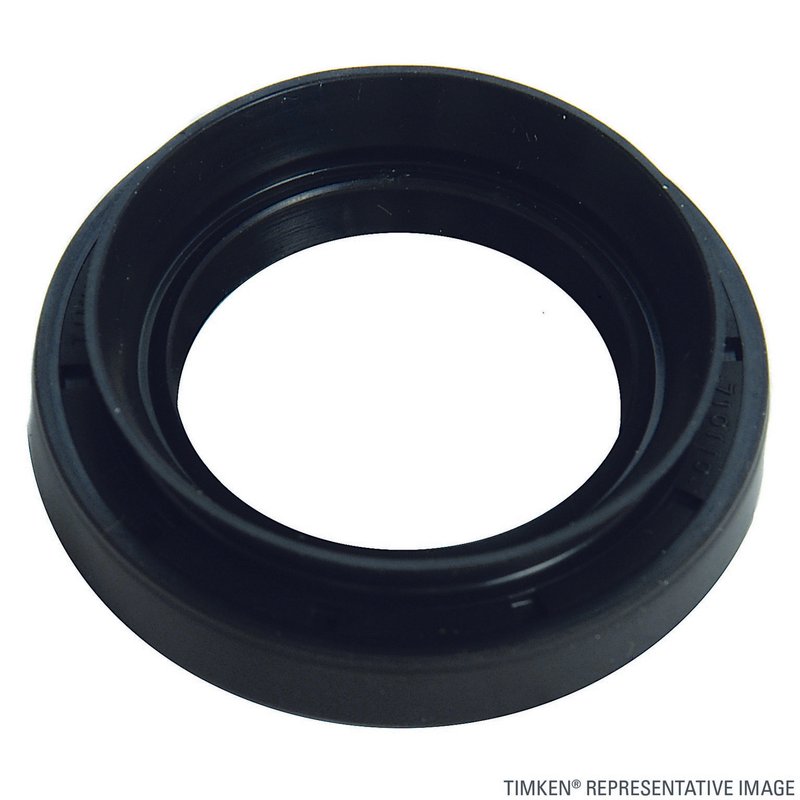

Timken 1036 Manual Transmission Output Shaft Seal - Right

Reliable Manual Transmission Output Shaft Seal for Acura and Honda

The Timken 1036 manual transmission output shaft seal is engineered to provide a precise fit and durable sealing solution for select Acura and Honda models. Designed to maintain transmission fluid integrity, this seal helps protect your vehicle's manual transmission system from leaks and contamination.

• Outside diameter: 3.003 inches (76.28 mm)
• Shaft diameter: 1.575 inches (40.00 mm)
• Housing bore diameter: 2.992 inches (76.00 mm)
• Width: 0.354 inches (9.00 mm)
• Material: N-polyacrylate for enhanced durability
• Helix type: Clockwise (CW) for optimal sealing performance

Technical Details and Material Specifications

The Timken 1036 output shaft seal is constructed from N-polyacrylate, a material known for its resistance to heat, wear, and transmission fluids. Its precise dimensions, including a 3.003-inch outside diameter and a 1.575-inch shaft diameter, ensure a secure fit within the manual transmission housing bore of 2.992 inches. The 0.354-inch width provides adequate sealing surface to prevent fluid leakage. The clockwise helix design aids in maintaining a tight seal under rotational forces, making it suitable for manual transmissions in Acura Accord, CR-V, Integra, and Prelude models.

Compatible Vehicles and Applications

This manual transmission output shaft seal is compatible with the following vehicles:

• Acura Accord
• Acura Integra
• Acura Prelude
• Honda CR-V

It is specifically designed to replace worn or damaged seals in these models, helping to maintain transmission performance and prevent fluid leaks.

Common Issues Addressed by the Timken 1036 Seal

• Prevents manual transmission fluid leaks around the output shaft
• Reduces contamination ingress into the transmission system
• Minimizes wear on transmission components caused by fluid loss
• Helps maintain proper transmission pressure and function
• Eliminates noise and vibration caused by seal failure

Installation Notes and Tips

When installing the Timken 1036 output shaft seal, ensure the transmission housing bore is clean and free of debris. Use appropriate tools to press the seal evenly into place without damaging the sealing lip. Verify the clockwise helix orientation matches the shaft rotation direction. It is recommended to inspect the shaft surface for wear or damage before installation to ensure optimal sealing performance.

Quality Assurance and Warranty

Timken manufactures the 1036 manual transmission output shaft seal to meet strict quality standards, ensuring reliable performance and durability. The seal is made from high-grade N-polyacrylate material designed to withstand the demanding conditions of manual transmissions. While specific warranty details may vary, Timken products typically come with a limited warranty against manufacturing defects. Consult product documentation or authorized sources for exact warranty terms.
