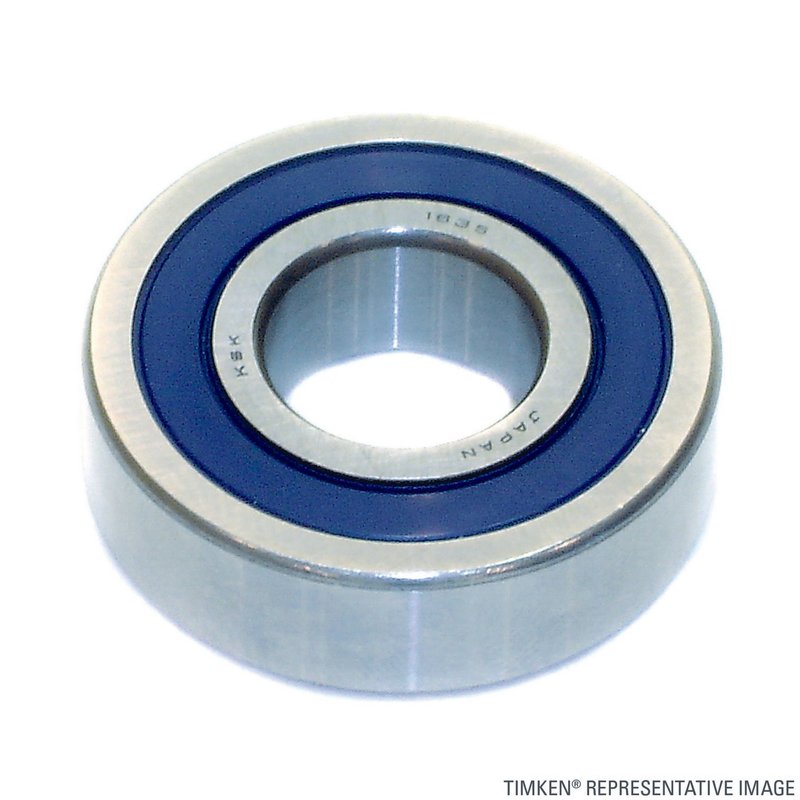

Timken 109FF Drive Shaft Center Support Bearing

Timken 109FF Drive Shaft Center Support Bearing

The Timken 109FF drive shaft center support bearing is a direct-fit driveline bearing for select Volvo applications. It is built for stable rotation, reduced noise, and consistent vibration control in the driveline.

• Drive shaft center support bearing for driveline service
• Deep groove ball bearing design for smooth operation
• Built to support higher operating speeds under proper lubrication
• Surface finish and tight tolerances help maintain noise and vibration performance
• Available in shielded and sealed Timken bearing designs for demanding conditions
• ISO-based dimensions for interchange with competitor parts

Vehicle Fitment

• Fits 1994-1996 Volvo 960, N/A
• Fits 1994-1995 Volvo 940, N/A
• Fits 1990-1993 Volvo 240, N/A, 45mm Driveshaft
• Fits 1991-1993 Volvo 940, N/A, Type 03 Drive Shaft
• Fits 1992-1993 Volvo 960, N/A, Type 03 Drive Shaft
• Fits 1985-1992 Volvo 740, N/A, Type 03 Drive Shaft
• Fits 1987-1991 Volvo 780, N/A, Type 03 Drive Shaft
• Fits 1983-1990 Volvo 760, N/A, Type 03 Drive Shaft
• Fits 1985 Volvo 745, N/A, Type 03 Drive Shaft

Detailed Description

Timken 109FF is a driveline bearing used in Volvo 240, 740, 760, 780, 940, and 960 applications with the listed driveshaft configurations. As a drive shaft center support bearing, it helps maintain shaft alignment and smooth driveline rotation, which is important when addressing vibration, rumble, or bearing wear in the center support area. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Timken deep groove bearing construction is engineered for low noise and stable performance, with tight dimensional control that supports proper fit and operation. The 109FF follows ISO dimensions and is interchangeable with competitor parts that match the same specification.

Common Repair Uses

• Driveline vibration from a worn center support bearing
• Noise from the driveshaft support area
• Excess play or roughness in the center bearing
• Restoring smooth driveshaft rotation on Volvo rear-wheel-drive models
• Replacing a bearing that no longer maintains proper shaft support

Installation Notes and Tips

Verify the driveshaft configuration before ordering, especially Type 03 Drive Shaft and 45mm Driveshaft applications. Inspect the driveshaft, support bracket, and surrounding driveline components for wear before installation. Confirm the bearing dimensions and alignment against the removed part to ensure correct fitment on the vehicle.

Quality Assurance

Timken manufactures this bearing to worldwide quality standards and to ISO-based dimensional requirements for interchangeability. The bearing design is intended to deliver consistent noise and vibration performance in driveline service.
