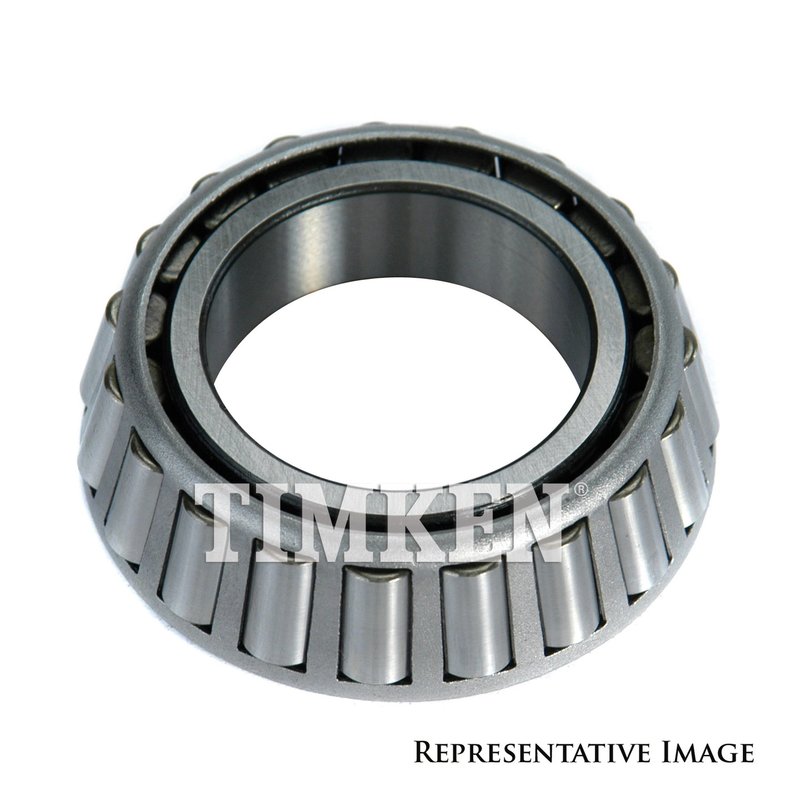

Timken 13687 Automatic Transmission Transfer Shaft Bearing - Inner or Left

Overview of Timken Automatic Transmission Transfer Shaft Bearing 13687

The Timken 13687 automatic transmission transfer shaft bearing is engineered for reliable performance in select Chrysler, Dodge, and Plymouth vehicles. Designed to meet precise specifications, this bearing supports smooth transmission operation in models such as the Caravan, Town & Country, and Sebring.

• Inside diameter options: 1.500 inches (38.10 mm)
• Cone radius measurements: 0.079 inches and 2.00 inches
• Cone width: 19.05 mm
• Compatible with multiple Chrysler, Dodge, and Plymouth models
• Part number 13687 for accurate identification

Technical Specifications and Design Details

The Timken 13687 bearing features an inside diameter of 1.500 inches (38.10 mm), ensuring a precise fit on the automatic transmission transfer shaft. The cone radius dimensions of 0.079 inches and 2.00 inches provide the necessary geometry for optimal load distribution and rotational stability. With a cone width of 19.05 mm, this bearing maintains proper alignment and reduces wear within the transmission assembly. These specifications are critical for maintaining the integrity and performance of the transmission system in vehicles like the Chrysler Town & Country and Dodge Grand Caravan.

Compatible Vehicles and Applications

This automatic transmission transfer shaft bearing is compatible with a range of Chrysler, Dodge, and Plymouth models, including:

• Chrysler Town & Country, New Yorker, Imperial, LeBaron
• Dodge Caravan, Grand Caravan, Avenger, Stratus
• Plymouth Voyager, Grand Voyager, Cirrus, Sebring

Using part number 13687 ensures proper fitment and function in these vehicles' automatic transmissions.

Common Issues Addressed by Timken 13687 Bearing

• Eliminates excessive play or wobble in the transfer shaft
• Reduces transmission noise caused by worn bearings
• Prevents premature wear of transmission components
• Improves smoothness of gear engagement
• Maintains proper shaft alignment under load

Installation Notes and Tips

When installing the Timken 13687 bearing, ensure the transmission transfer shaft and housing are clean and free of debris. Proper lubrication is essential to prevent early bearing failure. Use appropriate tools to press the bearing into place without causing damage to the cone surfaces. Verify the bearing’s inside diameter and cone dimensions match the shaft specifications for a secure fit. Consult the vehicle’s service manual for torque specifications and installation procedures specific to Chrysler, Dodge, or Plymouth models.

Quality Assurance and Warranty Information

Timken bearings are manufactured to meet stringent quality standards, ensuring durability and consistent performance. The 13687 bearing undergoes rigorous testing to comply with OEM specifications for automatic transmission components. While specific warranty details may vary, Timken typically offers coverage against manufacturing defects, providing confidence in the product’s reliability for Chrysler, Dodge, and Plymouth vehicle applications.
