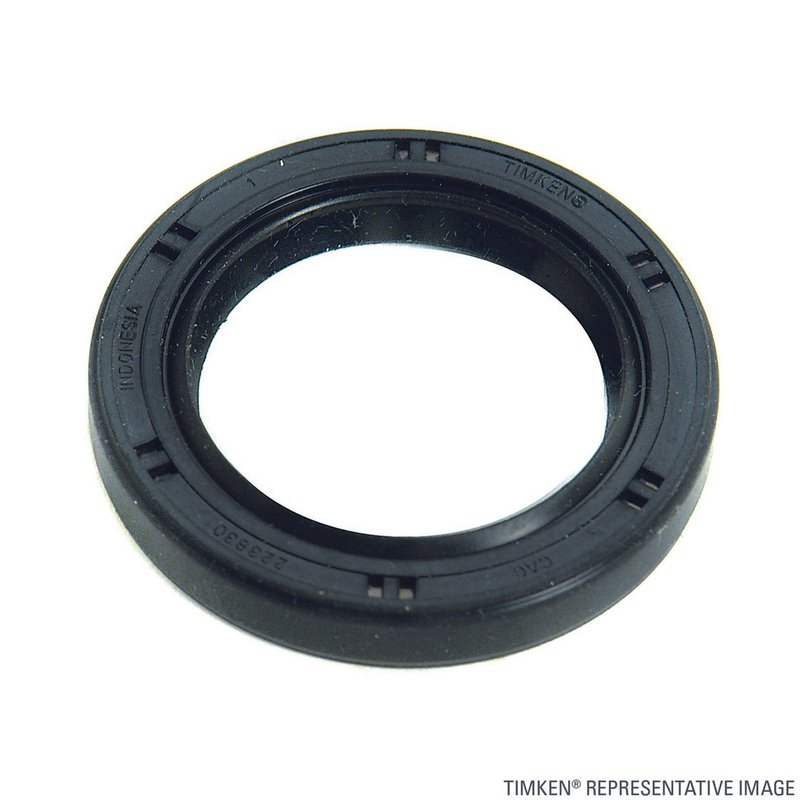

Timken 222210 Steering Gear Worm Shaft Seal
| Brand | Timken 222210 |
|---|---|
| Material | S-nitrile |
| Outside Diameter | 1.269 |
| Outside Diameter | 32.23 |
| Housing Bore | 1.260 |
| Housing Bore | 32.00 |
| Shaft Diameter | 0.866 |
| Shaft Diameter | 22.00 |
| Width | 0.276 |
| Width | 7.00 |
| Fits | — |
Precision sealing design. Helps prevent lubricant escape and keeps contaminants out.
Reinforced outer case. Helps resist installation damage and adds durability.
S-Nitrile construction. Provides reliable sealing performance in a grease and oil seal.
Cross-references AP Exhaust 8519, Raybestos Brakes 8510 and Timken 222210 for the same application. See all 3.
Timken Steering Gear Worm Shaft Seal 222210
Timken 222210 is a steering gear worm shaft seal built for precise lubricant control in steering systems. It uses an S-Nitrile sealing material, a reinforced outer case, and a ribbed inner diameter to help seat securely on the shaft while resisting contamination and heat-related wear.
Compatible With steering gear service on applications such as Honda Civic and Toyota Corolla where a worm shaft seal is specified, this seal is designed for accurate housing fit and dependable sealing performance. The Timken 222210 seal measures 1.269 in. outside diameter, 1.260 in. housing bore, 0.866 in. shaft diameter, and 0.276 in. width.
Key Features
- S-Nitrile construction for sealing performance in steering gear applications
- Reinforced outer case helps reduce installation damage
- Ribbed inner diameter supports seating on minor shaft imperfections
- Internal contamination exclusion system helps block debris entry
- Vent holes promote lubricant flow around the seal lip to reduce heat build-up
- Timken 222210 dimensions: 32.23 mm OD, 32.00 mm housing bore, 22.00 mm shaft diameter, 7.00 mm width
Detailed Description
This steering gear worm shaft seal is engineered to retain lubricant inside the steering gear while keeping dirt and other contaminants out. The reinforced outer case adds durability during installation, while the ribbed rubber inner diameter helps create a positive seal against the shaft surface. Timken 222210 is a practical choice for steering gear repair where the original seal has hardened, leaked, or lost its sealing ability. This part cross-references AP Exhaust 8519 and Raybestos Brakes 8510 for the same application.
Common Issues It Can Help Solve
- Steering gear oil leakage at the worm shaft
- Grease seepage from worn or hardened seal surfaces
- Contamination entering the steering gear housing
- Heat-related seal deterioration from poor lubricant circulation
- Improper sealing caused by minor shaft surface imperfections
Installation Notes and Tips
Confirm shaft diameter, housing bore, and seal width before installation. Clean the sealing surface and housing thoroughly, and inspect the shaft for scoring or wear that could affect sealing. Use care during installation to avoid damaging the outer case or sealing lip, and verify proper seating before returning the vehicle to service. Fits 2006-2011 Honda Civic, steering gear applications when this seal specification is required. Fits 2003-2008 Toyota Corolla, steering gear applications when this seal specification is required.
Quality Assurance
Timken designs oil and grease seals with precision sealing features to control lubricant loss and reduce contaminant intrusion. Part number 222210 is built to Timken dimensional and material standards for steering gear service.
