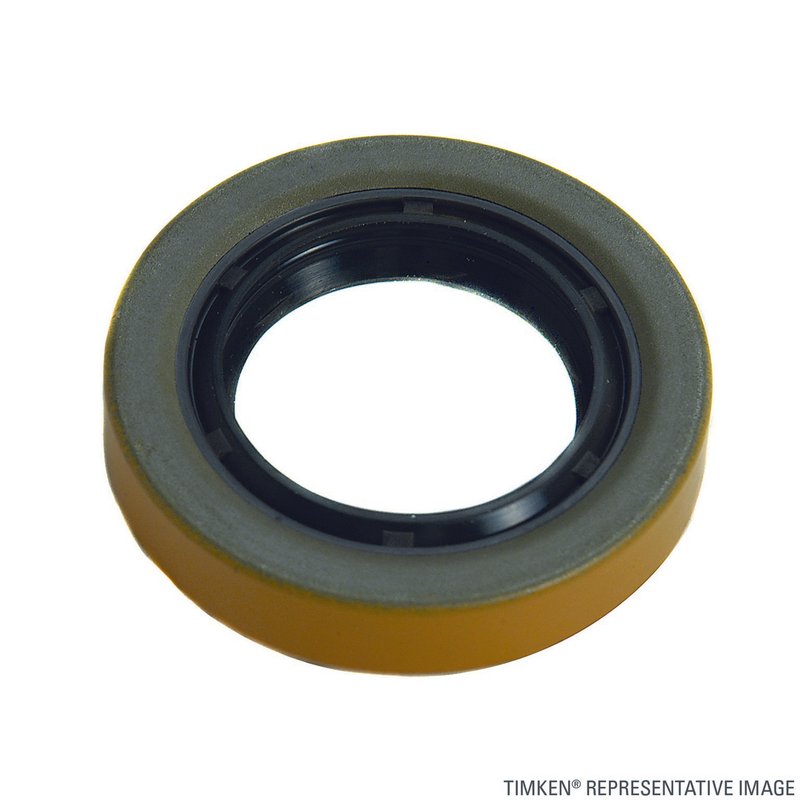

Timken 223005 Steering Gear Pitman Shaft Seal

Reliable Steering Gear Pitman Shaft Seal for Ford Bronco and Toyota Corolla

The Timken 223005 Steering Gear Pitman Shaft Seal is engineered to provide durable sealing performance for your Ford Bronco or Toyota Corolla. Crafted from S-nitrile material, this seal is designed to maintain optimal steering system integrity by preventing fluid leaks and contamination.

Key Features of Timken 223005 Steering Gear Pitman Shaft Seal

• Constructed from high-quality S-nitrile for enhanced resistance to heat, oil, and wear
• Precise outside diameter of 1.584 inches (40.23 mm) ensures a secure fit
• Shaft diameter measures 1.181 inches (30.00 mm) for compatibility with specific steering components
• Housing bore dimensions of 1.575 inches (40.00 mm) provide accurate sealing surface
• Seal width of 0.276 inches (7.00 mm) balances durability and compact design

Detailed Product Description

The Timken 223005 Steering Gear Pitman Shaft Seal is designed to meet the exacting standards required for steering systems in Ford Bronco and Toyota Corolla vehicles. Made from S-nitrile, a synthetic rubber known for its excellent resistance to petroleum-based fluids and temperature extremes, this seal helps maintain the integrity of the steering gear by preventing leaks and ingress of contaminants. The precise dimensions, including an outside diameter of 1.584 inches and a shaft diameter of 1.181 inches, ensure a proper fit within the steering assembly. Additionally, the housing bore and width measurements contribute to a reliable seal that supports smooth steering operation and longevity of the steering components.

Common Applications and Issues Addressed

• Prevents steering fluid leaks that can lead to reduced steering performance
• Protects steering gear components from dirt and debris contamination
• Helps maintain consistent steering response and control
• Reduces wear on steering shaft and housing by maintaining proper lubrication
• Addresses seal degradation caused by heat and exposure to automotive fluids

Installation Notes and Tips

When installing the Timken 223005 Steering Gear Pitman Shaft Seal, ensure the steering gear housing bore is clean and free of debris. Use appropriate tools to avoid damaging the seal during installation. Verify the seal orientation matches the original part to maintain proper sealing function. It is recommended to inspect related steering components for wear or damage during replacement to ensure overall system reliability.

Quality Assurance and Warranty

Timken manufactures the 223005 Steering Gear Pitman Shaft Seal to meet industry standards for durability and performance. The use of S-nitrile material provides resistance to common automotive fluids and temperature variations. While specific warranty details are not provided, Timken products are generally backed by quality control processes to ensure consistent product reliability.
