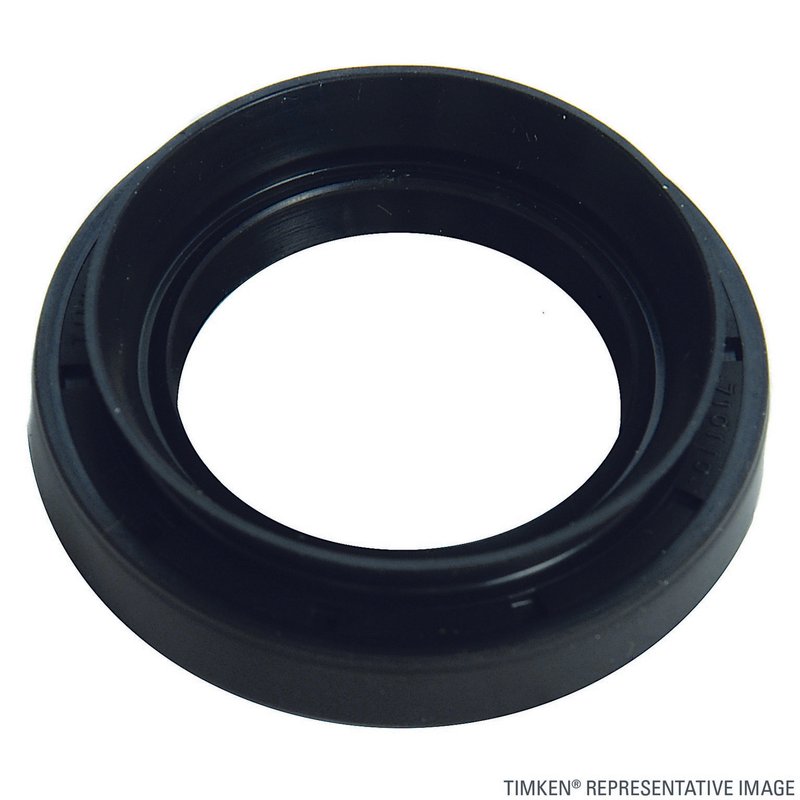

Timken 223580 Manual Transmission Output Shaft Seal - Left

Reliable Manual Transmission Output Shaft Seal for Honda Accord and Civic

The Timken 223580 manual transmission output shaft seal is engineered to provide precise sealing performance for Honda Accord and Civic models. Designed with durable S-nitrile material and a clockwise helix type, this seal ensures effective protection against leaks and contamination.

Key Features of Timken 223580 Output Shaft Seal

• Outside diameter: 2.683 inches (68.16 mm)
• Shaft diameter: 1.378 inches (35.00 mm)
• Housing bore: 2.677 inches (68.00 mm)
• Width: 0.354 inches (9.00 mm)
• Helix type: Clockwise (CW) for optimal sealing
• Material: S-nitrile for enhanced resistance to heat and wear

Detailed Description of the Timken 223580 Seal

This manual transmission output shaft seal from Timken is specifically designed to fit Honda Accord and Civic vehicles, providing a precise fit with its carefully measured dimensions. The seal’s outside diameter of approximately 2.683 inches and shaft diameter of 1.378 inches ensure compatibility with the transmission output shaft, while the housing bore and width measurements support a secure installation. The clockwise helix design helps direct fluid back into the transmission, reducing leakage and extending component life. Constructed from S-nitrile material, the seal offers durability against heat, oil, and mechanical wear, making it suitable for demanding transmission environments.

Common Applications and Issues Addressed

• Prevents transmission fluid leaks from the output shaft area
• Protects transmission internals from dirt and contaminants
• Reduces risk of premature transmission wear due to fluid loss
• Maintains proper lubrication within manual transmission systems
• Helps avoid costly transmission repairs related to seal failure

Installation Notes and Tips

• Ensure the transmission output shaft and housing bore are clean and free of debris before installation
• Use appropriate tools to avoid damaging the seal during installation
• Verify the helix direction matches the original seal (clockwise) for proper function
• Apply a light coat of transmission fluid to the seal lip to ease installation
• Check for proper seating and alignment to prevent leaks

Quality Assurance and Warranty Information

Timken manufactures the 223580 output shaft seal to meet strict quality standards, ensuring reliable performance in Honda Accord and Civic manual transmissions. The use of S-nitrile material and precise engineering supports long service life. While specific warranty details may vary, Timken products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
