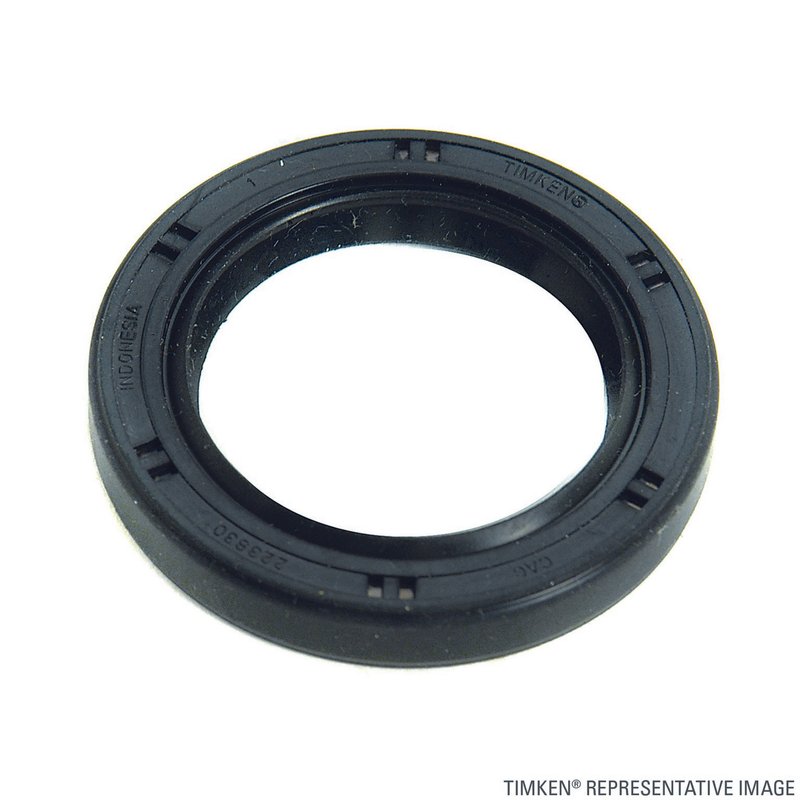

Timken 223601 Engine Crankshaft Seal - Front

Overview of Timken 223601 Engine Crankshaft Seal

The Timken 223601 engine crankshaft seal is designed to provide reliable sealing performance for various Volvo models. Engineered with durable S-nitrile material, this seal helps maintain engine integrity by preventing oil leaks around the crankshaft.

• Constructed from high-quality S-nitrile material for enhanced resistance to heat and oil
• Outside diameter measures 1.859 inches (47.22 mm) ensuring precise fit
• Shaft diameter of 1.417 inches (36.00 mm) compatible with specific Volvo crankshafts
• Housing bore dimensions of 1.850 inches (47.00 mm) for secure installation
• Width options of 0.276 inches and 7.00 mm for accurate sealing depth

Technical Details and Specifications

The Timken 223601 crankshaft seal is manufactured with S-nitrile, a synthetic rubber known for its excellent resistance to petroleum-based oils and high temperatures. The seal’s outside diameter of 1.859 inches (47.22 mm) and housing bore of 1.850 inches (47.00 mm) ensure a tight fit within the engine housing. The shaft diameter of 1.417 inches (36.00 mm) matches the crankshaft size on compatible Volvo vehicles, including the 850, C70, S70, S80, S90, V70, and V90 models. The dual width measurements (0.276 inches and 7.00 mm) correspond to the seal’s cross-sectional thickness, providing a secure barrier against oil leakage.

Compatible Volvo Models and Applications

This engine crankshaft seal is compatible with a range of Volvo vehicles, specifically the 850, C70, S70, S80, S90, V70, and V90 models. It is designed to replace worn or damaged seals that can cause oil leaks and engine performance issues. The Timken 223601 part number ensures you receive the correct seal for these Volvo applications.

• Prevents oil leaks around the crankshaft area
• Reduces risk of engine contamination from external debris
• Maintains proper oil pressure within the engine
• Helps avoid premature engine wear due to oil loss
• Addresses common seal failure issues in Volvo 850 and S70 engines

Installation Notes and Tips

When installing the Timken 223601 crankshaft seal, ensure the crankshaft and housing bore are clean and free of debris. Use appropriate tools to press the seal evenly into the housing bore without damaging the sealing lip. Lubricate the seal lip lightly with clean engine oil before installation to reduce initial wear. Verify the seal is seated flush and aligned properly to prevent leaks.

Quality Assurance and Warranty

Timken manufactures the 223601 crankshaft seal to meet strict quality standards, ensuring durability and reliable performance in demanding engine environments. The use of S-nitrile material provides resistance to heat and oil degradation. While specific warranty details may vary, Timken products typically come with a limited warranty against manufacturing defects, providing confidence in the product’s longevity and function.
