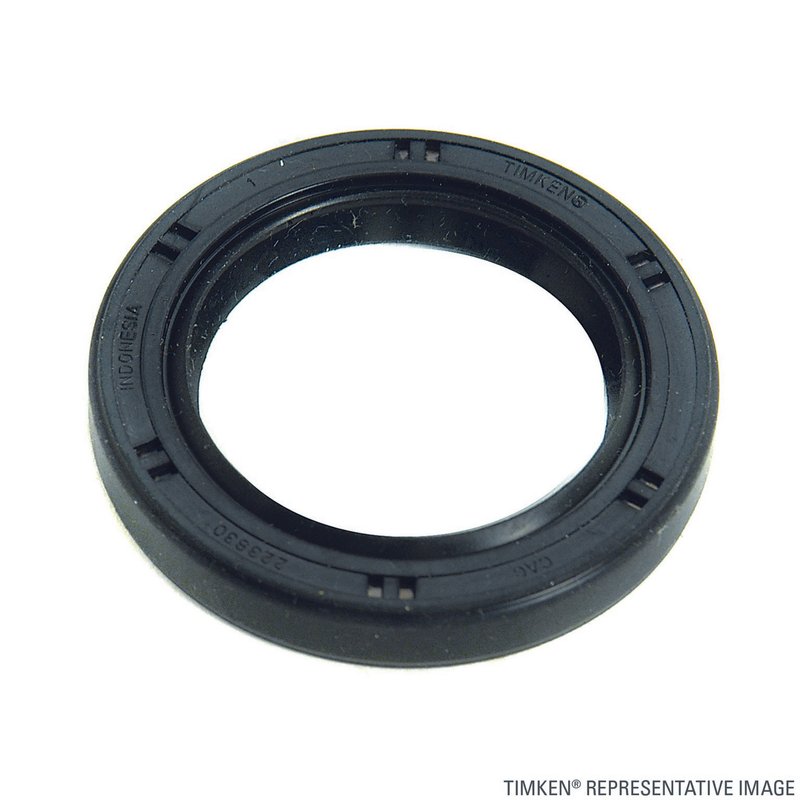

Timken 223843 Transfer Case Output Shaft Seal - Front Outer, Outer or Rear

OE Quality 60-Day Returns

Timken 223843 Transfer Case Output Shaft Seal - Front Outer, Outer or Rear

Brand	Timken 223843
Position	Front Outer
Fits	Suzuki, Audi, Honda, and Toyota · 85 vehicles

Precision sealing design. Helps prevent lubricant escape and keeps contaminants out.

Reinforced outer case. Helps resist installation damage and adds durability.

S-Nitrile material. Offers reliable sealing performance with heat-resistant construction.

Cross-references Remy 14739, Remy 14740 and Timken 223843 for the same application. See all 5.

$21.77Free shipping

In stock · usually ships same day before 1pm CST

Step 1 — Confirm fitment

Free return shipping if it doesn't fit when you check fitment here first.

Confirm position

Select your vehicle to confirm fitment

Verify this part fits before purchasing — free returns if it doesn't

Step 2 — Quantity

Free shipping to the continental U.S.

Free returns within 60 days if it doesn't fit when fitment is verified.

Not what you need? See all Transfer Case Output Shaft Seal options

Transfer Case Output Shaft Seal for Reliable Sealing

Timken 223843 is a transfer case output shaft seal built for precise lubricant control at the shaft interface. It is made from S-Nitrile and uses a reinforced outer case, ribbed inner diameter, and contamination-exclusion features to support a secure seal in demanding driveline service.

Key Features

S-Nitrile construction for sealing performance in transfer case applications
Reinforced outer case helps resist installation damage and improve durability
Ribbed rubber inner diameter seals minor spindle imperfections and supports positive seating
Internal contamination exclusion system helps block debris that can lead to leakage
Vent holes promote lubricant flow around the seal lip to reduce heat build-up
Dimensions: 2.373 in. outside diameter, 2.362 in. housing bore, 1.496 in. shaft diameter, 0.394 in. width

Detailed Description

Timken 223843 is a transfer case output shaft seal designed for vehicles that need dependable sealing at the output shaft. The seal’s S-Nitrile material, reinforced outer case, and ribbed sealing edge work together to maintain contact at the shaft while helping reduce lubricant loss and contamination entry. This makes it a practical replacement for transfer case service on applications such as Suzuki Samurai, Audi 100 Quattro, Audi 90, Audi 80 Quattro, Honda Civic, and Toyota rear-drive models including Celica, Corolla, Cressida, Supra, and Starlet. This part cross-references 14746 and 563520 for the same application.

What It Helps Fix

Transfer case fluid seepage at the output shaft
Contamination entering the seal area
Heat-related seal wear from poor lubricant circulation
Leakage caused by minor shaft surface imperfections
Seal damage during installation

Installation Notes and Tips

Confirm shaft diameter, housing bore, and width before installation. Clean the sealing surface and inspect the shaft for grooves, corrosion, or burrs that can affect sealing. Press the seal in squarely to avoid distortion of the outer case and sealing lip. Verify transfer case fluid level after service and check for leaks during the first drive cycle. Fits 1987-1995 Suzuki Samurai, Outer; Fits 1986-1995 Suzuki Samurai, Front Outer; Fits 1989-1994 Audi 100 Quattro, Rear; Fits 1993-1994 Audi 90, Rear; Fits 1990-1991 Audi 90, Rear; Fits 1988 Audi 90, Rear; Fits 1993-1994 Audi 90 Quattro, Rear; Fits 1988-1991 Audi 90 Quattro, Rear; Fits 1988-1992 Audi 80, Rear; Fits 1988-1992 Audi 80 Quattro, Rear; Fits 1989-1991 Audi 100, Rear; Fits 1989-1991 Audi 200, Rear; Fits 1989-1991 Audi 200 Quattro, Rear; Fits 1985-1991 Honda Civic, Rear; Fits 1983-1988 Toyota Celica, Rear, 7.3 in. R.G.; Fits 1983-1988 Toyota Corolla, Rear, 7.3 in. R.G.; Fits 1983-1988 Toyota Cressida, Rear, 7.3 in. R.G.; Fits 1986-1988 Toyota Supra, Rear, 7.3 in. R.G.; Fits 1983-1984 Toyota Starlet, Rear, 7.3 in. R.G.

Quality Assurance

Timken manufactures sealing components with precision-focused designs intended to support consistent fit and service life in drivetrain applications. Part number 223843 is built to match the listed dimensions and vehicle applications for accurate replacement selection.

This part fits 85 vehicles

Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

Year	Make	Model	Body Type	Drive Type	Position	Notes
1995	Suzuki	Samurai	—	4WD	Outer	—
1995	Suzuki	Samurai	—	4WD	Front Outer	—
1994	Audi	100 Quattro	—	—	Rear	—
1994	Audi	90	—	—	Rear	—
1994	Audi	90 Quattro	—	—	Rear	—
1994	Suzuki	Samurai	—	4WD	Outer	—
1994	Suzuki	Samurai	—	4WD	Front Outer	—
1993	Audi	100 Quattro	—	—	Rear	—
1993	Audi	90	—	—	Rear	—
1993	Audi	90 Quattro	—	—	Rear	—
1993	Suzuki	Samurai	—	4WD	Outer	—
1993	Suzuki	Samurai	—	4WD	Front Outer	—
1992	Audi	100 Quattro	—	—	Rear	—
1992	Audi	80	—	—	Rear	—
1992	Audi	80 Quattro	—	—	Rear	—
1992	Suzuki	Samurai	—	4WD	Outer	—
1992	Suzuki	Samurai	—	4WD	Front Outer	—
1991	Audi	100	—	—	Rear	—
1991	Audi	100 Quattro	—	—	Rear	—
1991	Audi	200	—	—	Rear	—
1991	Audi	200 Quattro	—	—	Rear	—
1991	Audi	80	—	—	Rear	—
1991	Audi	80 Quattro	—	—	Rear	—
1991	Audi	90	—	—	Rear	—
1991	Audi	90 Quattro	—	—	Rear	—
1991	Honda	Civic	Wagon	4WD	Rear	—
1991	Suzuki	Samurai	—	4WD	Outer	—
1991	Suzuki	Samurai	—	4WD	Front Outer	—
1990	Audi	100	—	—	Rear	—
1990	Audi	100 Quattro	—	—	Rear	—
1990	Audi	200	—	—	Rear	—
1990	Audi	200 Quattro	—	—	Rear	—
1990	Audi	80	—	—	Rear	—
1990	Audi	80 Quattro	—	—	Rear	—
1990	Audi	90	—	—	Rear	—
1990	Audi	90 Quattro	—	—	Rear	—
1990	Honda	Civic	Wagon	4WD	Rear	—
1990	Suzuki	Samurai	—	4WD	Outer	—
1990	Suzuki	Samurai	—	4WD	Front Outer	—
1989	Audi	100	—	—	Rear	—
1989	Audi	100 Quattro	—	—	Rear	—
1989	Audi	200	—	—	Rear	—
1989	Audi	200 Quattro	—	—	Rear	—
1989	Audi	80	—	—	Rear	—
1989	Audi	80 Quattro	—	—	Rear	—
1989	Audi	90 Quattro	—	—	Rear	—
1989	Honda	Civic	Wagon	4WD	Rear	—
1989	Suzuki	Samurai	—	4WD	Outer	—
1989	Suzuki	Samurai	—	4WD	Front Outer	—
1988	Audi	80	—	—	Rear	—
1988	Audi	80 Quattro	—	—	Rear	—
1988	Audi	90	—	—	Rear	—
1988	Audi	90 Quattro	—	—	Rear	—
1988	Honda	Civic	Wagon	4WD	Rear	—
1988	Suzuki	Samurai	—	4WD	Outer	—
1988	Suzuki	Samurai	—	4WD	Front Outer	—
1988	Toyota	Celica	—	—	Rear	7.3 in. R.G.
1988	Toyota	Corolla	—	—	Rear	7.3 in. R.G.
1988	Toyota	Cressida	—	—	Rear	7.3 in. R.G.
1988	Toyota	Supra	—	—	Rear	7.3 in. R.G.
1987	Honda	Civic	Wagon	4WD	Rear	—
1987	Suzuki	Samurai	—	4WD	Outer	—
1987	Suzuki	Samurai	—	4WD	Front Outer	—
1987	Toyota	Celica	—	—	Rear	7.3 in. R.G.
1987	Toyota	Corolla	—	—	Rear	7.3 in. R.G.
1987	Toyota	Cressida	—	—	Rear	7.3 in. R.G.
1987	Toyota	Supra	—	—	Rear	7.3 in. R.G.
1986	Honda	Civic	Wagon	4WD	Rear	—
1986	Suzuki	Samurai	—	4WD	Front Outer	—
1986	Toyota	Celica	—	—	Rear	7.3 in. R.G.
1986	Toyota	Corolla	—	—	Rear	7.3 in. R.G.
1986	Toyota	Cressida	—	—	Rear	7.3 in. R.G.
1986	Toyota	Supra	—	—	Rear	7.3 in. R.G.
1985	Honda	Civic	Wagon	4WD	Rear	—
1985	Toyota	Celica	—	—	Rear	7.3 in. R.G.
1985	Toyota	Corolla	—	—	Rear	7.3 in. R.G.
1985	Toyota	Cressida	—	—	Rear	7.3 in. R.G.
1984	Toyota	Celica	—	—	Rear	7.3 in. R.G.
1984	Toyota	Corolla	—	—	Rear	7.3 in. R.G.
1984	Toyota	Cressida	—	—	Rear	7.3 in. R.G.
1984	Toyota	Starlet	—	—	Rear	7.3 in. R.G.
1983	Toyota	Celica	—	—	Rear	7.3 in. R.G.
1983	Toyota	Corolla	—	—	Rear	7.3 in. R.G.
1983	Toyota	Cressida	—	—	Rear	7.3 in. R.G.
1983	Toyota	Starlet	—	—	Rear	7.3 in. R.G.
No rows match your filter.

Directly replaces or cross-references 5 part numbers

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Remy — 14739Remy — 14740Timken — 22384314746563520
