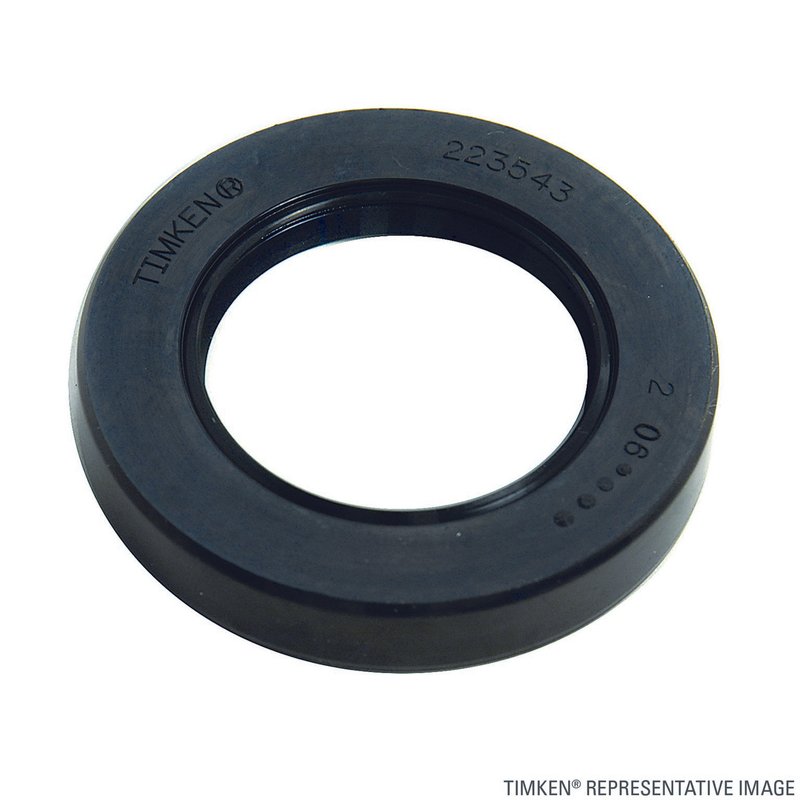

Timken 224205 Engine Camshaft Seal

Reliable Engine Camshaft Seal for Chevrolet, GMC, Isuzu, and Toyota

The Timken 224205 engine camshaft seal is designed to provide a precise and durable sealing solution for various vehicle models including Chevrolet S10, GMC S15, Isuzu Trooper, and Toyota 4Runner. Crafted from N-polyacrylate material, this camshaft seal ensures effective oil retention and protection against contaminants.

• Material: N-polyacrylate for enhanced durability and resistance
• Outside Diameter: 2.178 inches (55.33 mm)
• Shaft Diameter: 1.654 inches (42.00 mm)
• Housing Bore: 2.165 inches (55.00 mm)
• Width: 0.315 inches (8.00 mm)
• Helix Type: Clockwise (CW) for proper installation orientation

Technical Details and Specifications

The Timken 224205 camshaft seal features a carefully engineered design to maintain a tight seal around the camshaft, preventing oil leaks and contamination. Its N-polyacrylate construction offers excellent resistance to heat, oil, and wear, making it suitable for demanding engine environments. The seal’s dimensions, including an outside diameter of 2.178 inches and a shaft diameter of 1.654 inches, are optimized for compatibility with specific engine housings. The clockwise helix type ensures correct installation alignment, contributing to the seal’s effectiveness and longevity.

Compatible Vehicles and Applications

This engine camshaft seal is compatible with a range of vehicles, including:

• Chevrolet S10 and S10 Blazer
• GMC S15 and T100
• Isuzu LUV and Pickup
• Toyota 4Runner and Trooper

Use the Timken 224205 seal to address common engine sealing issues and maintain optimal engine performance.

Common Issues Addressed by Timken 224205 Camshaft Seal

• Prevents oil leaks around the camshaft area
• Reduces contamination from dirt and debris entering the engine
• Minimizes wear on camshaft bearings by maintaining proper lubrication
• Helps maintain engine oil pressure and efficiency
• Prevents premature engine component failure due to seal degradation

Installation Notes and Tips

Ensure the camshaft and housing bore are clean and free of debris before installation. Verify the clockwise helix orientation for proper seal placement. Use appropriate tools to avoid damaging the seal during installation. Lubricate the seal lip lightly with engine oil to facilitate smooth installation and initial operation. Confirm dimensions match the engine specifications to ensure a proper fit.

Quality Assurance and Warranty

Timken manufactures the 224205 camshaft seal to meet strict quality standards, ensuring reliable performance in demanding engine conditions. The use of N-polyacrylate material provides durability and resistance to heat and oil exposure. While specific warranty details may vary, Timken products typically come with a limited warranty against manufacturing defects, providing confidence in the product’s longevity and function.
