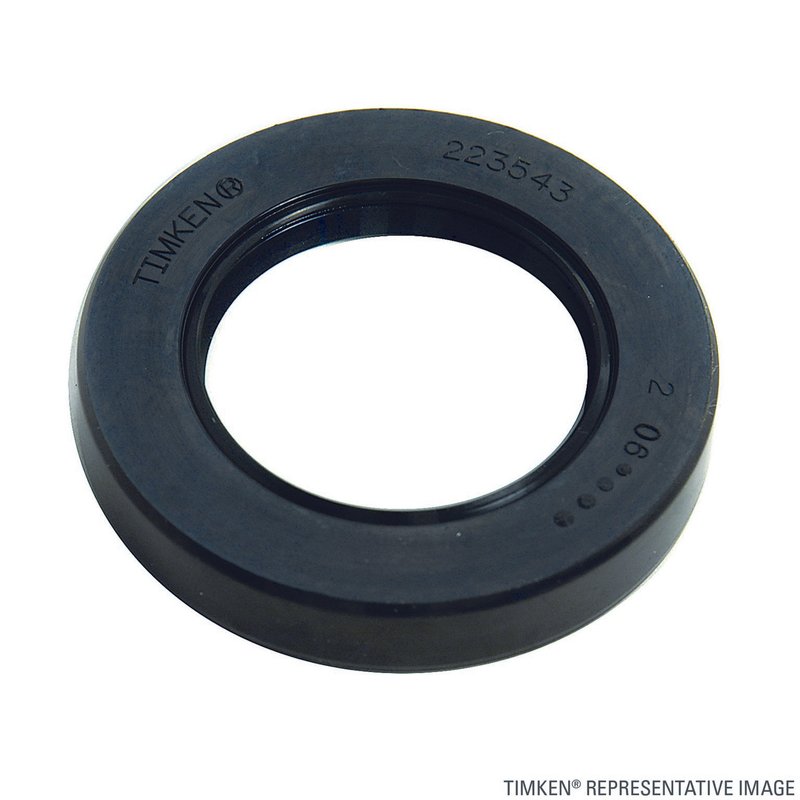

Timken 224464 Automatic Transmission Extension Housing Seal

Automatic Transmission Extension Housing Seal for Nissan and Infiniti

Timken 224464 is an automatic transmission extension housing seal built to retain lubricant at the transmission tail housing while helping block dirt and debris from entering the assembly. It is a direct-fit sealing component for a wide range of Nissan and Infiniti rear-wheel-drive and truck applications, including Nissan Frontier, Nissan Titan, and Infiniti G37 models.

Key Features

• Precision sealing design helps reduce lubricant escape at the extension housing
• Reinforced outer case helps resist installation damage and improve durability
• Ribbed rubber inner diameter helps seal minor spindle imperfections and promote seating
• Internal contamination exclusion system helps limit debris intrusion that can lead to leakage
• Vent holes allow lubricant flow around the seal lip to help manage heat buildup
• N-Polyacrylate sealing material for transmission service conditions
• Counter-clockwise helix type
• Outside diameter: 2.452 in. (62.28 mm); shaft diameter: 1.732 in. (44.00 mm); housing bore: 2.441 in. (62.00 mm); width: 0.394 in. (10.00 mm)

Detailed Description

Timken 224464 is engineered for the automatic transmission extension housing where consistent sealing is critical to keeping fluid inside the transmission and contaminants outside. The seal’s reinforced case supports installation, while the ribbed inner diameter helps maintain contact on shafts with minor surface variation. Its vented design also helps circulate lubricant around the lip area to reduce heat concentration during operation. This part cross-references National 224464 for the same application.

Compatible With select Nissan and Infiniti vehicles, including Fits 2009-2019 Nissan 370Z, N/A; Fits 1998-2019 Nissan Frontier, N/A; Fits 2004-2015 Nissan TITAN, N/A; Fits 2016-2019 Nissan TITAN XD, N/A; and Fits 2008-2013 Infiniti G37, N/A. Timken 224464 is also used across additional applications such as Nissan Armada, Pathfinder, Xterra, and Infiniti QX56, QX80, and QX50 platforms.

What This Seal Helps Address

• Transmission fluid seepage at the extension housing
• Contamination entering the tail housing area
• Seal wear caused by heat buildup around the lip
• Leakage related to minor shaft surface imperfections
• Damage from a weak or distorted original seal case

Installation Notes and Tips

Confirm shaft diameter, housing bore, width, and helix direction before installation. Clean the housing bore and shaft surface thoroughly, and inspect for scoring, burrs, or corrosion that could affect sealing. Use proper seal installation tools to keep the case square during press-in and avoid deforming the sealing lip. Verify the application against the vehicle’s transmission configuration before service.

Quality Assurance

Timken oil and grease seals are built with precision sealing designs and contamination-exclusion features intended for dependable transmission service. Part number 224464 is manufactured to meet the dimensional and material requirements listed above for the specified Nissan and Infiniti applications.
