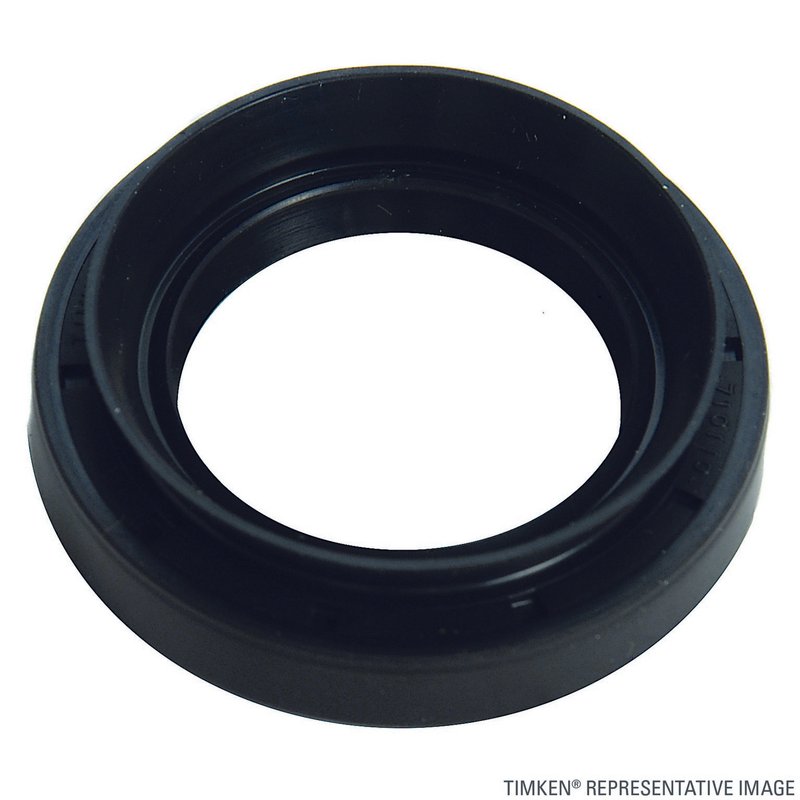

Timken 224815 Transfer Case Output Shaft Seal - Front
OE Quality 60-Day Returns
Timken

Timken 224815 Transfer Case Output Shaft Seal - Front

Brand Timken 224815
Position Front
Fits Toyota · 50 vehicles

Precision sealing design. Helps keep lubricant in and contaminants out.

Reinforced outer case. Helps resist installation damage and adds durability.

N-Polyacrylate material. Provides reliable sealing performance in demanding conditions.

Cross-references Timken 224815 and Walker Exhaust 18987 for the same application. See all 2.

$23.77Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Order total $23.77
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Transfer Case Output Shaft Seal options

Timken Transfer Case Output Shaft Seal 224815

Timken 224815 is a transfer case output shaft seal built for front-position applications on select Toyota trucks and SUVs. It uses a precision sealing design to retain lubricant, block contaminants, and support stable sealing at the output shaft.

Key Features

  • Outside diameter: 2.925 in. / 74.30 mm
  • Shaft diameter: 1.890 in. / 48.01 mm
  • Housing bore: 2.913 in. / 73.99 mm
  • Width: 0.394 in. / 10.01 mm
  • N-Polyacrylate sealing material for transfer case service
  • Reinforced outer case helps resist installation damage
  • Ribbed rubber inner diameter supports sealing on minor spindle imperfections
  • Internal contamination exclusion system helps block debris entry
  • Vent holes promote lubricant flow around the seal lip to reduce heat build-up

Detailed Description

This Timken transfer case output shaft seal is engineered for front transfer case sealing where lubricant retention and contamination control are critical. The reinforced outer case improves durability during installation, while the ribbed rubber inner diameter helps maintain a positive seal on shafts with minor surface variation. Timken 224815 is a direct-fit service part for select Toyota 4Runner, Land Cruiser, RAV4, T100, Tacoma, Pickup, and Van applications with HF2A, HF2AV, and H55F - 2nd Design configurations. This part cross-references Walker Exhaust 18987 for the same application.

Vehicle Fitment

  • Fits 1990-1997 Toyota 4Runner, front, HF2A, HF2AV
  • Fits 1990-1997 Toyota Land Cruiser, front, HF2A, HF2AV
  • Fits 1996-1997 Toyota RAV4, front, HF2A, HF2AV
  • Fits 1993-1997 Toyota T100, front, HF2A, HF2AV
  • Fits 1995-1997 Toyota Tacoma, front, HF2A, HF2AV
  • Fits 1990-1995 Toyota Pickup, front, HF2A, HF2AV
  • Fits 1985-1989 Toyota 4Runner, front, H55F - 2nd Design
  • Fits 1985-1989 Toyota Land Cruiser, front, H55F - 2nd Design
  • Fits 1985-1989 Toyota Pickup, front, H55F - 2nd Design
  • Fits 1987-1989 Toyota Van, front, H55F - 2nd Design

Installation Notes and Tips

Verify shaft diameter, housing bore, and width before installation. Clean the sealing surface thoroughly and inspect the output shaft for wear, scoring, or contamination that could affect seal life. Proper alignment during installation helps prevent lip damage and ensures the seal seats evenly in the housing.

Quality Assurance

Timken oil and grease seals are built with precision sealing geometry and contamination control features to support reliable transfer case service. The design focuses on lubricant retention, debris exclusion, and durability in demanding driveline applications.

This part fits 50 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
1997Toyota4Runner4WDFrontHF2A, HF2AV
1997ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1997ToyotaRAV4AWDFrontHF2A, HF2AV
1997ToyotaT1004WDFrontHF2A, HF2AV
1997ToyotaTacoma4WDFrontHF2A, HF2AV
1996Toyota4Runner4WDFrontHF2A, HF2AV
1996ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1996ToyotaRAV4AWDFrontHF2A, HF2AV
1996ToyotaT1004WDFrontHF2A, HF2AV
1996ToyotaTacoma4WDFrontHF2A, HF2AV
1995Toyota4Runner4WDFrontHF2A, HF2AV
1995ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1995ToyotaPickup4WDFrontHF2A, HF2AV
1995ToyotaT1004WDFrontHF2A, HF2AV
1995ToyotaTacoma4WDFrontHF2A, HF2AV
1994Toyota4Runner4WDFrontHF2A, HF2AV
1994ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1994ToyotaPickup4WDFrontHF2A, HF2AV
1994ToyotaT1004WDFrontHF2A, HF2AV
1993Toyota4Runner4WDFrontHF2A, HF2AV
1993ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1993ToyotaPickup4WDFrontHF2A, HF2AV
1993ToyotaT1004WDFrontHF2A, HF2AV
1992Toyota4Runner4WDFrontHF2A, HF2AV
1992ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1992ToyotaPickup4WDFrontHF2A, HF2AV
1991Toyota4Runner4WDFrontHF2A, HF2AV
1991ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1991ToyotaPickup4WDFrontHF2A, HF2AV
1990Toyota4Runner4WDFrontHF2A, HF2AV
1990ToyotaLand Cruiser4WDFrontHF2A, HF2AV
1990ToyotaPickup4WDFrontHF2A, HF2AV
1989Toyota4Runner4WDFrontH55F - 2nd Design
1989ToyotaLand Cruiser4WDFrontH55F - 2nd Design
1989ToyotaPickup4WDFrontH55F - 2nd Design
1989ToyotaVan4WDFrontH55F - 2nd Design
1988Toyota4Runner4WDFrontH55F - 2nd Design
1988ToyotaLand Cruiser4WDFrontH55F - 2nd Design
1988ToyotaPickup4WDFrontH55F - 2nd Design
1988ToyotaVan4WDFrontH55F - 2nd Design
1987Toyota4Runner4WDFrontH55F - 2nd Design
1987ToyotaLand Cruiser4WDFrontH55F - 2nd Design
1987ToyotaPickup4WDFrontH55F - 2nd Design
1987ToyotaVan4WDFrontH55F - 2nd Design
1986Toyota4Runner4WDFrontH55F - 2nd Design
1986ToyotaLand Cruiser4WDFrontH55F - 2nd Design
1986ToyotaPickup4WDFrontH55F - 2nd Design
1985Toyota4Runner4WDFrontH55F - 2nd Design
1985ToyotaLand Cruiser4WDFrontH55F - 2nd Design
1985ToyotaPickup4WDFrontH55F - 2nd Design
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Timken — 224815Walker Exhaust — 18987
