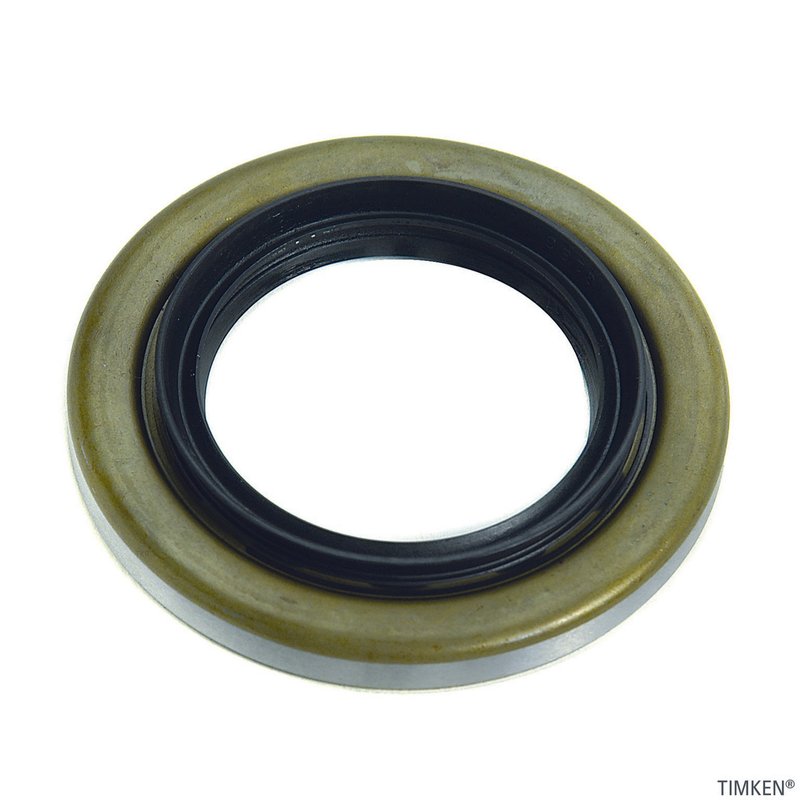

Timken 225082 Wheel Seal - Front Inner

Timken 225082 Wheel Seal Overview

Timken 225082 is a wheel seal built for front inner axle locations on select Hyundai Sonata and Mitsubishi Galant applications. It uses an S-Nitrile sealing material and a precision sealing design to help retain lubricant while keeping road debris out of the hub area.

For buyers searching for a front inner wheel seal for 1989-1994 Hyundai Sonata or 1985-1987 Mitsubishi Galant, this Timken 225082 seal matches the listed dimensions and fitment.

Key Features

• S-Nitrile construction for sealing performance in driveline and axle service
• Outside diameter: 3.235 in. / 82.18 mm
• Housing bore: 3.228 in. / 82.00 mm
• Shaft diameter: 1.969 in. / 50.00 mm
• Width: 0.315 in. / 8.00 mm
• Reinforced outer case helps resist installation damage
• Ribbed rubber inner diameter helps seal minor spindle imperfections and seat securely
• Internal contamination exclusion system helps block debris entry
• Vent holes promote lubricant flow around the seal lip to reduce heat buildup

Detailed Description

Timken 225082 is a wheel seal for driveline and axle sealing service where lubricant retention and contamination control are critical. The seal’s reinforced outer case supports installation durability, while the ribbed inner diameter helps maintain contact on the spindle surface. Its vented design allows lubricant circulation around the lip, helping manage heat at the sealing interface. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible With 1989-1994 Hyundai Sonata, front inner, and 1985-1987 Mitsubishi Galant, front inner. If you are replacing a leaking front inner wheel seal on a Hyundai Sonata or Mitsubishi Galant, Timken 225082 provides the listed OE-style dimensions for a direct service match.

What It Helps Solve

• Gear oil or grease leakage at the wheel end
• Contamination entering the hub or spindle area
• Seal wear caused by heat buildup
• Poor sealing on minor spindle surface imperfections
• Installation damage to the outer case during service

Installation Notes and Tips

Verify shaft diameter, housing bore, outside diameter, and width before installation. Clean the spindle, hub bore, and sealing surface thoroughly, and inspect for scoring or wear that could affect seal life. Press the seal in evenly to avoid distorting the case or lip. Confirm the front inner position before ordering, especially on 1989-1994 Hyundai Sonata and 1985-1987 Mitsubishi Galant applications.

Quality Assurance

Timken is known for precision-engineered sealing components used in axle and driveline service. Part number 225082 is built to the listed dimensions and material specification for consistent fitment on the vehicles shown.
