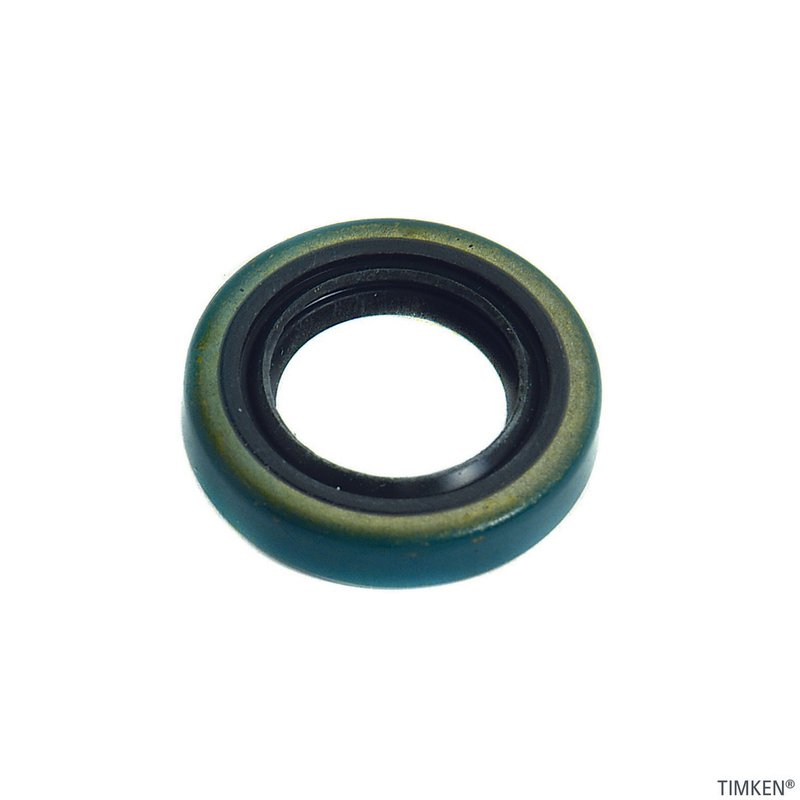

Timken 2287 Transfer Case Selector Shaft Seal - view 1
Timken 2287 Transfer Case Selector Shaft Seal - view 2
Timken 2287 Transfer Case Selector Shaft Seal - view 3
Timken 2287 Transfer Case Selector Shaft Seal - view 4
Timken 2287 Transfer Case Selector Shaft Seal - view 5
Timken 2287 Transfer Case Selector Shaft Seal - view 6
Part #: 2287

Timken 2287 Transfer Case Selector Shaft Seal

⚙️ 146 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$14.79Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Chevrolet, Dodge, Ford, and GMC, Bronco, F-100, F-150, F-250, F-350, K20, K20 Suburban, K2500, K2500 Suburban, K30, K3500, Ramcharger, V30, V3500, W100, W150, W250, W300, and W350
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Transfer Case Selector Shaft Seal options

Reliable Transfer Case Selector Shaft Seal for Chevrolet and Ford

The Timken 2287 Transfer Case Selector Shaft Seal is engineered to provide a precise fit and durable sealing solution for transfer cases in Chevrolet, Dodge, Ford, and GMC trucks and SUVs. Designed with S-nitrile material, this seal ensures resistance to oil and heat, maintaining transfer case integrity under demanding conditions.

  • Constructed from durable S-nitrile material for enhanced oil and heat resistance
  • Outside diameter measures 1.254 inches (31.85 mm) for accurate housing fit
  • Housing bore diameter of 1.250 inches (31.75 mm) ensures proper installation
  • Shaft diameter of 0.750 inches (19.05 mm) matches transfer case selector shafts
  • Seal width of 0.280 inches (7.11 mm) provides effective sealing depth
  • Seal type 274 designed specifically for transfer case selector shaft applications

Detailed Product Description

The Timken 2287 Transfer Case Selector Shaft Seal is manufactured to meet the precise specifications required for transfer case applications in various Chevrolet, Dodge, Ford, and GMC models, including Bronco, F-100, F-150, F-250, F-350, K20, K2500, K3500, Ramcharger, and W-series trucks. The seal’s S-nitrile composition offers excellent resistance to petroleum-based fluids and high temperatures, which are common in transfer case environments. With an outside diameter of 1.254 inches and a housing bore of 1.250 inches, this seal fits securely to prevent fluid leaks and contamination. The 0.750-inch shaft diameter and 0.280-inch width ensure a tight seal around the selector shaft, maintaining transfer case performance and longevity.

Common Applications and Problem Solving

  • Prevents transfer case fluid leaks around the selector shaft
  • Reduces contamination ingress that can cause premature transfer case wear
  • Maintains proper transfer case operation in Chevrolet Bronco and Ford F-series trucks
  • Addresses selector shaft seal failures in Dodge Ramcharger and GMC K-series vehicles
  • Helps avoid costly transfer case repairs due to seal degradation

Installation Notes and Tips

Ensure the transfer case selector shaft and housing bore are clean and free of debris before installation. Carefully align the Timken 2287 seal to avoid damage during press-in. Use appropriate tools to press the seal evenly into the housing bore without distortion. Verify shaft diameter compatibility with the 0.750-inch specification to ensure a proper seal. Follow vehicle-specific service manual instructions for transfer case disassembly and reassembly.

Quality Assurance and Warranty

Timken transfer case seals are manufactured to meet industry standards for durability and performance. The 2287 seal undergoes rigorous quality control to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Timken products are known for consistent quality in automotive sealing applications.

BrandTimken
Part Number2287
MaterialS-nitrile
Outside Diameter1.254
Outside Diameter31.85
Housing Bore1.250
Housing Bore31.75
Seal Type274
Shaft Diameter0.750
Shaft Diameter19.05
Width0.280
Width7.11

This part fits 146 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
1993DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1993DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1993DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1992DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1992DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1992DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1991DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1991DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1991DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990ChevroletK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990ChevroletV35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1990GMCV35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989ChevroletK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989ChevroletV35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1989GMCV35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988ChevroletK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988ChevroletV304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1988GMCV35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987ChevroletV304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987DodgeW1004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1987GMCV35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986DodgeW1004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986DodgeW2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1986GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1985ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1985DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1985DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1985DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1985GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1984ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1984DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1984DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1984DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1984GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1983ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1983DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1983DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1983DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1983GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1982ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1982DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1982DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1982DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1982GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1981ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1981DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1981DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1981DodgeW3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1981GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980ChevroletK204WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980DodgeW3004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980GMCK25004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980GMCK2500 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1980GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979ChevroletK204WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979DodgeW3004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979FordBronco4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979FordF-1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979FordF-2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979FordF-3504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979GMCK25004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979GMCK2500 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1979GMCK35004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978ChevroletK204WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978DodgeW3004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978FordBronco4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978FordF-1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1978FordF-2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977ChevroletK204WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977ChevroletK304WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977DodgeW1004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977DodgeW1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977DodgeW3004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977FordBronco4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977FordF-1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1977FordF-2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976ChevroletK204WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976DodgeW1004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976DodgeW3004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976FordBronco4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976FordF-1004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976FordF-1504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1976FordF-2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1975ChevroletK204WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1975ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1975DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1975DodgeW1004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1975DodgeW3004WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1975FordF-2504WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1974ChevroletK20 Suburban4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1974ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1974ChevroletK20 SuburbanAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1974DodgeRamcharger4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1974DodgeRamcharger4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1974DodgeRamchargerAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1973ChevroletK20 Suburban4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1973ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1973ChevroletK20 SuburbanAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1972ChevroletK20 Suburban4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1972ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1972ChevroletK20 SuburbanAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1971ChevroletK20 Suburban4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1971ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1971ChevroletK20 SuburbanAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1970ChevroletK20 Suburban4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1970ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1970ChevroletK20 SuburbanAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1969ChevroletK20 Suburban4 X 4N/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1969ChevroletK20 Suburban4WDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.
1969ChevroletK20 SuburbanAWDN/ACompatible with New Process 205 Transfer Case Input Shaft Bearing.

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

22877443

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
