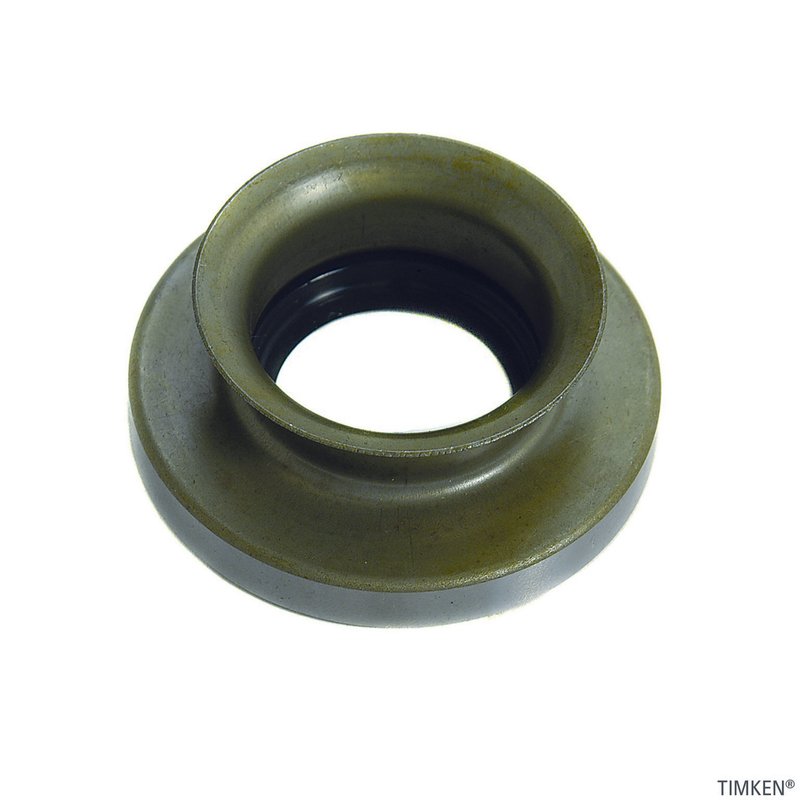

Timken 2300 Differential Seal - Front

Timken 2300 Differential Seal Overview

The Timken 2300 differential seal is engineered for reliable sealing performance in driveline applications. Designed with durable S-nitrile material, this seal is compatible with select Ford and Jeep models, including the Bronco, F-150, and J10.

• Constructed from high-quality S-nitrile for resistance to heat and wear
• Outside diameter measures 2.625 inches (66.67 mm) for precise fit
• Shaft diameter of 1.318 inches (33.48 mm) ensures proper sealing on axle shafts
• Housing bore dimension of 2.620 inches (66.55 mm) for accurate installation
• Width of 1.000 inch (25.40 mm) provides effective sealing surface

Technical Specifications and Compatibility

The Timken 2300 differential seal is specifically designed to fit the differential assemblies of Ford Bronco, Ford F-150, and Jeep J10 vehicles. Its S-nitrile construction offers excellent resistance to oil, grease, and temperature variations commonly encountered in driveline environments. The seal’s dimensions—2.625 inches outside diameter, 1.318 inches shaft diameter, and 1.000 inch width—ensure a secure fit within the housing bore of 2.620 inches, minimizing the risk of leaks and contamination.

Applications and Problem Solving

This differential seal is used to maintain the integrity of the axle assembly by preventing fluid leaks and keeping contaminants out. It addresses several common issues:

• Prevents differential fluid leaks that can lead to lubrication failure
• Protects internal components from dirt and debris intrusion
• Reduces wear on axle shafts by maintaining proper lubrication
• Helps maintain optimal differential performance and longevity
• Minimizes the risk of costly drivetrain repairs due to seal failure

Installation Notes and Tips

When installing the Timken 2300 differential seal, ensure the housing bore and shaft surfaces are clean and free of debris. Use appropriate tools to press the seal evenly into place without distortion. Verify the seal orientation matches the original part to maintain proper sealing function. Lubricate the seal lip with differential fluid before installation to reduce initial wear.

Quality Assurance and Warranty

Timken manufactures the 2300 differential seal to meet stringent quality standards for durability and performance. The use of S-nitrile material ensures resistance to common automotive fluids and temperature extremes. While specific warranty details may vary, Timken products typically come with a limited warranty against manufacturing defects, providing confidence in the product’s reliability for Ford Bronco, F-150, and Jeep J10 applications.
