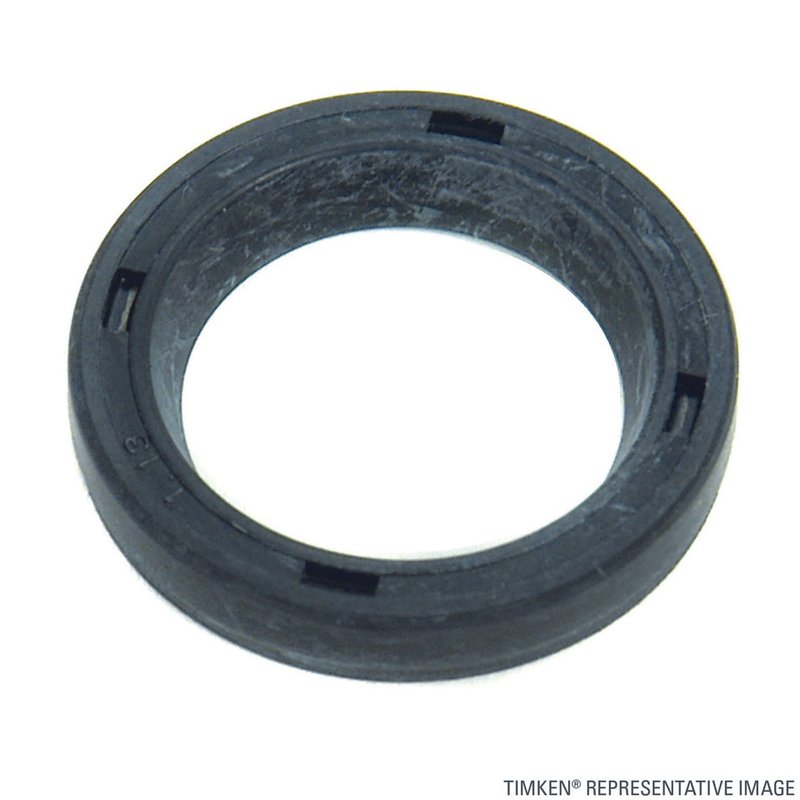

Timken 240698 Manual Transmission Overdrive Solenoid Seal

Reliable Manual Transmission Overdrive Solenoid Seal

The Timken 240698 manual transmission overdrive solenoid seal is engineered to provide a precise fit and durable sealing performance. Constructed from high-quality S-nitrile material, this seal is designed to maintain optimal transmission function and prevent fluid leaks in compatible vehicle models.

• Material: S-nitrile for enhanced resistance to heat and wear
• Outside Diameter: 0.635 inches (16.13 mm)
• Shaft Diameter: 0.312 inches (7.92 mm)
• Housing Bore: 0.625 inches (15.88 mm)
• Seal Width: 0.175 inches (4.45 mm)
• Seal Type: 24, designed for manual transmission overdrive solenoids

Detailed Product Description

The Timken 240698 seal is specifically designed to fit manual transmission overdrive solenoids, ensuring a tight and reliable seal between the shaft and housing bore. Its S-nitrile composition offers excellent resistance to transmission fluids, heat, and mechanical wear, which helps maintain the integrity of the transmission system. The precise dimensions, including a 0.635-inch outside diameter and 0.312-inch shaft diameter, allow for a secure fit that minimizes the risk of leaks and contamination. This seal is suitable for use in various manual transmission applications where these specifications match the vehicle requirements.

Common Applications and Issues Addressed

• Prevents transmission fluid leaks around the overdrive solenoid shaft
• Reduces wear caused by heat and friction in manual transmissions
• Maintains proper hydraulic pressure for overdrive engagement
• Helps avoid transmission slippage and shifting problems
• Protects internal transmission components from contamination

Installation Notes and Tips

When installing the Timken 240698 manual transmission overdrive solenoid seal, ensure the shaft and housing bore are clean and free of debris. Lubricate the seal lightly with compatible transmission fluid to ease installation and prevent damage. Use appropriate tools to press the seal evenly into place without distortion. Verify the seal dimensions match the vehicle’s specifications before installation to ensure compatibility.

Quality Assurance and Warranty

Timken manufactures the 240698 seal to meet strict quality standards, ensuring consistent performance and durability. The use of S-nitrile material provides reliable resistance to common transmission fluids and operating temperatures. While specific warranty details are not provided, Timken products typically adhere to industry standards for automotive sealing components.
