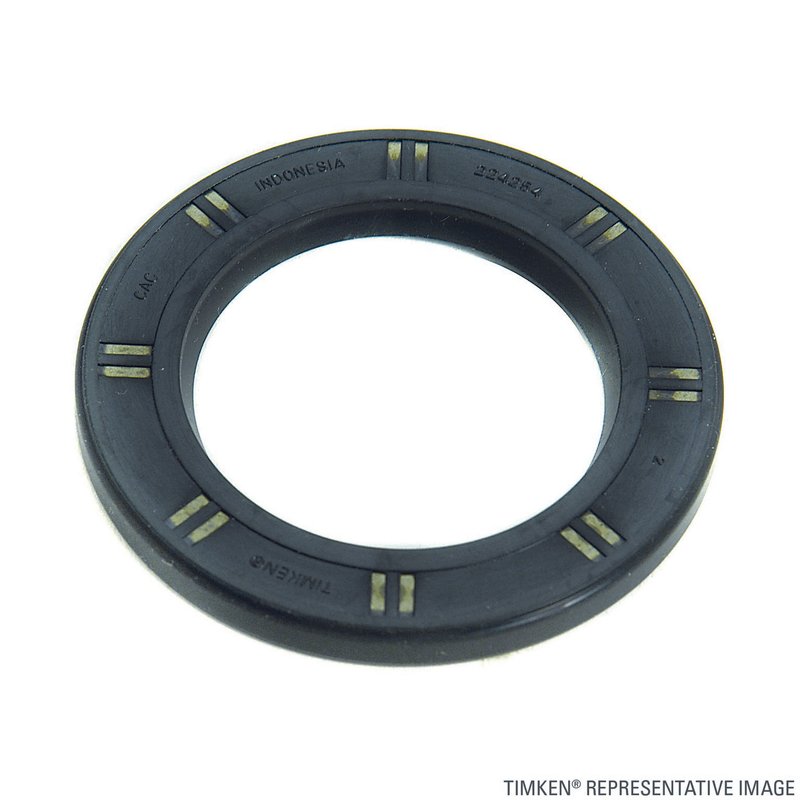

Timken 340151 Steering Gear Sector Shaft Seal

Timken Steering Gear Sector Shaft Seal Overview

The Timken 340151 Steering Gear Sector Shaft Seal is engineered for reliable sealing performance in Ford steering systems. Designed specifically for Ford E-Series Econoline vans and F-Series trucks, this seal helps maintain steering integrity by preventing fluid leaks and contamination.

• Constructed from durable S-nitrile material for resistance to heat and wear
• Precise dimensions: 1.567 inch (39.80 mm) outside diameter and 1.125 inch (28.57 mm) shaft diameter
• Seal width of 0.250 inch (6.35 mm) ensures a secure fit in the housing bore
• Seal type 34 design optimized for steering gear sector shaft applications
• Compatible with multiple Ford models including E-100, E-150, E-250, E-350 Econoline and F-100 through F-350 trucks, plus Thunderbird

Detailed Product Description

The Timken 340151 Steering Gear Sector Shaft Seal is manufactured from S-nitrile, a synthetic rubber known for its excellent resistance to petroleum-based fluids and high temperatures. This material choice ensures long-lasting performance in demanding steering gear environments. The seal’s outside diameter measures 1.567 inches (39.80 mm), matching the housing bore dimension of approximately 1.561 inches (39.65 mm) for a tight, leak-proof fit. The shaft diameter is 1.125 inches (28.57 mm), with a width of 0.250 inches (6.35 mm), providing a precise seal around the steering gear sector shaft to prevent fluid leakage and ingress of contaminants.

Compatible Ford Models and Applications

This steering gear sector shaft seal is compatible with a range of Ford vehicles, including:

• Ford E-100 Econoline and E-100 Econoline Club Wagon
• Ford E-150 Econoline and E-150 Econoline Club Wagon
• Ford E-250 Econoline and E-250 Econoline Club Wagon
• Ford E-350 Econoline and E-350 Econoline Club Wagon
• Ford F-100, F-150, F-250, and F-350 trucks
• Ford Thunderbird

Common Issues Addressed by the Timken 340151 Seal

• Prevents steering fluid leaks that can cause steering performance issues
• Protects steering gear components from dirt and debris contamination
• Reduces premature wear of steering gear sector shaft and housing
• Maintains hydraulic pressure within the steering system for consistent response
• Helps avoid costly repairs related to seal failure and fluid loss

Installation Notes and Tips

• Ensure the steering gear sector shaft and housing bore are clean and free of debris before installation
• Lubricate the seal lip with compatible steering fluid to ease installation and prevent damage
• Use proper tools to press the seal evenly into the housing bore without distortion
• Verify correct orientation of the seal to maintain proper sealing function
• Inspect the shaft for wear or damage and replace if necessary before installing the new seal

Quality Assurance and Warranty

Timken manufactures the 340151 Steering Gear Sector Shaft Seal to meet stringent quality standards, ensuring reliable sealing performance in demanding automotive steering applications. The use of S-nitrile material and precise manufacturing tolerances contribute to the seal’s durability and effectiveness. While specific warranty details may vary, Timken products typically come with a limited warranty against defects in material and workmanship. Consult Timken or authorized distributors for warranty terms applicable to this part.
