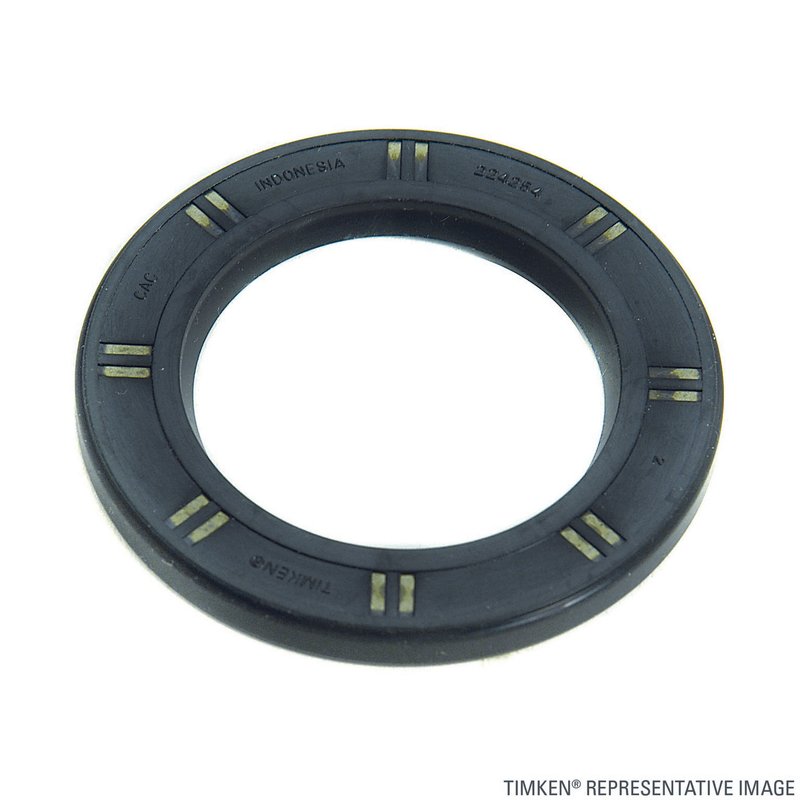

Timken 343185 Steering Gear Worm Shaft Seal

Timken 343185 Steering Gear Worm Shaft Seal

Timken 343185 is a steering gear worm shaft seal built for precise lubricant control in steering systems. It uses an S-Nitrile sealing material, a reinforced outer case, and a ribbed inner diameter to help seat securely on the shaft and maintain a dependable seal.

For drivers searching for a steering gear worm shaft seal for Ford F-150, Chevrolet Silverado, or Dodge Ram steering service, this Timken seal is engineered to help keep grease and oil where they belong while limiting contamination at the shaft interface.

Key Features

• S-Nitrile construction for sealing performance in steering gear applications
• Outside diameter: 1.131 in. / 28.73 mm
• Housing bore: 1.125 in. / 28.57 mm
• Shaft diameter: 0.750 in. / 19.05 mm
• Width: 0.156 in. / 3.96 mm
• Reinforced outer case helps reduce installation damage
• Ribbed rubber inner diameter helps seal minor spindle imperfections
• Internal contamination exclusion system helps block debris entry
• Vent holes promote lubricant flow around the seal lip to reduce heat buildup

Detailed Description

The Timken 343185 steering gear worm shaft seal is designed for steering gear sealing where lubricant retention and contamination control are critical. Its precision sealing profile helps maintain a stable seal at the worm shaft, while the reinforced case supports durability during installation and service. The ribbed inner diameter improves contact at the shaft surface, which is useful when the shaft has minor wear or surface variation. This part cross-references Bosch 7415 for the same application.

Use Timken 343185 when servicing steering gear assemblies on vehicles such as Ford F-150, Chevrolet Silverado, and Dodge Ram models that require a worm shaft seal with these dimensions. The seal’s vent holes also help circulate lubricant around the lip, supporting cooler operation in the sealing area.

What It Helps Fix

• Steering gear oil or grease leakage at the worm shaft
• Contamination entering the steering gear housing
• Seal wear caused by heat buildup around the lip
• Poor sealing on shafts with minor imperfections
• Damage during seal installation

Installation Notes and Tips

Confirm shaft diameter, housing bore, and seal width before installation. Clean the steering gear bore and shaft surface thoroughly, and inspect for scoring or excessive wear that could affect sealing. Install the seal squarely to avoid case distortion and ensure the lip seats evenly on the worm shaft. Verify the steering gear is properly lubricated before returning the vehicle to service.

Quality Assurance

Timken steering seals are built with precision sealing designs and durable materials for steering system service. Part number 343185 is engineered to meet the dimensional requirements listed above and is backed by Timken manufacturing standards.
