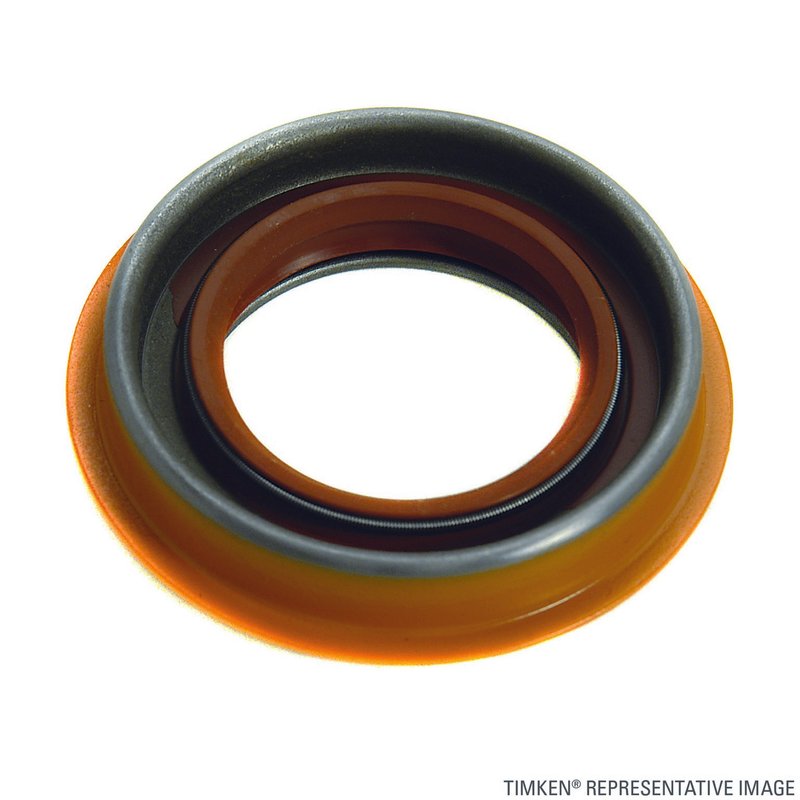

Timken 4614N Manual Transmission Output Shaft Seal - Right

Timken 4614N Manual Transmission Output Shaft Seal

Timken 4614N is a manual transmission output shaft seal built for Saturn applications that need reliable lubricant retention at the transmission output. It is engineered to help keep gear oil in place while limiting the entry of dirt and other contaminants.

Key Features

• Precision sealing design for manual transmission output shaft service
• Reinforced outer case to resist installation damage and improve durability
• Ribbed rubber inner diameter for sealing minor spindle imperfections and promoting positive seating
• Internal contamination exclusion system to help block debris that can lead to leakage
• Vent holes that allow lubricant flow around the seal lip to reduce heat buildup

Detailed Description

This Timken transmission seal is designed for Saturn SC, SC1, SC2, SL, SL1, SL2, SW1, and SW2 models with TAAT or TAMT configurations on the right side. It is a direct-fit sealing component for the manual transmission output shaft, and the Timken 4614N part number is commonly referenced for this application. This part cross-references Bosch 13688 for the same application.

What It Helps Address

• Transmission fluid seepage at the output shaft seal area
• Contamination entering the seal interface
• Seal wear caused by heat buildup around the lip
• Leakage related to minor shaft surface imperfections
• Damage during seal installation

Installation Notes and Tips

• Fits 1991-1999 Saturn SL, right, TAAT.
• Fits 1991-1999 Saturn SL, right, TAMT.
• Fits 1991-1999 Saturn SL1, right, TAAT.
• Fits 1991-1999 Saturn SL1, right, TAMT.
• Fits 1991-1999 Saturn SL2, right, TAAT.
• Fits 1991-1999 Saturn SL2, right, TAMT.
• Fits 1993-1999 Saturn SC1, right, TAAT.
• Fits 1993-1999 Saturn SC1, right, TAMT.
• Fits 1993-1999 Saturn SC2, right, TAAT.
• Fits 1993-1999 Saturn SC2, right, TAMT.
• Fits 1993-1999 Saturn SW1, right, TAAT.
• Fits 1993-1999 Saturn SW1, right, TAMT.
• Fits 1993-1999 Saturn SW2, right, TAAT.
• Fits 1993-1999 Saturn SW2, right, TAMT.
• Fits 1991-1992 Saturn SC, right, TAAT.
• Fits 1991-1992 Saturn SC, right, TAMT.

Quality Assurance

Timken oil and grease seals use reinforced construction and contamination-control features to support dependable sealing performance in transmission service.
