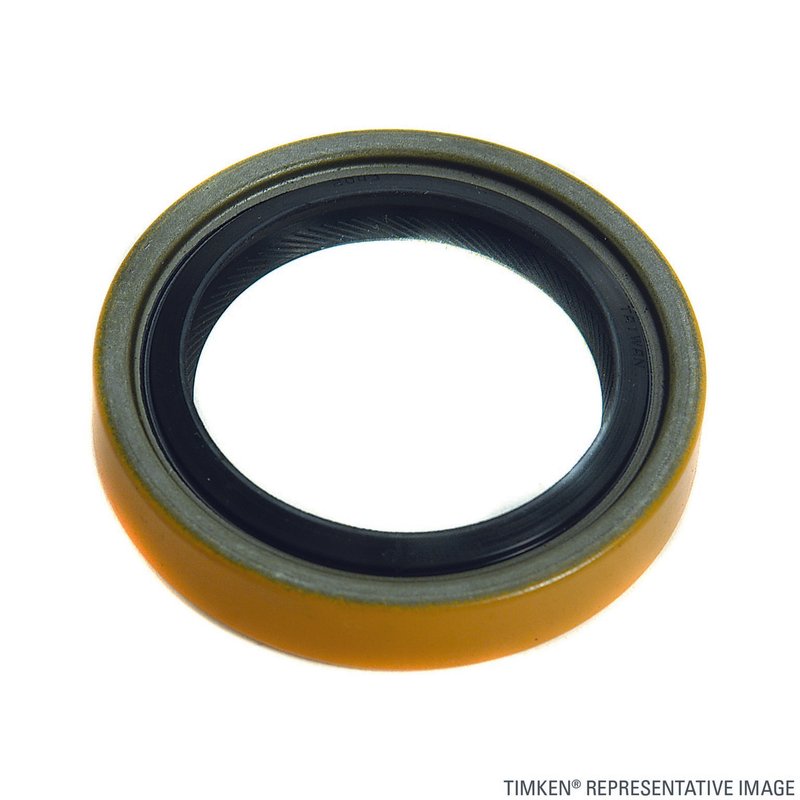

Timken 470009 Transfer Case Selector Shaft Seal

Timken 470009 Transfer Case Selector Shaft Seal

Timken 470009 is a transfer case selector shaft seal built to retain lubricant and block contaminants at the shaft interface. It is a direct-fit sealing component for select Jeep, Ford, and Chevrolet applications, including Jeep CJ5, Jeep CJ7, Ford Bronco, and Ford F-Series models with Spicer 18 or Spicer 21 transfer case configurations.

Key Features

• Precision sealing design helps keep oil and grease inside the transfer case
• Reinforced outer case resists installation damage and supports long-term durability
• Ribbed rubber inner diameter helps seal minor shaft imperfections and promotes positive seating
• Internal contamination exclusion system helps block debris that can lead to leakage
• Vent holes allow lubricant flow around the seal lip to reduce heat buildup
• Cross-references AMS Automotive 6904 for the same application

Detailed Description

This Timken transfer case selector shaft seal is engineered for vehicles that need dependable sealing at the selector shaft. The part number 470009 is used in transfer case sealing applications where lubricant retention and contamination control are critical, including 1966-1979 Jeep CJ5, 1976-1979 Jeep CJ7, 1966-1976 Ford Bronco, 1975-1976 Ford F-100, 1976 Ford F-150, 1969-1974 Ford E-100 Econoline, and 1969-1972 Chevrolet K20 Suburban. Timken 470009 is also listed for select Ford and Jeep driveline setups that use Spicer 18 or Spicer 21 components.

What It Helps Solve

• Transfer case fluid seepage at the selector shaft
• Contamination entering the sealing area
• Seal damage during installation
• Leakage caused by minor shaft wear or surface imperfections
• Heat-related seal deterioration from poor lubricant circulation

Installation Notes and Tips

Verify transfer case type and vehicle application before installation. Some listed applications note that a differential pinion race must be used with the differential pinion seal for proper installation; confirm the exact driveline configuration before service. Clean the shaft and bore thoroughly, and inspect for scoring or wear that could affect sealing performance. Use proper seal installation tools to avoid deforming the reinforced case.

Quality Assurance

Timken sealing products use precision-engineered designs focused on lubricant retention and contamination exclusion. The 470009 seal is built with a reinforced outer case and a ribbed inner diameter to support consistent sealing performance in transfer case service.
