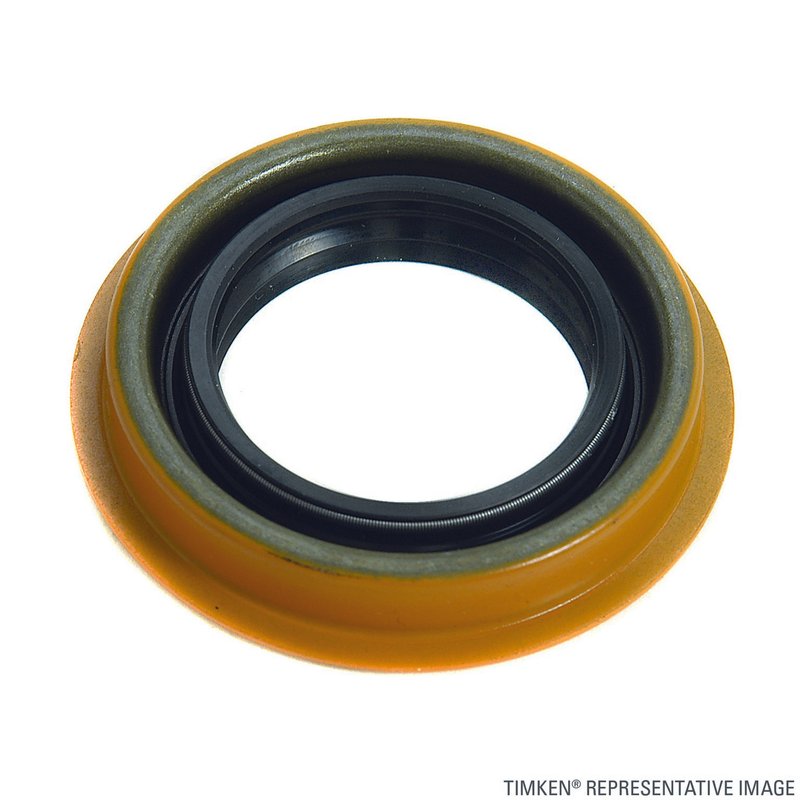

Timken 4813V Transfer Case Output Shaft Seal - Front

Transfer Case Output Shaft Seal for NP231/NP233

Timken 4813V is a transfer case output shaft seal built for front-position applications that need reliable lubricant retention and contamination control. It is a direct-fit option for a wide range of Jeep, Chevrolet, GMC, and Isuzu vehicles with New Process 231 or 233 transfer cases.

Use Timken 4813V when servicing a leaking transfer case output shaft on applications such as the Jeep Wrangler, Jeep TJ, Chevrolet Blazer, and GMC Jimmy. The seal design focuses on keeping fluid in the transfer case while helping block dirt and debris from entering the sealing area.

Key Features

• Precision sealing design helps retain transfer case lubricant and exclude contaminants
• Reinforced outer case helps resist installation damage and improve durability
• Ribbed rubber inner diameter helps seal minor spindle imperfections and promote seating
• Internal contamination exclusion system helps reduce debris intrusion that can lead to leakage
• Vent holes promote lubricant flow around the seal lip to help manage heat buildup
• Fits front transfer case output shaft applications for NP231 and NP233 units

Detailed Description

Timken 4813V is engineered for front transfer case output shaft service across multiple 4x4 platforms. It is used on 1997-2006 Jeep TJ and Wrangler models with New Process 231, plus 1995 Jeep Wrangler front applications with New Process 231. It also covers select Chevrolet Blazer, GMC Jimmy, Chevrolet S10, GMC Sonoma, Isuzu Rodeo, Rodeo Sport, Trooper, VehiCROSS, Amigo, and Hombre applications listed for NP231 or NP233 transfer cases. This part number, 4813V, is a practical replacement when the original seal is worn, hardened, or leaking.

This part cross-references 172286 and 182286 for the same application.

Common Problems This Seal Can Address

• Transfer case fluid leaking from the front output shaft area
• Contamination entering the seal area and affecting sealing performance
• Seal wear from age, heat, or shaft surface imperfections
• Fluid loss that can leave the transfer case low on lubricant
• Noise or driveline concerns related to low transfer case fluid

Installation Notes and Tips

• Confirm the transfer case model before installation; this seal is listed for New Process 231 and 233 applications.
• Inspect the output shaft surface for grooves, corrosion, or damage before installing the new seal.
• Clean the seal bore and surrounding area so the seal seats evenly.
• Apply appropriate lubricant to the seal lip during installation to reduce dry start-up wear.
• Install carefully to avoid distorting the reinforced outer case.

Quality Assurance

Timken manufactures oil and grease seals with precision sealing designs, reinforced construction, and contamination-control features for drivetrain service. Part number 4813V is built to meet the demands of transfer case sealing in front-output applications.
