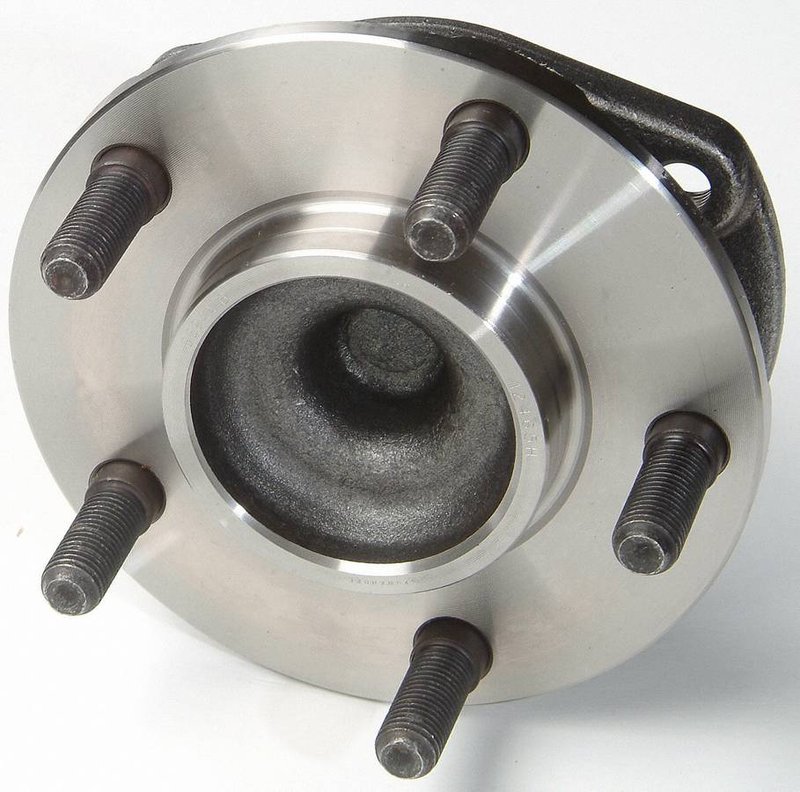

Timken 512170 Wheel Bearing and Hub Assembly - Rear

Timken Wheel Bearing and Hub Assembly Overview

The Timken 512170 wheel bearing and hub assembly is engineered for reliable performance in select Chrysler and Dodge vehicles. Designed specifically for non-driven wheels, this assembly ensures proper fit and function for models like the Caravan, Grand Caravan, Town & Country, and Voyager.

• Compatible with Chrysler Caravan, Grand Caravan, Town & Country, and Dodge Voyager
• Non-driven wheel bearing and hub assembly
• Five wheel studs with a 5x114.3 mm bolt circle diameter
• Flange diameter of 140 mm and flange offset of 48 mm
• Multiple pilot diameters for wheel, brake, and hub alignment

Technical Specifications and Features

This Timken wheel bearing and hub assembly (part number 512170) features a 5-stud wheel stud configuration with a bolt circle diameter of 114.3 mm (4.5 inches). The flange diameter measures 140 mm (5.512 inches) with a flange offset of 48 mm (1.890 inches), providing precise mounting and alignment. The assembly includes multiple pilot diameters to ensure proper fitment: wheel pilot diameters of 71.40 mm (2.811 inches), brake pilot diameters of 71.90 mm (2.831 inches), and a hub pilot diameter of 86.00 mm (3.386 inches). This assembly is designed for non-driven wheels, making it suitable for front or rear axle applications where the wheel is not powered.

Application and Vehicle Compatibility

The Timken 512170 wheel bearing and hub assembly is compatible with several Chrysler and Dodge minivan models, including the Caravan, Grand Caravan, Town & Country, and Voyager. This part is intended for use on non-driven wheels, ensuring proper fit and function for these specific vehicles. Using the correct hub assembly helps maintain wheel alignment, reduces vibration, and supports braking system performance.

• Eliminates wheel bearing noise and roughness
• Resolves wheel vibration and wobble issues
• Corrects uneven brake rotor wear caused by hub misalignment
• Prevents premature wheel stud or lug nut damage
• Restores proper wheel hub function after bearing failure

Installation Notes and Tips

When installing the Timken 512170 wheel bearing and hub assembly, ensure the vehicle is securely lifted and supported. Remove the wheel and brake components carefully to access the hub assembly. Verify the flange bolt hole quantity of four and the five wheel studs match the vehicle specifications. Use a calibrated torque wrench to tighten flange bolts to manufacturer-recommended specifications. Inspect the mating surfaces for cleanliness and damage before installation to ensure proper seating and alignment.

Quality Assurance and Warranty

Timken is a recognized manufacturer of driveline and axle components, known for precision engineering and durability. The 512170 wheel bearing and hub assembly undergoes rigorous quality control to meet OEM standards. While specific warranty details may vary, Timken typically offers coverage against defects in materials and workmanship. Always consult the product documentation or Timken directly for warranty terms applicable to this part.
