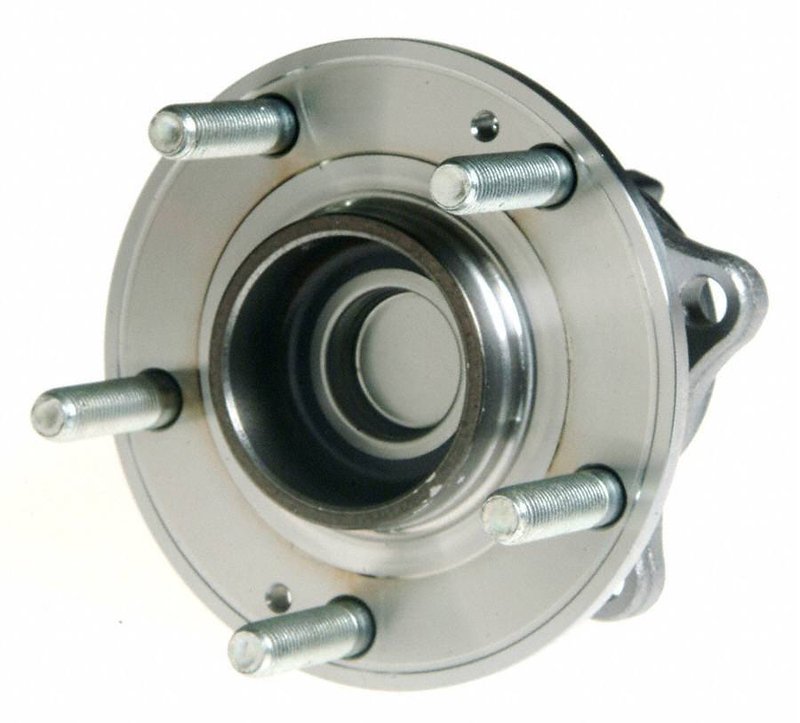

Timken 512326 Wheel Bearing and Hub Assembly - Rear

Timken Wheel Bearing and Hub Assembly Overview

The Timken 512326 wheel bearing and hub assembly is engineered for reliable performance in select Hyundai and Kia models. Designed as a non-driven hub, this assembly ensures precise fitment and durability for vehicles like the Hyundai Santa Fe and Kia Sorento.

• Flange bolt hole quantity: 4
• Wheel pilot diameter: 2.638 inches (67.00 mm)
• Brake pilot diameter: 2.717 inches (69.00 mm)
• Wheel stud quantity: 5
• Hub pilot diameter: 3.622 inches (92.00 mm)
• Flange offset: 2.102 inches (53.40 mm)
• Flange diameter: 5.472 inches (139.00 mm)
• Bolt circle diameter: 4.500 inches (114.30 mm)
• Drive type: Non-driven

Technical Specifications and Fitment Details

This Timken wheel bearing and hub assembly (part number 512326) is specifically designed for non-driven axle applications. The assembly features a 5-stud wheel configuration and a 4-hole flange bolt pattern, ensuring compatibility with the wheel and brake components of Hyundai Santa Fe, Santa Fe Sport, Santa Fe XL, Kia Sorento, and Veracruz models. The precise wheel pilot diameter of 2.638 inches and brake pilot diameter of 2.717 inches provide accurate centering for the wheel and brake rotor, reducing vibration and improving overall ride quality.

Applications and Problem Resolution

This wheel bearing and hub assembly is used to replace worn or damaged hubs in compatible Hyundai and Kia vehicles. It addresses several common issues:

• Eliminates wheel bearing noise and roughness
• Resolves wheel wobble or play
• Restores proper wheel alignment and balance
• Prevents premature brake rotor wear due to hub misalignment
• Ensures secure mounting of wheels with correct flange offset

Installation Notes and Tips

When installing the Timken 512326 hub assembly, ensure the vehicle is securely lifted and supported. Clean the mounting surface thoroughly to remove rust or debris. Torque flange bolts to manufacturer specifications to maintain proper flange offset and bolt circle diameter alignment. Verify the wheel pilot and brake pilot diameters match the vehicle’s specifications to avoid fitment issues. Use appropriate tools to avoid damaging the bearing during installation.

Quality Assurance and Warranty

Timken manufactures this wheel bearing and hub assembly to meet or exceed OEM standards for durability and performance. The part number 512326 undergoes rigorous quality control to ensure precise dimensions and reliable operation. Timken typically offers a limited warranty covering defects in materials and workmanship, providing confidence in the product’s longevity and fitment for Hyundai Santa Fe and Kia Sorento vehicles.
