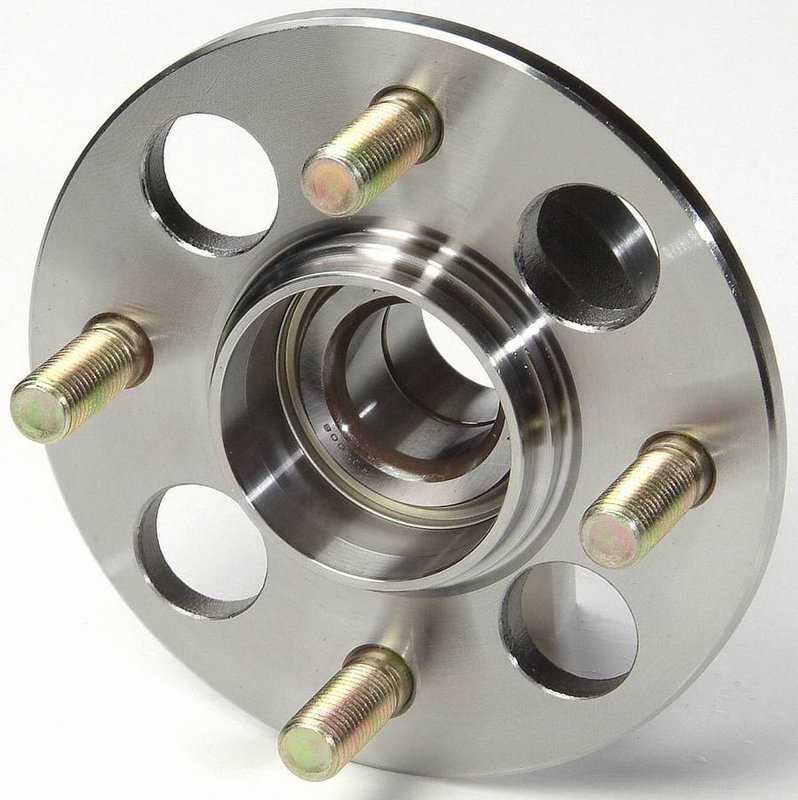

Timken 513035 Wheel Bearing and Hub Assembly - Rear

Timken 513035 Wheel Bearing and Hub Assembly Overview

The Timken 513035 wheel bearing and hub assembly is designed for reliable performance in select Acura and Honda vehicles. Engineered to meet precise specifications, this non-driven hub assembly supports smooth wheel rotation and proper alignment for models including the Civic, Civic del Sol, CRX, and EL.

• Compatible with Acura and Honda Civic, Civic del Sol, CRX, and EL models
• Non-driven wheel bearing and hub assembly with 4 wheel studs
• Wheel pilot diameter options: 2.205 inches (56.00 mm)
• Brake pilot diameter options: 2.402 inches (61.00 mm)
• Hub pilot diameter options: 2.461 inches (62.50 mm)
• Flange offset of 1.949 inches (49.50 mm) and flange diameter of 5.276 inches (134.00 mm)
• Bolt circle diameter of 3.937 inches (100.00 mm)

Technical Specifications and Features

The Timken 513035 assembly features a non-driven design with zero spline quantity, optimized for vehicles that require a precise fit without drive axle engagement. The assembly includes a 4-stud wheel configuration, ensuring compatibility with the specified Acura and Honda models. Key dimensions such as the wheel pilot diameter (2.205 inches), brake pilot diameter (2.402 inches), and hub pilot diameter (2.461 inches) provide accurate alignment for brake and wheel components. The flange offset and diameter measurements support proper mounting and load distribution, while the bolt circle diameter ensures secure attachment to the vehicle hub.

Applications and Problem Resolution

This wheel bearing and hub assembly is intended for use in the following vehicles:

• Acura and Honda Civic
• Honda Civic del Sol
• Honda CRX
• Honda EL

Common issues addressed by replacing the Timken 513035 include:

• Excessive wheel bearing noise or roughness
• Wheel hub vibration or wobble during driving
• Uneven brake rotor wear due to misalignment
• Loose or damaged wheel studs affecting wheel security
• Failure of the original hub assembly causing wheel instability

Installation Notes and Tips

Proper installation of the Timken 513035 wheel bearing and hub assembly is critical for vehicle safety and performance. Ensure the vehicle is securely lifted and supported before removal of the old hub. Clean the mounting surface thoroughly to remove rust and debris. Verify that the bolt circle diameter and flange offset match the vehicle specifications. Torque all fasteners to manufacturer-recommended values. It is advisable to inspect related components such as brake rotors and wheel studs during installation.

Quality Assurance and Warranty

Timken manufactures the 513035 wheel bearing and hub assembly to meet stringent quality standards, ensuring durability and reliable operation. The product undergoes rigorous testing to comply with OEM specifications for fit and function. While specific warranty details may vary, Timken typically offers coverage against defects in materials and workmanship. Consult Timken documentation or authorized distributors for exact warranty terms.
