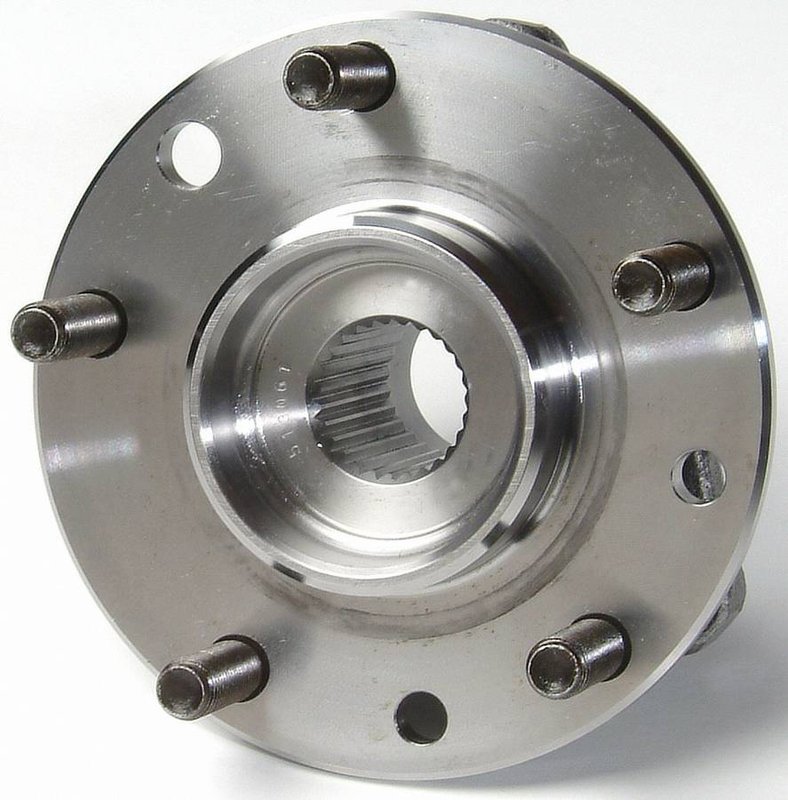

Timken 513061 Wheel Bearing and Hub Assembly - Front

Timken Wheel Bearing and Hub Assembly Overview

The Timken 513061 wheel bearing and hub assembly is engineered for reliable driveline performance in select Chevrolet, GMC, and Oldsmobile vehicles. Designed to meet precise specifications, this assembly supports smooth wheel rotation and vehicle stability.

• 27 spline quantity for secure drivetrain connection
• 3 flange bolt holes ensuring proper mounting
• 5 wheel studs for reliable wheel attachment
• Wheel pilot diameter of 2.760 inches (70.10 mm) for accurate wheel alignment
• Brake pilot diameter of 2.780 inches (70.60 mm) to support brake component fitment
• Hub pilot diameter of 3.209 inches (81.50 mm) for precise hub centering
• Driven type drive configuration
• Flange offset of 1.861 inches (47.28 mm) and flange diameter of 5.689 inches (144.50 mm)
• Bolt circle diameter of 4.750 inches (120.65 mm) for proper bolt pattern compatibility

Detailed Product Description

The Timken 513061 wheel bearing and hub assembly is designed specifically for driven axle applications in Chevrolet Blazer, GMC Jimmy, Oldsmobile Bravada, and related models such as the S10, S10 Blazer, S15 Jimmy, and Sonoma. This assembly features a 27-spline shaft interface that ensures a secure connection to the drivetrain, while the 3-bolt flange design provides a stable mounting surface. The 5-wheel stud configuration supports standard wheel attachment, maintaining proper wheel alignment and safety.

Precision in pilot diameters is critical for proper fitment: the wheel pilot diameter measures 2.760 inches (70.10 mm), and the brake pilot diameter is 2.780 inches (70.60 mm), both ensuring compatibility with wheel and brake components. The hub pilot diameter of 3.209 inches (81.50 mm) centers the hub accurately on the axle shaft. Flange offset and diameter measurements are engineered to maintain correct wheel positioning relative to the suspension and brake system.

Applications and Problem Solving

• Replaces worn or damaged wheel bearing and hub assemblies on Chevrolet Blazer and GMC Jimmy models
• Addresses wheel vibration or noise caused by bearing wear
• Corrects wheel alignment issues related to hub damage
• Resolves brake rotor misalignment due to hub pilot wear
• Improves driveline performance by restoring proper spline engagement

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use proper torque specifications for flange bolts and wheel studs
• Inspect axle shaft splines for wear prior to assembly
• Clean mounting surfaces to prevent contamination and ensure proper fit
• Verify wheel and brake pilot diameters match vehicle components

Quality Assurance and Warranty

Timken wheel bearing and hub assemblies are manufactured to meet OEM standards for durability and performance. The 513061 part number undergoes rigorous quality control to ensure precise fit and function. While specific warranty terms may vary, Timken products typically include coverage against defects in materials and workmanship, providing confidence in long-term reliability.
