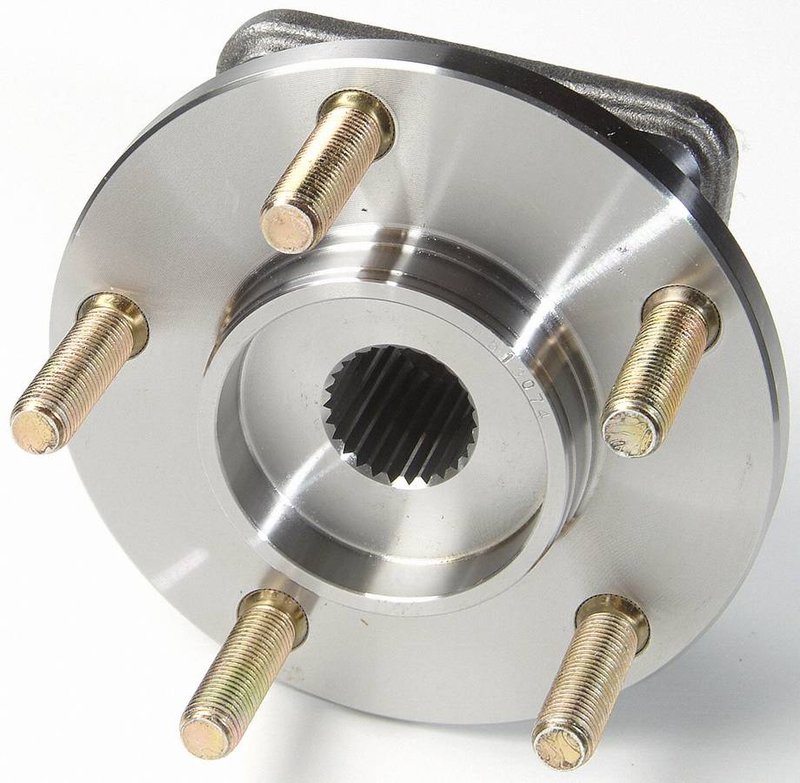

Timken 513074 Wheel Bearing and Hub Assembly - Front

Timken 513074 Wheel Bearing and Hub Assembly Overview

The Timken 513074 wheel bearing and hub assembly is engineered for reliable driveline performance in Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager, this assembly ensures precise fitment and durability.

• 26 spline quantity for secure axle engagement
• 4 flange bolt holes with a 140 mm flange diameter
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameter of 71.30 mm (2.807 inches) for accurate wheel alignment
• Brake pilot diameter of 73.32 mm (2.887 inches) to support brake component fitment
• Hub pilot diameter of 86.45 mm (3.404 inches) for proper hub seating
• Driven type assembly with a flange offset of 37.50 mm (1.470 inches)
• Bolt circle diameter of 114.30 mm (4.500 inches) matching OEM specifications

Detailed Product Description

The Timken 513074 wheel bearing and hub assembly is designed to meet the exact specifications required by Chrysler, Dodge, and Plymouth minivans including the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager. This assembly features a 26-spline driven design that ensures a secure connection to the axle shaft, supporting smooth power transfer. The 4-bolt flange with a 140 mm diameter and 37.50 mm flange offset provides a stable mounting surface for the wheel hub, while the 5 wheel studs accommodate standard wheel configurations. Precise pilot diameters for the wheel (71.30 mm) and brake components (73.32 mm) ensure proper alignment and fitment, reducing vibration and wear. The hub pilot diameter of 86.45 mm guarantees correct hub positioning on the axle, maintaining driveline integrity.

Common Applications and Problem Solving

• Replacement for worn or damaged wheel bearing and hub assemblies on Chrysler Caravan and Dodge Grand Caravan
• Addresses wheel vibration and noise caused by bearing wear
• Resolves issues with uneven tire wear due to hub misalignment
• Fixes ABS sensor errors related to faulty hub assemblies
• Restores proper wheel mounting and brake component alignment on Plymouth Voyager and Town & Country

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use proper torque specifications for flange bolts and wheel studs to avoid premature wear
• Inspect axle splines and clean mating surfaces prior to assembly
• Check brake components for wear during installation to ensure full system integrity
• Professional installation is recommended to maintain safety and performance standards

Quality Assurance and Warranty

Timken manufactures the 513074 wheel bearing and hub assembly to meet OEM standards for fit, form, and function. Each unit undergoes rigorous quality control to ensure durability and performance under normal operating conditions. While specific warranty details may vary, Timken products typically include a limited warranty covering defects in materials and workmanship. Consult product documentation or Timken directly for exact warranty terms.
