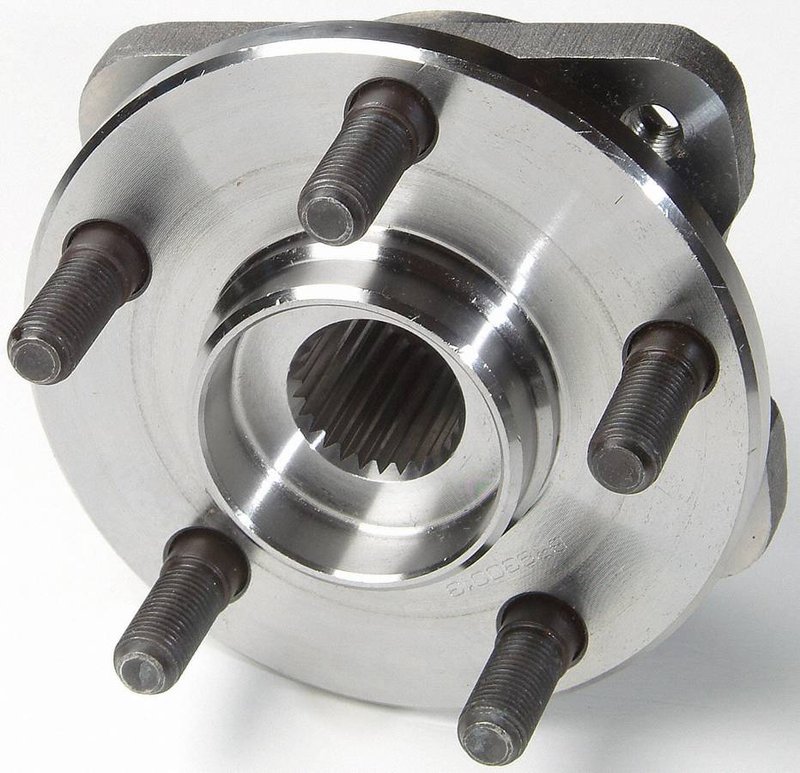

Timken 513075 Wheel Bearing and Hub Assembly - Front

Timken 513075 Wheel Bearing and Hub Assembly Overview

The Timken 513075 wheel bearing and hub assembly is engineered for reliable driveline performance in select Chrysler, Dodge, and Plymouth vehicles. Designed to meet OEM specifications, this assembly supports smooth wheel rotation and secure mounting for your vehicle's hub system.

• 26 spline quantity for precise drivetrain engagement
• 4 flange bolt holes ensuring secure attachment
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameter of 2.240 inches (56.90 mm) for accurate wheel alignment
• Brake pilot diameter of 2.399 inches (60.93 mm) to fit brake components properly
• Hub pilot diameter of 3.427 inches (87.05 mm) for correct hub positioning
• Driven type drive system compatibility
• Flange offset of 1.480 inches (37.60 mm) and flange diameter of 4.970 inches (126.25 mm)
• Bolt circle diameter of 3.937 inches (100.00 mm) matching OEM bolt patterns

Detailed Product Description

The Timken 513075 wheel bearing and hub assembly is specifically designed for compatibility with Chrysler, Dodge, and Plymouth models including the Acclaim, Caravan, Daytona, Dynasty, Grand Caravan, Grand Voyager, Imperial, LeBaron, New Yorker, Shadow, Spirit, Sundance, Town & Country, and Voyager. This assembly features a 26-spline driven design that ensures proper torque transfer and drivetrain engagement. The 4 flange bolt holes and 5 wheel studs provide a secure and stable mounting platform for the wheel, while the precise wheel pilot diameter of 2.240 inches (56.90 mm) and brake pilot diameter of 2.399 inches (60.93 mm) ensure proper alignment with brake components and wheels. The hub pilot diameter of 3.427 inches (87.05 mm) guarantees accurate hub positioning, reducing vibration and improving wheel balance. Flange offset and diameter measurements are engineered to match OEM specifications, facilitating straightforward installation and reliable performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or rough rotation
• Fixes wheel hub looseness or play affecting vehicle handling
• Resolves uneven tire wear due to hub misalignment
• Addresses ABS sensor issues related to hub assembly failure
• Eliminates vibration or wobbling during driving

Installation Notes and Tips

• Ensure vehicle compatibility with Chrysler, Dodge, and Plymouth models listed before installation
• Use proper torque specifications for flange bolts and wheel studs to avoid premature wear
• Inspect related components such as axle shafts and brake rotors during installation
• Clean mounting surfaces thoroughly to ensure proper fit and prevent contamination
• Verify spline engagement and hub pilot seating for secure assembly

Quality Assurance and Warranty

Timken manufactures the 513075 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and performance consistent with OEM requirements. This part is backed by Timken's limited warranty against defects in materials and workmanship, providing confidence in long-term reliability for your Chrysler, Dodge, or Plymouth vehicle.
