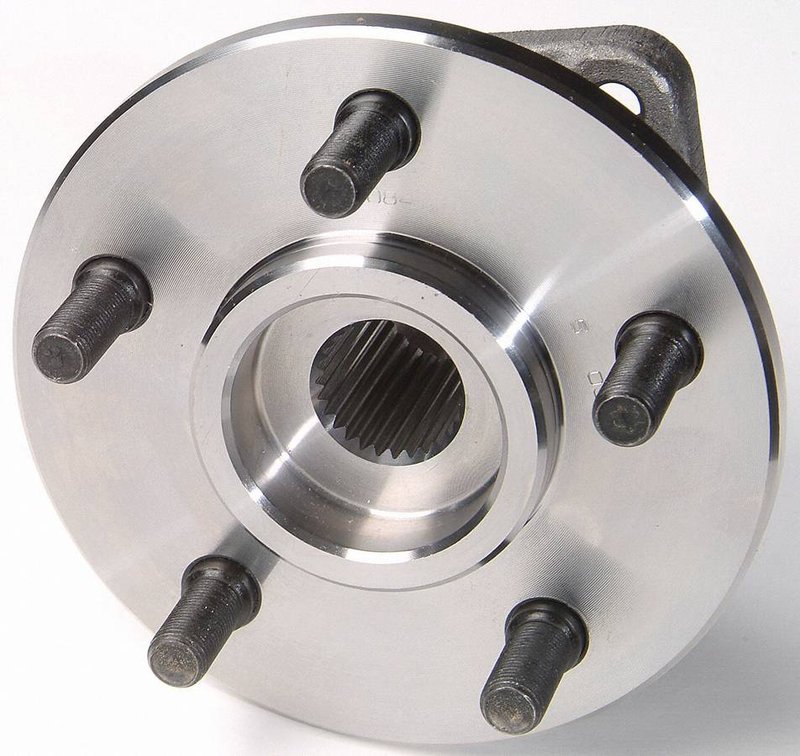

Timken 513084 Wheel Bearing and Hub Assembly - Front

Timken 513084 Wheel Bearing and Hub Assembly Overview

The Timken 513084 wheel bearing and hub assembly is engineered for reliable driveline performance in select Jeep models. Designed to meet precise specifications, this assembly supports smooth wheel rotation and vehicle stability for Jeep Cherokee, Comanche, Grand Cherokee, TJ, and Wrangler vehicles.

• 27 spline quantity for secure axle engagement
• 3 flange bolt holes ensuring proper mounting
• 5 wheel studs for reliable wheel attachment
• Wheel pilot diameter of 2.812 inches (71.42 mm) for accurate wheel alignment
• Brake pilot diameter of 2.830 inches (71.88 mm) for precise brake component fitment
• Hub pilot diameter of 3.942 inches (100.13 mm) for stable hub positioning
• Flange offset of 2.133 inches (54.18 mm) to maintain correct wheel offset
• Flange diameter of 6.062 inches (153.97 mm) for compatibility with OEM components
• Bolt circle diameter of 4.500 inches (114.30 mm) matching factory specifications
• Designed for driven axle applications

Technical Details and Compatibility

The Timken 513084 wheel bearing and hub assembly is specifically designed for driven axles, featuring a 27-spline shaft interface that ensures a secure connection to the axle shaft. The assembly includes a 3-hole flange bolt pattern and 5 wheel studs, providing a robust mounting solution for wheels on Jeep Cherokee, Comanche, Grand Cherokee, TJ, and Wrangler models. The precise wheel pilot diameter of 2.812 inches (71.42 mm) and brake pilot diameter of 2.830 inches (71.88 mm) facilitate accurate alignment of wheels and brake components, reducing vibration and improving overall drivability. Additionally, the hub pilot diameter of 3.942 inches (100.13 mm) ensures the hub seats correctly on the axle, maintaining proper wheel balance and safety.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or rough rotation
• Fixing wheel hub assemblies with excessive play or looseness
• Resolving vibration issues related to hub misalignment
• Addressing brake rotor runout caused by faulty hub pilots
• Restoring proper wheel mounting and stud integrity

Installation Notes and Tips

When installing the Timken 513084 wheel bearing and hub assembly, ensure the axle shaft spline count matches the 27-spline design. Verify the flange bolt hole pattern and wheel stud count correspond to the vehicle’s specifications. Proper torque settings should be applied to flange bolts and wheel studs to avoid premature wear or failure. It is recommended to inspect related components such as axle seals and brake hardware during installation to ensure comprehensive maintenance.

Quality Assurance and Warranty

Timken manufactures the 513084 wheel bearing and hub assembly to meet stringent quality standards, ensuring durability and performance under normal operating conditions. This part is backed by Timken’s limited warranty, covering defects in materials and workmanship. For detailed warranty terms, refer to Timken’s official documentation.
