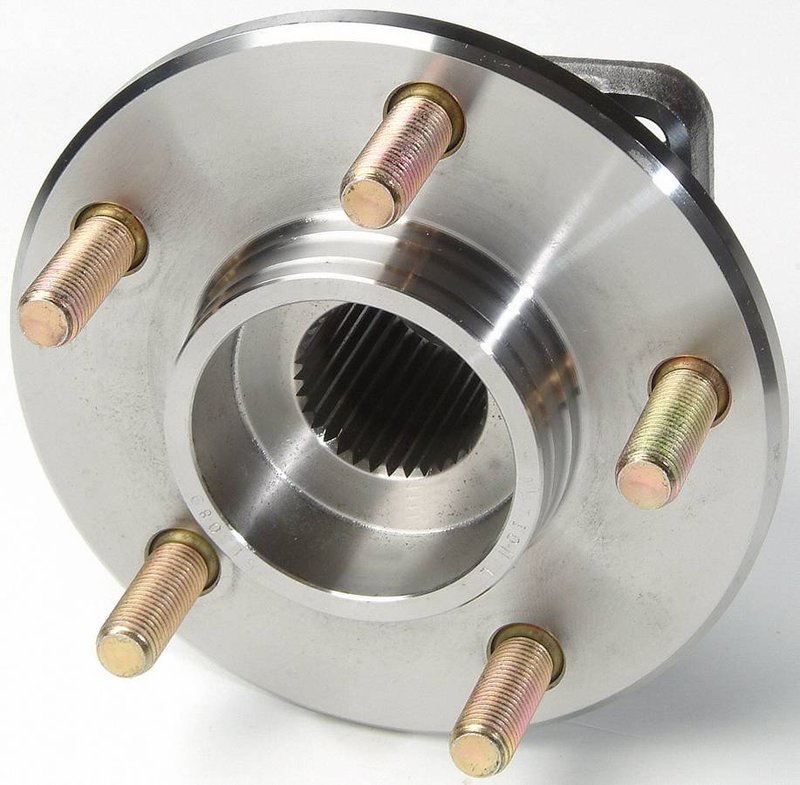

Timken 513089 Wheel Bearing and Hub Assembly - Front or Rear

Timken 513089 Wheel Bearing and Hub Assembly Overview

The Timken 513089 wheel bearing and hub assembly is engineered for reliable driveline performance in select Chrysler, Dodge, and Plymouth vehicles. Designed to meet precise specifications, this assembly supports smooth wheel rotation and vehicle stability for models like the 300M, Concorde, Intrepid, LHS, New Yorker, and Prowler.

• 33 spline quantity for secure axle engagement
• 3 flange bolt holes ensuring proper mounting
• 5 wheel studs for reliable wheel attachment
• Wheel pilot diameters of 2.812 inches (71.42 mm) for accurate wheel centering
• Brake pilot diameters of 2.885 inches (73.28 mm) for precise brake component alignment
• Hub pilot diameters of 3.583 inches (91.00 mm) for stable hub fitment
• Flange offset of 1.656 inches (42.06 mm) to maintain correct wheel positioning
• Flange diameter of 5.728 inches (145.50 mm) and bolt circle diameter of 4.500 inches (114.30 mm) for compatibility with OEM specifications
• Designed for driven axle applications

Detailed Product Description

The Timken 513089 wheel bearing and hub assembly is a critical component in the driveline system, specifically designed for driven axles on Chrysler, Dodge, and Plymouth vehicles including the 300M, Concorde, Intrepid, LHS, New Yorker, and Prowler. This assembly features a 33-spline interface that ensures a secure connection to the axle shaft, while the 3 flange bolt holes and 5 wheel studs provide a stable mounting platform for the wheel and brake components.

Precision in dimensions such as the wheel pilot diameter (2.812 inches or 71.42 mm) and brake pilot diameter (2.885 inches or 73.28 mm) ensures proper centering of wheels and brake rotors, reducing vibration and uneven wear. The hub pilot diameter of 3.583 inches (91.00 mm) supports the hub’s fitment to the vehicle, while the flange offset of 1.656 inches (42.06 mm) maintains correct wheel alignment relative to the suspension geometry. The flange diameter and bolt circle diameter conform to OEM standards, facilitating direct replacement without modification.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or rough rotation
• Fixing wheel hub assemblies with excessive play or looseness
• Resolving vibration issues related to misaligned wheel pilots or brake rotors
• Addressing ABS sensor malfunctions linked to hub assembly wear (if applicable)
• Restoring proper flange offset to maintain vehicle handling and tire wear

Installation Notes and Tips

• Ensure compatibility with vehicle make and model: Chrysler 300M, Dodge Intrepid, Plymouth Prowler, and others listed
• Use proper torque specifications for flange bolts and wheel studs to avoid premature wear
• Inspect axle splines and mating surfaces for damage before installation
• Clean mounting surfaces thoroughly to ensure accurate pilot seating
• Verify flange offset and bolt circle diameter match OEM requirements

Quality Assurance and Warranty

Timken manufactures the 513089 wheel bearing and hub assembly to meet stringent quality standards, ensuring durability and performance under normal operating conditions. This part is backed by Timken’s limited warranty against defects in materials and workmanship. For specific warranty details, refer to Timken’s official documentation or contact authorized service providers.
