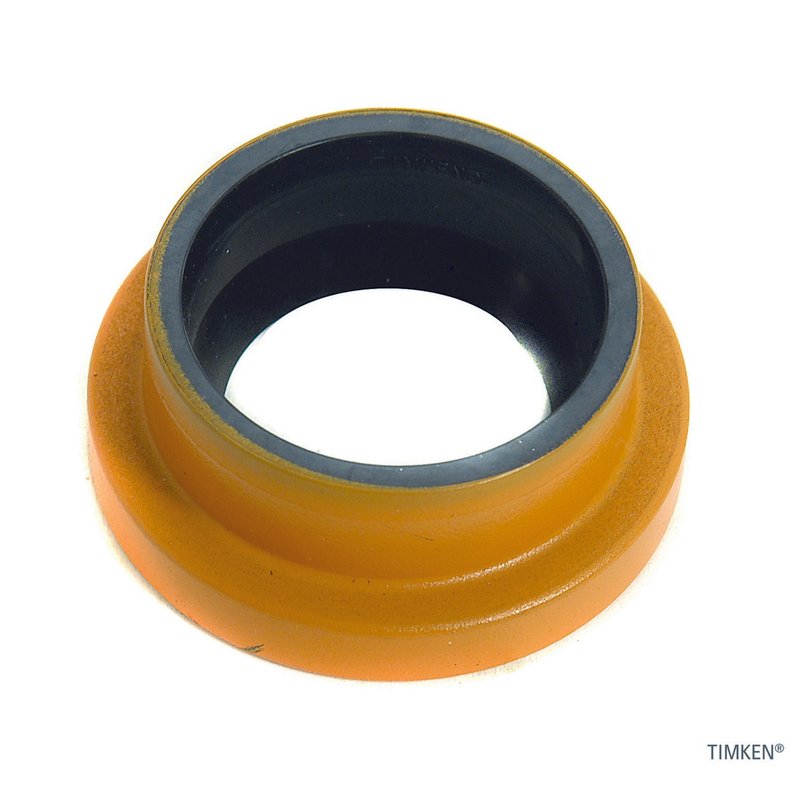

Timken 5131 Drive Axle Shaft Seal - Front or Front Left

Timken 5131 Drive Axle Shaft Seal

Timken 5131 is a drive axle shaft seal built for front axle sealing on a wide range of Dodge, Jeep, Chevrolet, GMC, and Ford applications. It uses a precision sealing design to help retain lubricant and keep dirt, debris, and moisture out of the axle assembly.

Key Features

• Precision seal profile helps control lubricant loss at the axle shaft
• Reinforced outer case helps resist installation damage and improve durability
• Ribbed rubber inner diameter helps seal minor spindle imperfections and seat securely
• Internal contamination exclusion system helps block debris that can lead to leakage
• Vent holes promote lubricant flow around the seal lip to reduce heat buildup
• Cross-references FEL-PRO 5131 and Carlson 13165 for the same application

Detailed Description

This Timken axle shaft seal is used in front axle service where a reliable seal is needed to keep gear oil or grease contained while protecting internal components from contamination. It is listed for front left applications on 1994-2001 Dodge Dakota, 1998-2001 Dodge Durango, 1994-2001 Dodge Ram 1500, and 1994-1999 Dodge Ram 3500 with Dana/Spicer 44-3F axle notes. It also covers front applications on vehicles such as Dodge Ramcharger, Dodge W100/W150/W200, Jeep J10/J20, Chevrolet K10/K20, GMC Jimmy, and Ford F-100/F-150 in the listed configurations. Timken 5131 is a direct-fit sealing solution for front axle shaft service where the original seal has hardened, worn, or begun leaking.

Common Problems This Seal Can Address

• Front axle oil seepage at the shaft seal
• Grease or lubricant loss from the axle housing
• Contamination entering the axle through a worn seal
• Heat-related seal wear from poor lubricant circulation
• Leakage caused by minor spindle surface imperfections

Installation Notes and Tips

Verify axle type, position, and notes before installation. This part is listed for front left and front positions depending on vehicle application, including Dana/Spicer 44F-BJ, Dana/Spicer 44-1F, Dana/Spicer 44-3F, and select manual-transmission front differential applications. Inspect the spindle or shaft surface for scoring, clean the sealing area thoroughly, and confirm the seal seats evenly during installation.

Quality Assurance

Timken oil and grease seals are engineered with reinforced construction and contamination control features to support dependable sealing performance in driveline service.
