Home› Driveline and Axles > Hubs and Related Components› Timken 513105 Wheel Bearing and Hub Assembly - Rear
Timken 513105 Wheel Bearing and Hub Assembly - RearOE Quality 60-Day Returns

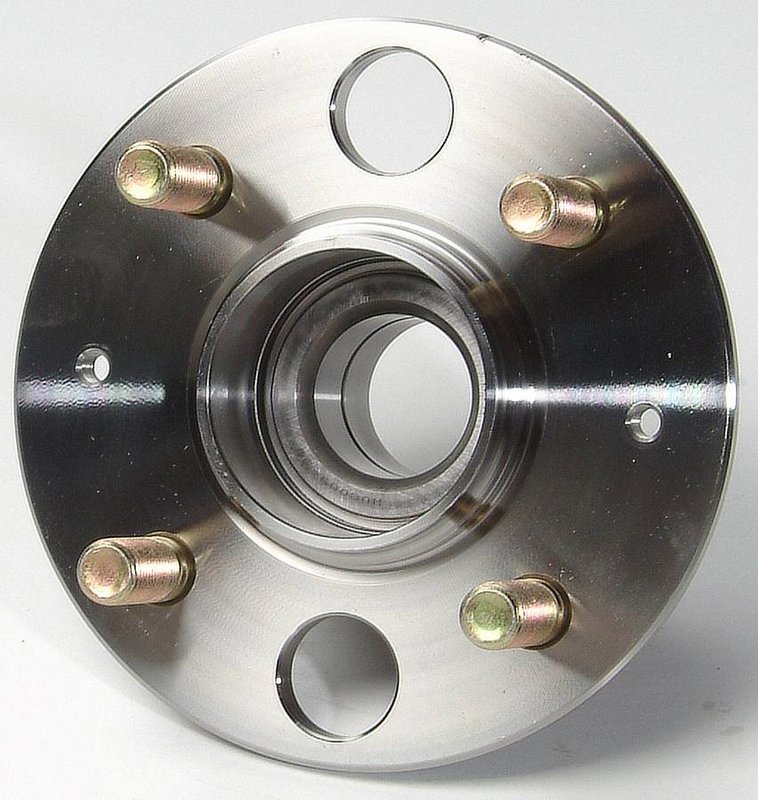

Timken 513105 Wheel Bearing and Hub Assembly - Rear - view 1
Timken 513105 Wheel Bearing and Hub Assembly - Rear - view 2
Timken 513105 Wheel Bearing and Hub Assembly - Rear - view 3
Timken 513105 Wheel Bearing and Hub Assembly - Rear - view 4
Timken 513105 Wheel Bearing and Hub Assembly - Rear - view 5
Part #: 513105

Timken 513105 Wheel Bearing and Hub Assembly - Rear

Rear
⚙️ 26 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$123.74Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Acura and Honda, Integra, Civic, and Civic del Sol
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Wheel Bearing and Hub Assembly options

Timken 513105 Wheel Bearing and Hub Assembly Overview

The Timken 513105 wheel bearing and hub assembly is engineered for reliable performance in Acura and Honda vehicles, including the Civic, Civic del Sol, and Integra models. Designed as a non-driven hub, this assembly ensures precise fitment and durability for your vehicle's driveline system.

  • Wheel pilot diameter options: 56 mm and 2.2047 inches
  • Brake pilot diameter options: 2.402 inches and 61 mm
  • Flange diameter: 136 mm (5.354 inches)
  • Bolt circle diameter: 100 mm (3.937 inches)
  • Flange offset measurements: 2.165 inches and 55 mm
  • Wheel stud quantity: 4
  • Drive type: Non-driven hub assembly

Technical Details and Specifications

The Timken 513105 hub assembly features dual measurements for critical dimensions, accommodating precise installation requirements. The wheel pilot diameter is available in both metric (56 mm) and imperial (2.2047 inches) units, ensuring compatibility with specific wheel designs. Brake pilot diameters are provided as 2.402 inches and 61 mm, supporting proper brake rotor alignment. The flange diameter measures 136 mm (5.354 inches), while the bolt circle diameter is 100 mm (3.937 inches), matching the bolt pattern of compatible Acura and Honda models. With a flange offset of 2.165 inches (55 mm) and four wheel studs, this assembly is designed for secure mounting and optimal wheel positioning. As a non-driven hub, it is intended for use on wheels that do not receive power from the drivetrain.

Compatible Vehicles and Applications

This Timken 513105 wheel bearing and hub assembly is compatible with the following vehicles:

  • Acura Civic
  • Acura Civic del Sol
  • Acura Integra
  • Honda Civic
  • Honda Civic del Sol
  • Honda Integra

It is specifically designed to replace worn or damaged wheel bearing and hub assemblies on these models, ensuring proper wheel alignment and smooth rotation.

Common Issues Addressed by This Hub Assembly

  • Eliminates wheel bearing noise and vibration
  • Resolves wheel wobble or looseness
  • Corrects uneven tire wear caused by faulty hubs
  • Restores proper brake rotor alignment
  • Prevents premature bearing failure in non-driven wheels

Installation Notes and Tips

When installing the Timken 513105 wheel bearing and hub assembly, ensure the following:

  • Verify the wheel pilot and brake pilot diameters match your vehicle’s specifications
  • Confirm the bolt circle diameter and wheel stud quantity align with your wheel setup
  • Use proper torque specifications for wheel studs and hub mounting bolts
  • Inspect related components such as brake rotors and calipers for wear during installation
  • Follow manufacturer guidelines for bearing lubrication and seating

Quality Assurance and Warranty

Timken manufactures the 513105 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable performance. This part is backed by Timken’s warranty coverage, which protects against defects in materials and workmanship. For detailed warranty terms, refer to Timken’s official documentation.

This part fits 26 vehicles. Search below:

YearMakeModelDrive TypePositionNotes
2001AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
2000AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
2000HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1999AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1999HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1998AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1998HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1997AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1997HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1997HondaCivic del SolFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1996AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1996HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1996HondaCivic del SolFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1995AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1995HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1995HondaCivic del SolFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1994AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1994HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1994HondaCivic del SolFWDRearDisc; Used For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1993AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1993HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1993HondaCivic del SolFWDRearDisc; Used For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1992AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1992HondaCivicFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1991AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed
1990AcuraIntegraFWDRearUsed For Both ABS and Non ABS Applications. Remove Tone Ring For Non ABS Applications If Clearance Is Needed

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
