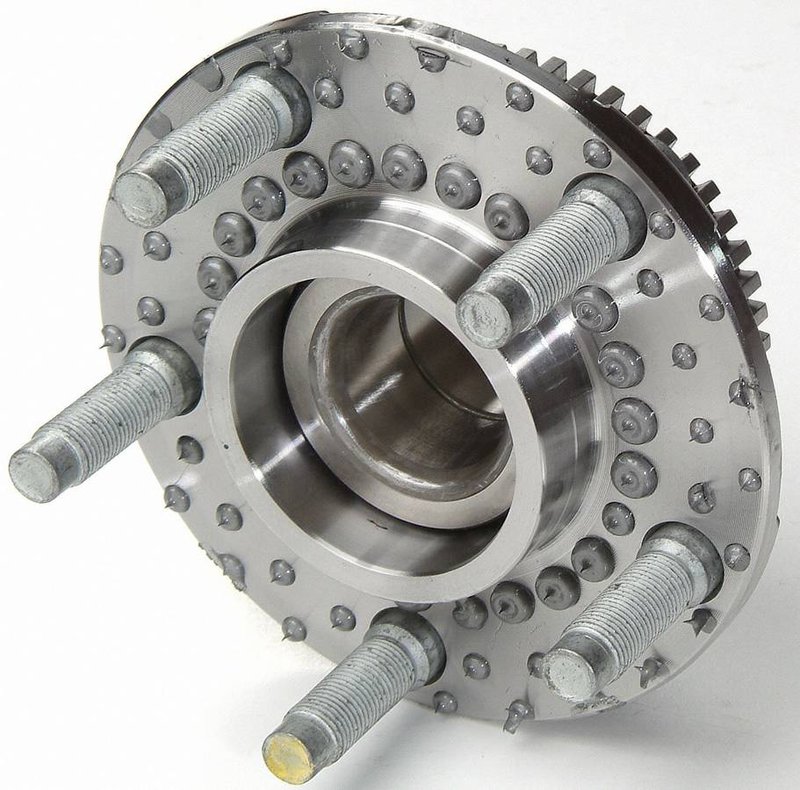

Timken 513115 Wheel Bearing and Hub Assembly - Front

Timken 513115 Wheel Bearing and Hub Assembly Overview

The Timken 513115 wheel bearing and hub assembly is engineered for reliable performance on Ford Mustang vehicles. Designed as a non-driven hub, this assembly ensures precise fitment and durability for your Mustang's driveline system.

• Compatible with Ford Mustang models
• Non-driven wheel bearing and hub assembly
• 5 wheel studs for secure wheel mounting
• 3 flange bolt holes for stable attachment
• Flange diameter of 139.00 mm (5.472 inches)
• Bolt circle diameter of 114.30 mm (4.500 inches)
• Wheel pilot diameters of 2.776 inches and 70.50 mm
• Brake pilot diameters of 2.795 inches and 71.00 mm
• Hub pilot diameters of 3.149 inches and 80.00 mm
• Flange offset of 1.874 inches (47.60 mm)

Detailed Specifications and Features

The Timken 513115 assembly features a 5-stud wheel configuration and a 3-bolt flange design, providing a secure and stable connection to the vehicle’s hub. The flange diameter measures 139.00 mm (5.472 inches), while the bolt circle diameter is 114.30 mm (4.500 inches), ensuring compatibility with specific Ford Mustang wheel setups. The assembly includes precise wheel pilot diameters of 2.776 inches and 70.50 mm, as well as brake pilot diameters of 2.795 inches and 71.00 mm, which help maintain proper alignment and brake rotor positioning. The hub pilot diameter is 3.149 inches (80.00 mm), and the flange offset is 1.874 inches (47.60 mm), contributing to accurate wheel placement and vehicle handling characteristics.

Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford Mustang
• Eliminates wheel vibration caused by bearing wear
• Resolves noise issues related to hub bearing failure
• Restores proper wheel alignment and brake rotor positioning
• Prevents premature tire wear due to hub assembly defects

Installation Notes and Tips

When installing the Timken 513115 wheel bearing and hub assembly on a Ford Mustang, ensure the vehicle is securely lifted and supported. Clean the mounting surface thoroughly before installation to prevent contamination. Torque the flange bolts and wheel studs to manufacturer specifications to maintain proper fitment and safety. It is recommended to inspect related components such as brake rotors and suspension parts during installation for optimal performance.

Quality Assurance and Warranty

Timken manufactures the 513115 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable operation. This part is backed by Timken’s warranty coverage, which protects against defects in materials and workmanship under normal use. Refer to Timken’s official warranty documentation for specific terms and conditions.
