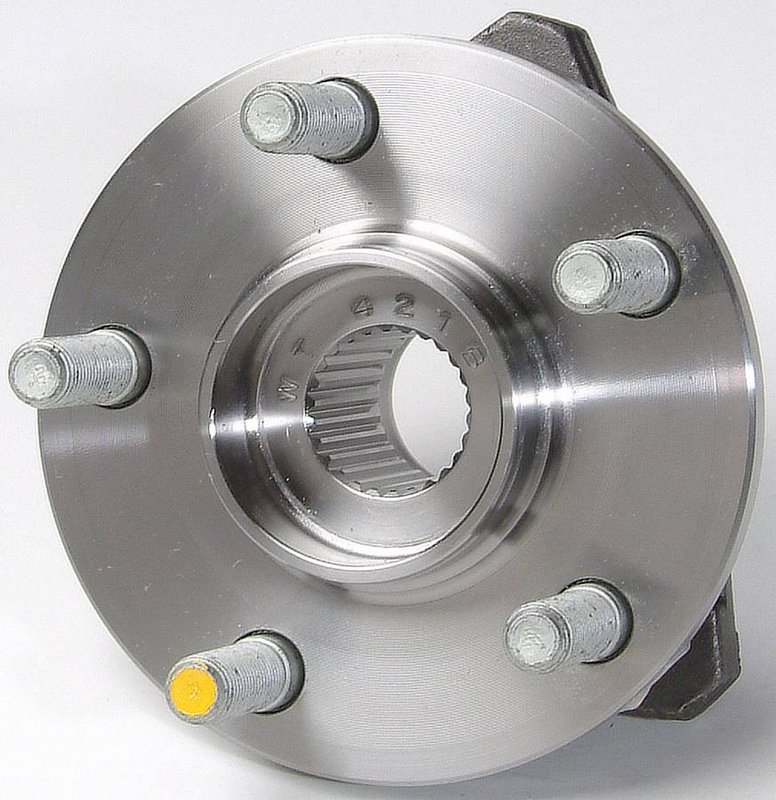

Timken 513138 Wheel Bearing and Hub Assembly - Front

Timken 513138 Wheel Bearing and Hub Assembly Overview

The Timken 513138 wheel bearing and hub assembly is engineered for reliable driveline performance in select Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Breeze, Cirrus, Sebring, and Stratus, this assembly ensures proper fitment and durability for driven wheel applications.

• 26 spline quantity for precise drivetrain engagement
• 3 flange bolt holes with a 100 mm bolt circle diameter
• 5 wheel studs for secure wheel mounting
• Wheel pilot diameters of 2.236 inches (56.79 mm) and brake pilot diameters of 2.395 inches (60.83 mm)
• Hub pilot diameters measuring 3.425 inches (87.00 mm)
• Flange offset of 1.475 inches (37.47 mm) and flange diameter of 4.957 inches (125.91 mm)
• Designed for driven axle applications

Technical Specifications and Fitment Details

The Timken 513138 assembly features a 26-spline driven design, compatible with the front or rear driven axles of Chrysler, Dodge, and Plymouth vehicles including the Breeze, Cirrus, Sebring, and Stratus. The 3-flange bolt hole configuration with a 100 mm bolt circle diameter ensures proper alignment and secure attachment. The assembly includes 5 wheel studs, providing a stable mounting surface for wheels. Precise pilot diameters for the wheel (2.236 inches / 56.79 mm) and brake components (2.395 inches / 60.83 mm) help maintain correct positioning and reduce vibration. The hub pilot diameter of 3.425 inches (87.00 mm) supports proper hub centering, while the flange offset and diameter contribute to accurate wheel placement and clearance.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Chrysler Breeze, Dodge Cirrus, Plymouth Sebring, and Dodge Stratus
• Eliminates wheel noise caused by bearing wear or failure
• Resolves wheel vibration and uneven tire wear issues
• Restores proper wheel alignment and hub centering
• Addresses ABS sensor malfunctions related to hub assembly defects (if applicable)

Installation Notes and Tips

• Ensure compatibility with vehicle make and model before installation
• Use proper torque specifications for flange bolts and wheel studs
• Inspect axle splines and mating surfaces for wear or damage prior to assembly
• Clean mounting surfaces to prevent contamination and ensure proper fit
• Verify wheel pilot and brake pilot diameters match vehicle specifications

Quality Assurance and Warranty Information

Timken wheel bearing and hub assemblies are manufactured to meet OEM standards for durability and performance. The 513138 part number undergoes rigorous quality control to ensure precise fit and function. While specific warranty terms may vary, Timken typically offers coverage against defects in materials and workmanship, providing confidence in the longevity of this component for Chrysler, Dodge, and Plymouth vehicles.
