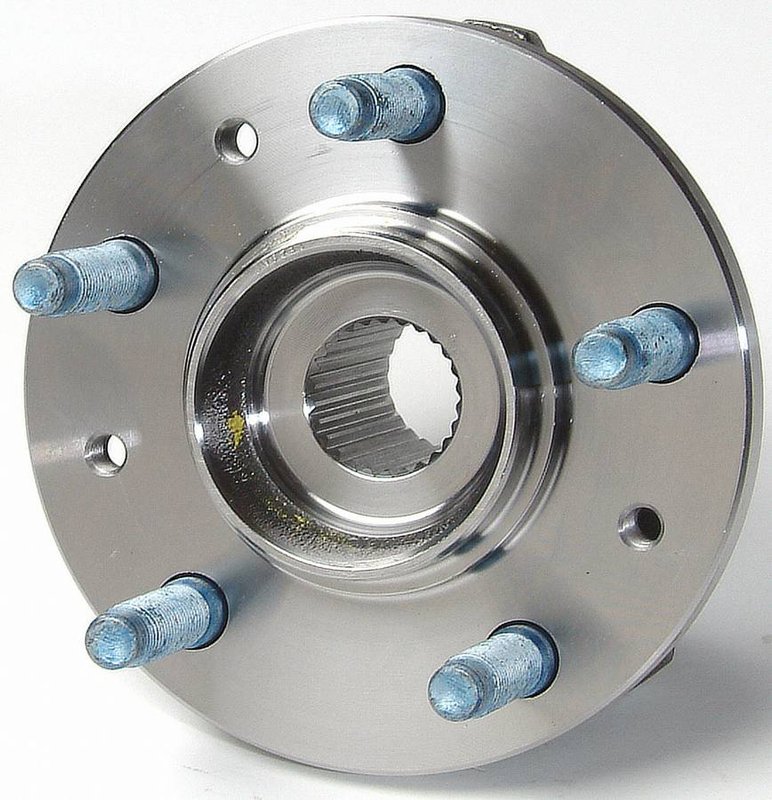

Timken 513156 Wheel Bearing and Hub Assembly - Front

Overview of Timken 513156 Wheel Bearing and Hub Assembly

The Timken 513156 wheel bearing and hub assembly is designed specifically for Ford Windstar vehicles, providing reliable driveline performance. This driven hub assembly features precise dimensions and robust construction to ensure proper fit and function.

• Compatible with Ford Windstar models
• 26 spline quantity for secure drivetrain engagement
• 5 wheel studs for stable wheel mounting
• 3 flange bolt holes with a 107.95 mm (4.250 inch) bolt circle diameter
• Wheel pilot diameter of 63.23 mm (2.489 inches) for accurate wheel alignment
• Brake pilot diameter of 70.37 mm (2.770 inches) for proper brake component fitment
• Hub pilot diameter of 83.50 mm (3.287 inches) ensuring precise hub positioning
• Flange diameter of 139.00 mm (5.472 inches) with a flange offset of 41.45 mm (1.632 inches)

Detailed Product Description

The Timken 513156 wheel bearing and hub assembly is engineered to meet the exact specifications required by Ford Windstar vehicles. Featuring a 26-spline driven design, this assembly ensures efficient torque transfer and drivetrain reliability. The 5-wheel stud configuration combined with a 3-bolt flange provides a secure mounting platform for the wheel and brake components. Precise pilot diameters for the wheel (63.23 mm) and brake (70.37 mm) help maintain proper alignment and reduce vibration. The flange offset and diameter are optimized to maintain correct wheel positioning relative to the suspension and brake system.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford Windstar
• Eliminates wheel vibration caused by bearing wear
• Resolves noise issues related to failing hub bearings
• Restores proper wheel alignment and brake rotor positioning
• Addresses looseness or play in the wheel hub assembly

Installation Notes and Tips

• Ensure compatibility with Ford Windstar model year before installation
• Use proper torque specifications for flange bolts and wheel studs
• Inspect related suspension and brake components during installation
• Clean mounting surfaces to prevent contamination and ensure proper fit
• Verify spline engagement and hub pilot seating for secure installation

Quality Assurance and Warranty

Timken manufactures the 513156 wheel bearing and hub assembly to meet OEM standards for durability and performance. This part undergoes rigorous quality control to ensure precise fit and long service life. Warranty coverage details should be confirmed with the original equipment manufacturer or authorized distributor.
