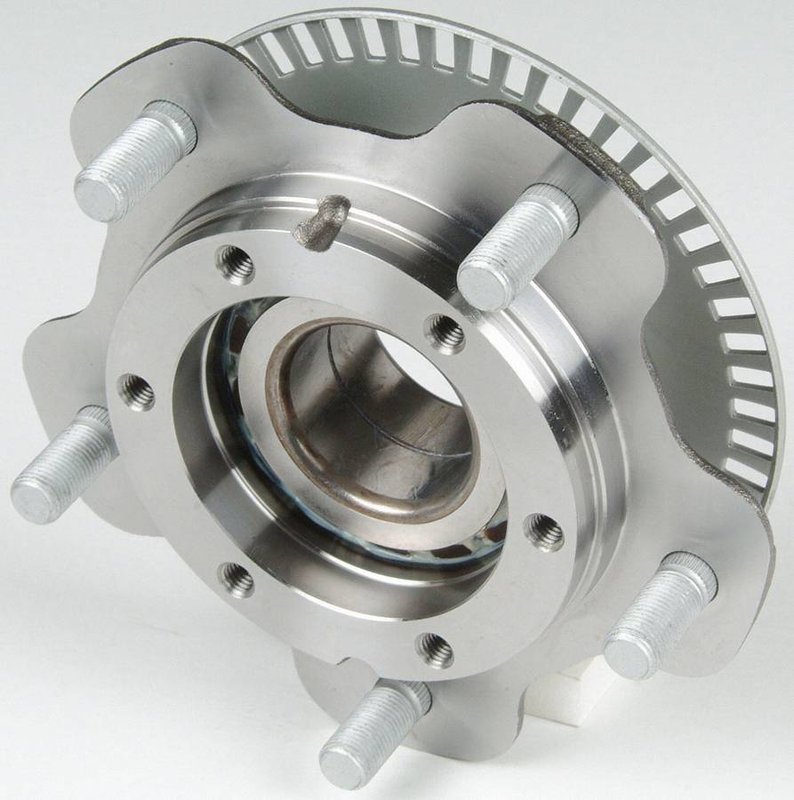

Timken 513193 Wheel Bearing and Hub Assembly - Front

Timken 513193 Wheel Bearing and Hub Assembly Overview

The Timken 513193 wheel bearing and hub assembly is engineered for reliable performance on select Chevrolet and Suzuki vehicles. Designed specifically for non-driven applications, this assembly ensures precise fitment and durability for models like the Chevrolet Tracker and Suzuki Grand Vitara.

• Wheel pilot diameter: 105 mm (4.134 inches)
• Brake pilot diameter: 108.25 mm (4.262 inches)
• Hub pilot diameter: 78.65 mm (3.096 inches)
• Flange diameter: 170 mm (6.693 inches)
• Bolt circle diameter: 139.7 mm (5.5 inches)
• Wheel stud quantity: 5
• Drive type: Non-driven

Technical Details and Specifications

The Timken 513193 wheel bearing and hub assembly is designed with precise dimensions to match the OEM specifications for Chevrolet Tracker, Suzuki Grand Vitara, Vitara, and XL-7 models. The 5-lug wheel stud configuration and 139.7 mm bolt circle diameter provide secure mounting, while the flange diameter of 170 mm ensures proper alignment with brake components. The non-driven design suits front or rear axle positions where power is not transmitted through the hub, maintaining smooth wheel rotation and vehicle stability.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Chevrolet Tracker
• Suzuki Grand Vitara
• Suzuki Vitara
• Suzuki XL-7

It is intended for use in non-driven axle positions, making it suitable for front or rear hubs depending on the drivetrain configuration of these models.

Common Issues Addressed by Timken 513193

• Eliminates wheel bearing noise caused by wear or damage
• Resolves wheel hub vibration and wobble
• Prevents uneven tire wear due to hub misalignment
• Restores proper brake rotor alignment with brake pilot diameter compatibility
• Improves wheel mounting stability with correct wheel stud quantity and bolt pattern

Installation Notes and Tips

When installing the Timken 513193 wheel bearing and hub assembly, ensure the following:

• Verify the wheel pilot diameter (105 mm) matches the vehicle’s wheel specifications
• Confirm the brake pilot diameter (108.25 mm) aligns with the brake rotor
• Use proper torque specifications for the 5 wheel studs to avoid premature wear
• Inspect the hub pilot diameter (78.65 mm) for a secure fit on the axle flange
• Check for any signs of damage or contamination before installation

Quality Assurance and Warranty

Timken manufactures the 513193 wheel bearing and hub assembly to meet strict quality standards, ensuring durability and reliable performance. While specific warranty details may vary, Timken products typically come with a limited warranty covering defects in materials and workmanship. Refer to Timken’s official documentation for exact warranty terms applicable to this part.
