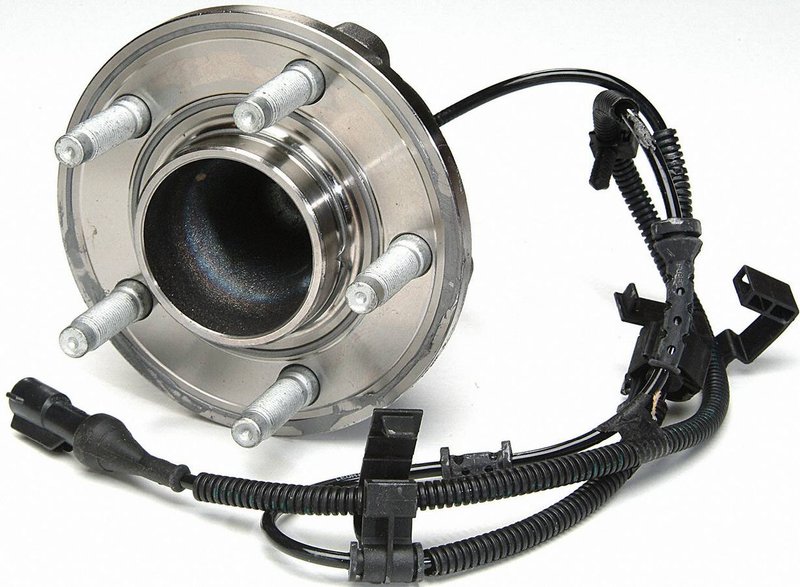

Timken 513196 Wheel Bearing and Hub Assembly - Front

Timken Wheel Bearing and Hub Assembly Overview

The Timken 513196 wheel bearing and hub assembly is engineered for reliable performance in select Ford, Lincoln, and Mercury vehicles. Designed specifically for non-driven applications, this component ensures proper fitment and durability for models like the Crown Victoria, Grand Marquis, Marauder, and Town Car.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 2.753 inches (69.93 mm)
• Brake pilot diameter: 2.976 inches (75.58 mm)
• Hub pilot diameter: 3.428 inches (87.06 mm)
• Wheel stud quantity: 5 for compatibility with factory wheels
• Flange offset: 1.408 inches (35.76 mm)
• Flange diameter: 5.945 inches (151.00 mm)
• Bolt circle diameter: 4.446 inches (112.92 mm)
• Drive type: Non-driven axle application

Technical Details and Specifications

The Timken 513196 wheel bearing and hub assembly is designed with precise dimensions to match the OEM specifications for non-driven axles on Ford Crown Victoria, Lincoln Town Car, Mercury Grand Marquis, and Marauder models. The assembly features a 5-stud wheel configuration and a 4-bolt flange for secure attachment. The flange offset of 1.408 inches ensures proper wheel alignment and clearance. The wheel pilot diameter of 2.753 inches and brake pilot diameter of 2.976 inches provide accurate centering for wheels and brake components, reducing vibration and wear. The hub pilot diameter of 3.428 inches supports the hub's fitment to the axle shaft, maintaining stability during operation.

Compatible Vehicles and Applications

This Timken wheel bearing and hub assembly is compatible with the following vehicles:

• Ford Crown Victoria (non-driven axle)
• Lincoln Town Car (non-driven axle)
• Mercury Grand Marquis (non-driven axle)
• Mercury Marauder (non-driven axle)

It is intended for use on the rear non-driven axles of these models, ensuring proper fit and function.

Common Issues Addressed by This Assembly

• Eliminates wheel bearing noise caused by worn or damaged bearings
• Resolves wheel hub looseness or play affecting vehicle stability
• Prevents uneven tire wear due to hub misalignment
• Restores proper wheel mounting and brake rotor alignment
• Addresses vibration or wobble during driving at various speeds

Installation Notes and Tips

• Ensure the vehicle is securely lifted and supported before installation
• Verify the part number 513196 matches the OEM specifications for your vehicle
• Clean the mounting surface thoroughly to prevent contamination
• Torque flange bolts to manufacturer specifications to avoid premature failure
• Inspect wheel studs and replace if damaged during removal

Quality Assurance and Warranty

Timken wheel bearing and hub assemblies are manufactured to meet strict quality standards, ensuring durability and reliable performance. The 513196 assembly undergoes rigorous testing to comply with OEM requirements. While specific warranty terms may vary, Timken typically offers coverage against defects in materials and workmanship. Consult the product documentation or Timken directly for detailed warranty information.
