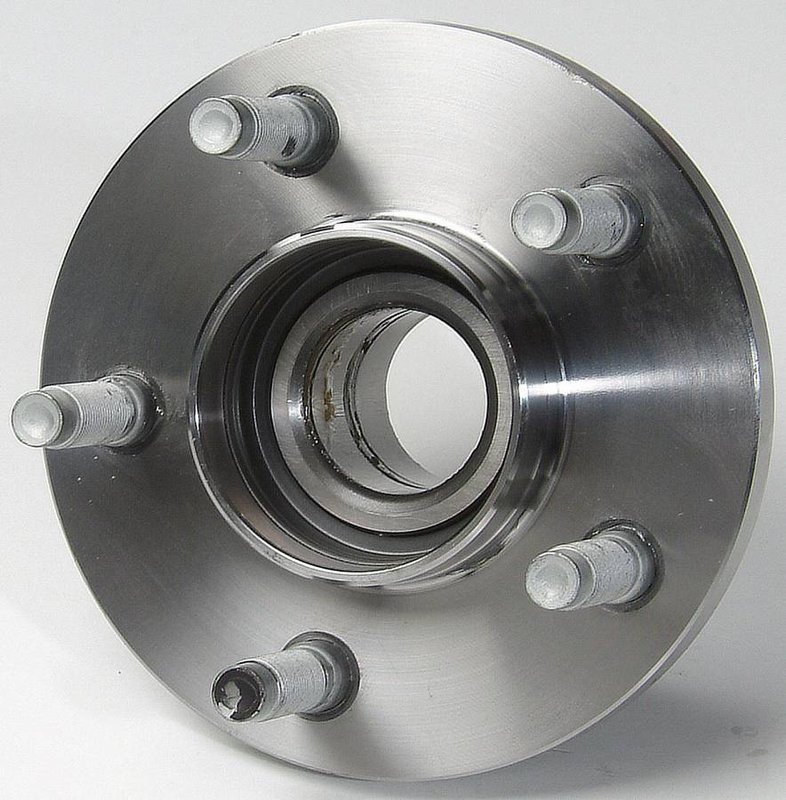

Timken 513202 Wheel Bearing and Hub Assembly - Front

Timken 513202 Wheel Bearing and Hub Assembly Overview

The Timken 513202 wheel bearing and hub assembly is engineered for reliable performance in Ford, Lincoln, and Mercury vehicles. Designed specifically for models like the Crown Victoria, Grand Marquis, and Town Car, this non-driven hub assembly ensures precise fitment and durability.

• Wheel pilot diameter options: 70.51 mm and 2.78 inches
• Brake pilot diameters: 2.83 inches and 71.9 mm
• Five wheel studs for secure wheel mounting
• Flange offset measurements: 2.17 mm and 55.32 mm
• Flange diameters: 151.53 mm and 5.96 inches
• Bolt circle diameters: 107.95 mm and 4.25 inches
• Non-driven drive type for specific axle configurations

Technical Details and Specifications

The Timken 513202 hub assembly features dual measurement standards to accommodate precise installation requirements. The wheel pilot diameter is available in both metric (70.51 mm) and imperial (2.78 inches) units, ensuring compatibility with the wheel hub interface. Brake pilot diameters of 2.83 inches and 71.9 mm provide proper alignment for brake components. The assembly includes five wheel studs, which are standard for the specified Ford, Lincoln, and Mercury models. Flange offset and diameter measurements are critical for maintaining correct wheel positioning and clearance, with flange offsets of 2.17 mm and 55.32 mm and flange diameters of 151.53 mm and 5.96 inches. The bolt circle diameters of 107.95 mm and 4.25 inches correspond to the wheel mounting pattern, ensuring a secure fit.

Compatible Vehicles and Applications

This wheel bearing and hub assembly is compatible with the following vehicles:

• Ford Crown Victoria
• Lincoln Town Car
• Mercury Grand Marquis

It is designed for non-driven axle applications, making it suitable for front or rear hubs depending on the vehicle configuration.

Common Issues Addressed by Timken 513202

• Wheel bearing noise or roughness during rotation
• Excessive play or looseness in the wheel hub
• Uneven tire wear due to hub misalignment
• Brake rotor wobble caused by worn hub assembly
• Vibration or steering instability at higher speeds

Installation Notes and Tips

Proper installation of the Timken 513202 wheel bearing and hub assembly requires attention to torque specifications and cleanliness. Ensure the mounting surface is free of debris and corrosion before installation. Use a calibrated torque wrench to tighten wheel studs and hub bolts to manufacturer specifications. It is recommended to inspect related suspension and brake components during installation to ensure overall system integrity.

Quality Assurance and Warranty

Timken manufactures the 513202 wheel bearing and hub assembly to meet OEM standards for fit, form, and function. The product undergoes rigorous testing to ensure durability and performance under normal operating conditions. While specific warranty details may vary, Timken typically offers coverage against defects in materials and workmanship, providing confidence in the product's reliability.
