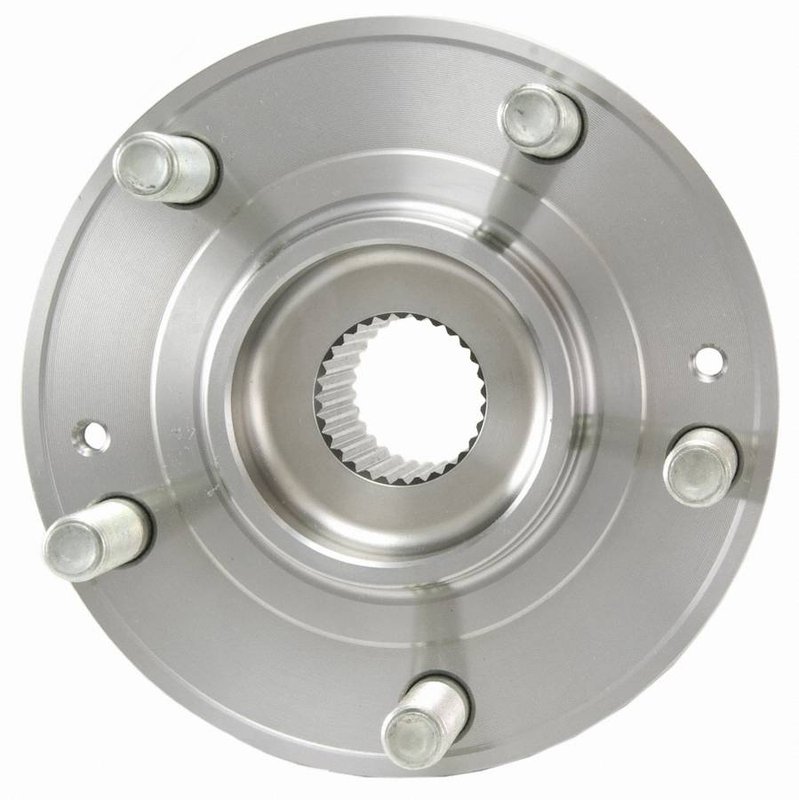

Timken 513266 Wheel Bearing and Hub Assembly - Front or Rear

Timken Wheel Bearing and Hub Assembly Overview

The Timken 513266 wheel bearing and hub assembly is engineered for reliable driveline performance on select Hyundai and Kia models. Designed to meet precise specifications, this assembly ensures proper fit and function for vehicles like the Hyundai Santa Fe and Kia Sorento.

• Flange bolt hole quantity: 4 for secure mounting
• Wheel pilot diameter: 2.638 inches (67 mm)
• Brake pilot diameter: 2.717 inches (69 mm)
• Wheel stud quantity: 5 for enhanced wheel stability
• Hub pilot diameter: 3.62 inches
• Flange offset: 2.102 inches (53.4 mm)
• Flange diameter: 5.472 inches (139 mm)
• Bolt circle diameter: 4.5 inches (114.3 mm)
• Drive type: Driven hub assembly

Detailed Product Description

The Timken 513266 wheel bearing and hub assembly is designed specifically for driven axle applications on Hyundai and Kia vehicles, including the Santa Fe, Santa Fe Sport, Santa Fe XL, Sorento, and Veracruz. This assembly features a 4-hole flange bolt pattern and a 5-stud wheel configuration, ensuring compatibility with the factory wheel setup. The precise wheel pilot diameter of 2.638 inches (67 mm) and brake pilot diameter of 2.717 inches (69 mm) provide accurate alignment for brake components and wheels, reducing vibration and improving overall drivability. The hub pilot diameter of 3.62 inches supports proper hub centering, while the flange offset of 2.102 inches (53.4 mm) maintains correct wheel positioning relative to the suspension and brake system. The flange diameter of 5.472 inches (139 mm) and bolt circle diameter of 4.5 inches (114.3 mm) correspond to OEM specifications for a secure fit.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearings causing noise or rough rotation
• Fixes wheel hub looseness or play affecting vehicle handling
• Resolves ABS sensor issues related to hub assembly wear
• Addresses uneven tire wear due to hub misalignment
• Restores proper wheel mounting and brake rotor alignment

Installation Notes and Tips

Installation of the Timken 513266 wheel bearing and hub assembly requires proper torque specifications for the 4 flange bolts and 5 wheel studs. Ensure the hub pilot diameter seats fully on the axle flange to avoid misalignment. It is recommended to inspect the axle shaft and surrounding components for wear or damage before installation. Use anti-seize lubricant on mounting surfaces to prevent corrosion and ease future removal. Verify wheel and brake rotor fitment after assembly to confirm correct installation.

Quality Assurance and Warranty

Timken manufactures the 513266 wheel bearing and hub assembly to meet or exceed OEM standards for durability and performance. Each unit undergoes rigorous quality control testing to ensure precise dimensions and reliable operation. Timken typically offers a limited warranty covering defects in materials and workmanship, providing confidence in the product’s longevity and service life.
