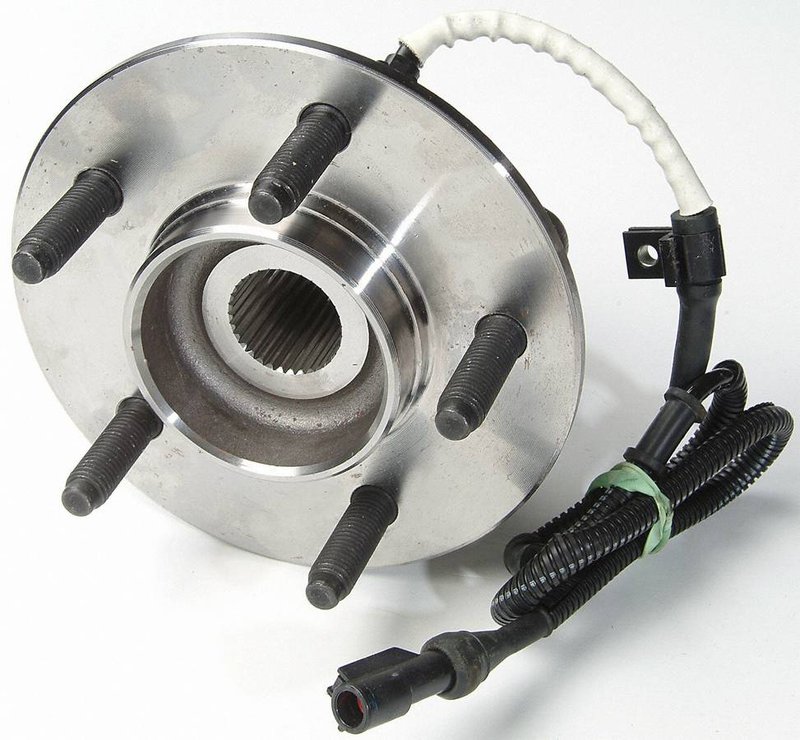

Timken 515029 Wheel Bearing and Hub Assembly - Front

Timken 515029 Wheel Bearing and Hub Assembly Overview

The Timken 515029 wheel bearing and hub assembly is engineered for reliable performance in Ford F-150 and F-150 Heritage models. Designed to meet precise specifications, this driven hub assembly ensures proper fitment and durability for your vehicle's driveline system.

• 33 spline quantity for secure axle engagement
• 3 flange bolt holes with a 135 mm (5.315 inch) bolt circle diameter
• 5 wheel studs for stable wheel mounting
• Wheel pilot diameters of 3.414 inches (86.72 mm) and brake pilot diameters of 3.539 inches (89.90 mm)
• Hub pilot diameter of 3.910 inches (99.34 mm) for accurate hub alignment
• Flange diameter of 181 mm (7.126 inches) with a flange offset of 1.955 inches (49.65 mm)
• Designed for driven axle applications

Detailed Product Description

The Timken 515029 wheel bearing and hub assembly is specifically designed for use with Ford F-150 and F-150 Heritage trucks, providing a precise fit and reliable operation. The assembly features a 33-spline driven design that ensures proper torque transfer and axle engagement. Its flange includes three bolt holes arranged on a 135 mm bolt circle diameter, supporting secure attachment to the vehicle’s hub. The five wheel studs accommodate standard wheel mounting, while the multiple pilot diameters for the wheel, brake, and hub ensure accurate centering and alignment. The flange offset and diameter are engineered to maintain proper wheel positioning and brake clearance, critical for safe and efficient driveline performance.

Common Applications and Problem Resolution

• Replacement for worn or damaged wheel bearing and hub assemblies on Ford F-150 and F-150 Heritage models
• Addresses wheel vibration or noise caused by bearing wear
• Resolves issues with wheel hub misalignment affecting brake performance
• Corrects loose or damaged wheel studs impacting wheel security
• Prevents premature wear of driveline components due to faulty hub assemblies

Installation Notes and Tips

• Ensure compatibility with Ford F-150 or F-150 Heritage before installation
• Use proper torque specifications for flange bolts and wheel studs to avoid damage
• Inspect axle splines and mating surfaces for wear prior to assembly
• Clean mounting surfaces thoroughly to ensure proper fit and prevent contamination
• Verify flange offset and pilot diameters match vehicle specifications for optimal performance

Quality Assurance and Warranty

Timken manufactures the 515029 wheel bearing and hub assembly to meet stringent quality standards, ensuring durability and reliable operation. This part is backed by Timken’s limited warranty against defects in materials and workmanship, providing confidence in its long-term performance when installed according to manufacturer guidelines.
