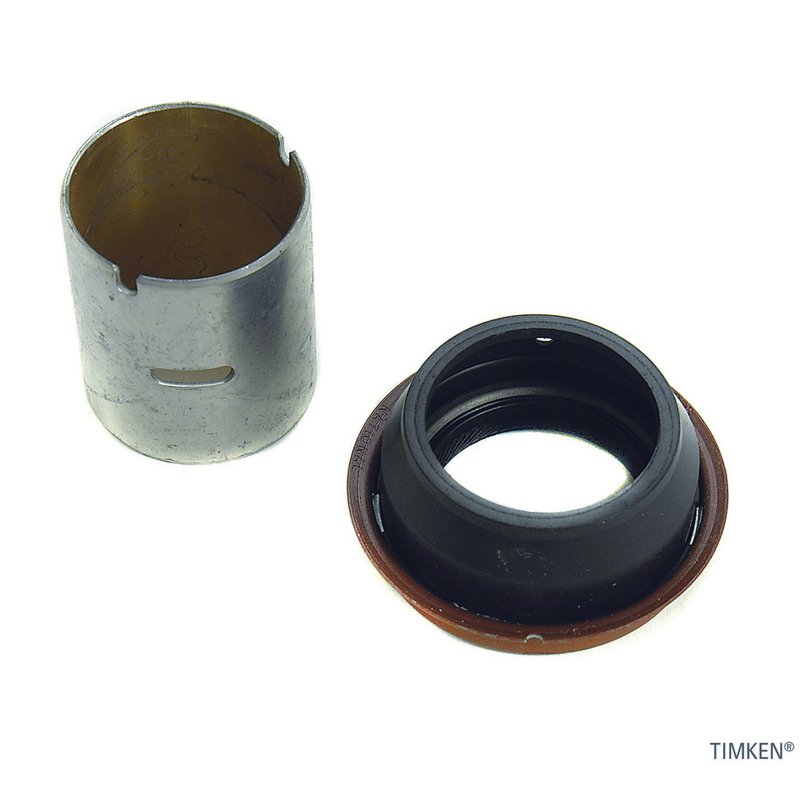

Timken 5203 Automatic Transmission Extension Housing Seal Kit

Timken 5203 Automatic Transmission Seal Kit

Timken 5203 is an automatic transmission extension housing seal kit for a wide range of Ford, Lincoln, and Mercury applications. It is built for service work where extension housing sealing, lubricant retention, and contamination control matter.

Key Features

• Precision sealing design helps keep transmission fluid and grease inside the housing
• Reinforced outer case helps resist installation damage and adds durability
• Ribbed rubber inner diameter helps seal minor spindle imperfections and seat securely
• Internal contamination exclusion system helps block debris that can lead to leakage
• Vent holes promote lubricant flow around the seal lip to reduce heat build-up

Detailed Description

This Timken 5203 extension housing seal kit is used in automatic transmission service on classic Ford, Mercury, and Lincoln vehicles, including E4OD-equipped trucks and vans as well as Cruise-O-Matic and other automatic transmission extension housing applications. It is a practical choice for restoring sealing performance on vehicles such as the Ford F-150, Ford Bronco, and Mercury Cougar when the rear extension housing area shows signs of seepage or contamination. This part cross-references National 5203 and SKF 5203 for the same application.

Common Repair Symptoms

• Transmission fluid leaking from the extension housing area
• Grease or lubricant loss at the rear seal surface
• Debris intrusion around the seal lip
• Heat-related seal wear at the housing end
• Poor sealing on worn or slightly imperfect spindle surfaces

Installation Notes

Clean the extension housing and inspect the sealing surface before installation. Verify the transmission family and housing dimensions against the vehicle application, especially on Ford E4OD, Cruise-O-Matic, and 2.5 in. O.D. service applications. Proper seating and a clean bore are important for reliable sealing on Ford Mustang, Ford F-350, and Mercury Marquis applications.

Quality Assurance

Timken oil and grease seals use reinforced construction and contamination-control features to support consistent sealing performance in transmission service.
