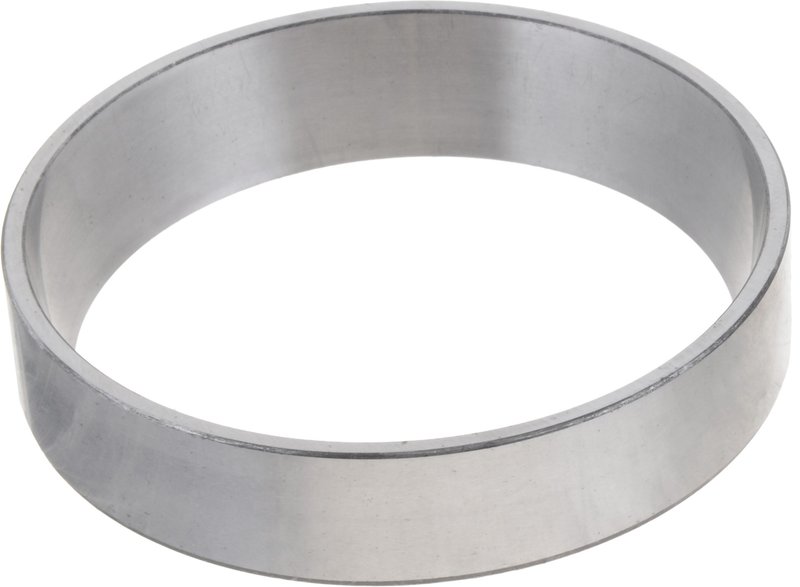

Timken 563 Differential Race - Rear Left

Timken 563 Differential Race Overview

The Timken 563 differential race is engineered to provide reliable performance in driveline and axle assemblies. Designed with precise dimensions, this bearing race supports smooth differential operation in various vehicle applications, including popular makes and models such as Ford F-150 and Chevrolet Silverado.

• Width options: 1.125 inches and 28.58 millimeters for versatile fitment
• Outside diameter measurements: 127.00 mm (5.000 inches) ensuring compatibility with standard differential assemblies
• Bearing cup radius sizes: 0.130 inches and 3.30 millimeters for accurate bearing seating

Technical Specifications and Design Details

The Timken 563 differential race features dual width and diameter measurements to accommodate different measurement systems and ensure precise fitment. With an outside diameter of 127.00 mm (5.000 inches) and widths of 1.125 inches and 28.58 mm, this race is designed to maintain proper bearing alignment and load distribution within the differential. The bearing cup radius of 0.130 inches (3.30 mm) supports the bearing cup's seating, reducing wear and extending service life. These specifications make the Timken 563 suitable for use in a range of driveline applications, particularly in trucks like the Ford F-150 and Chevrolet Silverado, where durability and precision are critical.

Applications and Problem Solving

• Restores proper bearing fitment in differential assemblies
• Addresses issues related to bearing misalignment and premature wear
• Helps eliminate differential noise caused by worn or damaged races
• Supports smooth axle rotation and torque transfer
• Prevents differential overheating due to improper bearing seating

Installation Notes and Tips

When installing the Timken 563 differential race, ensure the race is properly seated in the differential housing using appropriate tools to avoid damage. Clean the housing thoroughly before installation to remove debris and old lubricant. Verify the race dimensions against the vehicle’s specifications, especially for models like the Ford F-150 and Chevrolet Silverado, to confirm compatibility. Proper lubrication of the bearing and race interface is essential for optimal performance and longevity.

Quality Assurance and Warranty

Timken is a recognized manufacturer of precision bearings and related components. The 563 differential race is manufactured to meet strict quality standards, ensuring durability and reliable performance in demanding automotive environments. While specific warranty details are not provided, Timken products typically come with manufacturer-backed quality assurance to support professional repair and maintenance needs.
