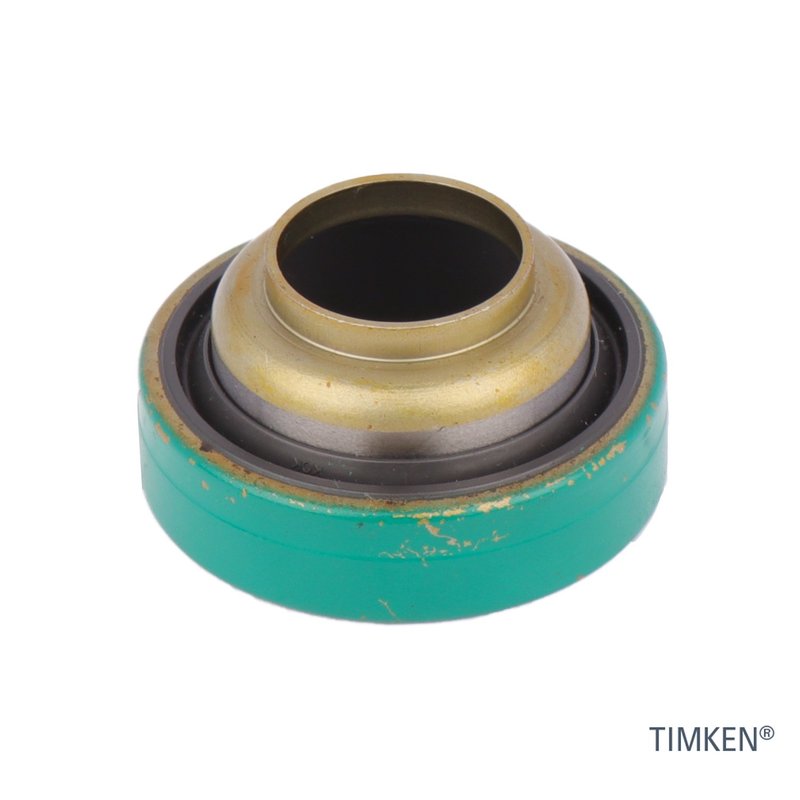

Timken 5693 Automatic Transmission Output Shaft Seal Kit
| Brand | Timken 5693 |
|---|---|
| Fits | Chevrolet, Daewoo, and Pontiac · 32 vehicles |
Precision sealing design. Helps prevent lubricant escape and keep contaminants out.
Reinforced outer case. Helps resist installation damage and adds durability.
Contamination exclusion system. Helps block debris that can lead to leakage.
Cross-references Bosch 16148 and National 5693 for the same application. See all 2.
Automatic Transmission Output Shaft Seal Kit
Timken 5693 is an automatic transmission output shaft seal kit built for leak control at the transmission output shaft. It is a direct-fit service part for select Chevrolet Cobalt, Malibu, Cavalier, and Pontiac Grand Am applications, including 2006-2010 Chevrolet Cobalt and 2004-2010 Chevrolet Malibu coverage.
Key Features
- Precision sealing design helps retain transmission lubricant and block outside contaminants.
- Reinforced outer case helps resist installation damage and adds durability.
- Ribbed rubber inner diameter helps seal minor spindle imperfections and supports positive seating.
- Internal contamination exclusion system helps reduce debris intrusion that can lead to leakage.
- Vent holes promote lubricant flow around the seal lip to help manage heat buildup.
- Timken 5693 cross-references Bosch 16148 and National 5693 for the same application.
Detailed Description
This Timken automatic transmission output shaft seal kit is engineered for service replacement where the output shaft seal has worn, hardened, or begun leaking. It is a practical choice for transmission maintenance on Chevrolet Malibu, Chevrolet Cavalier, Chevrolet Cobalt, and Pontiac Grand Am models listed in the fitment data. Timken 5693 uses a sealing design that supports lubricant retention while helping keep dirt and other contaminants out of the transmission area.
What It Helps Fix
- Transmission fluid seepage at the output shaft seal
- Contamination entering the seal area
- Heat-related seal wear
- Leakage caused by minor shaft surface imperfections
- Seal damage from prior installation or removal
Installation Notes
Inspect the output shaft, seal bore, and surrounding surfaces before installation. Clean the sealing area thoroughly and verify the replacement seal seats evenly without distortion. Follow the vehicle service procedure for the specific Chevrolet Malibu, Chevrolet Cavalier, Chevrolet Cobalt, or Pontiac Grand Am application.
Quality Assurance
Timken sealing components are built with reinforced construction and contamination-control features to support consistent service performance in transmission applications.
- Fits 2006-2010 Chevrolet Cobalt, N/A
- Fits 2005 Chevrolet Cobalt, N/A, Optional Substitution To O.E.
- Fits 2004-2010 Chevrolet Malibu, N/A, Optional Substitution To O.E.
- Fits 2000-2003 Chevrolet Malibu, N/A
- Fits 1997-1999 Chevrolet Malibu, N/A, Optional Substitution To O.E.
- Fits 2000-2005 Chevrolet Cavalier, N/A
- Fits 1995-1999 Chevrolet Cavalier, N/A, Optional Substitution To O.E.
- Fits 1999 Pontiac Grand Am, N/A
| Year | Make | Model | Transmission | Position | Notes |
|---|---|---|---|---|---|
| 2010 | Chevrolet | Cobalt | Automatic | N/A | — |
| 2010 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2009 | Chevrolet | Cobalt | Automatic | N/A | — |
| 2009 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2008 | Chevrolet | Cobalt | Automatic | N/A | — |
| 2008 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2007 | Chevrolet | Cobalt | Automatic | N/A | — |
| 2007 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2006 | Chevrolet | Cobalt | Automatic | N/A | — |
| 2006 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2005 | Chevrolet | Cavalier | Automatic | N/A | — |
| 2005 | Chevrolet | Cobalt | Automatic | N/A | Optional Substitution To O.E. |
| 2005 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2004 | Chevrolet | Cavalier | Automatic | N/A | — |
| 2004 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 2003 | Chevrolet | Cavalier | Automatic | N/A | — |
| 2003 | Chevrolet | Malibu | Automatic | N/A | — |
| 2002 | Chevrolet | Cavalier | Automatic | N/A | — |
| 2002 | Chevrolet | Malibu | Automatic | N/A | — |
| 2001 | Chevrolet | Cavalier | Automatic | N/A | — |
| 2001 | Chevrolet | Malibu | Automatic | N/A | — |
| 2000 | Chevrolet | Cavalier | Automatic | N/A | — |
| 2000 | Chevrolet | Malibu | Automatic | N/A | — |
| 1999 | Chevrolet | Cavalier | Automatic | N/A | Optional Substitution To O.E. |
| 1999 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 1999 | Pontiac | Grand Am | Automatic | N/A | — |
| 1998 | Chevrolet | Cavalier | Automatic | N/A | Optional Substitution To O.E. |
| 1998 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 1997 | Chevrolet | Cavalier | Automatic | N/A | Optional Substitution To O.E. |
| 1997 | Chevrolet | Malibu | Automatic | N/A | Optional Substitution To O.E. |
| 1996 | Chevrolet | Cavalier | Automatic | N/A | Optional Substitution To O.E. |
| 1995 | Chevrolet | Cavalier | Automatic | N/A | Optional Substitution To O.E. |
