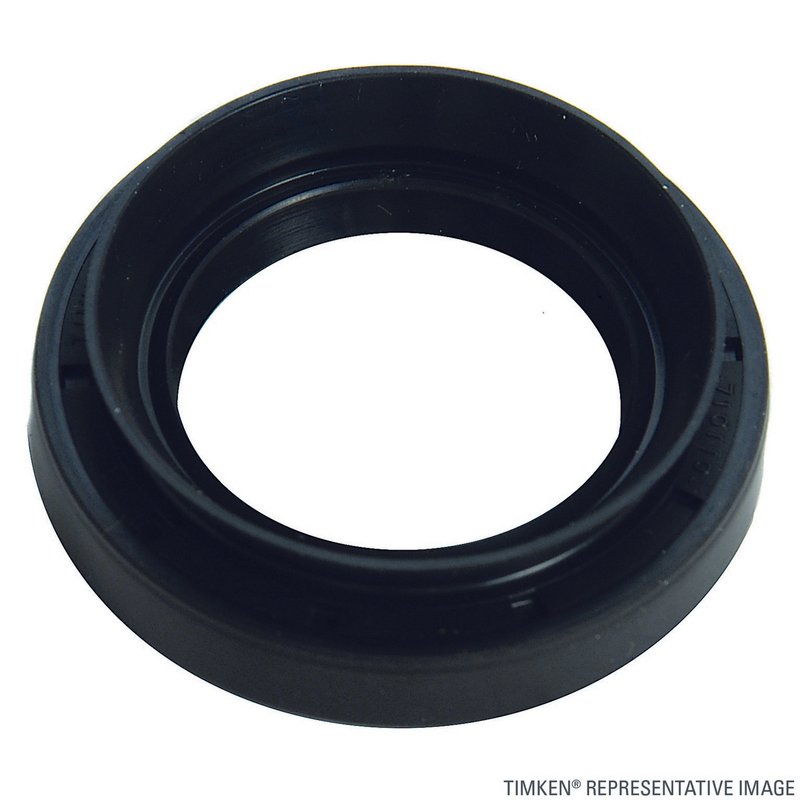

Timken 710109 Manual Transmission Output Shaft Seal - Left

Manual Transmission Output Shaft Seal

Timken 710109 is a manual transmission output shaft seal built to retain lubricant and block contaminants at the transmission shaft. It is a direct-fit sealing solution for a wide range of Toyota, Chevrolet, and Geo applications, including Toyota Corolla, Celica, Matrix, and Yaris models.

Key Features

• Precision sealing design helps prevent gear oil escape and keeps debris out of the transmission
• Reinforced outer case helps resist installation damage and supports long-term durability
• Ribbed rubber inner diameter helps seal minor spindle imperfections and promotes positive seating
• Internal contamination exclusion system helps reduce debris penetration that can lead to leakage
• Vent holes allow lubricant flow around the seal lip to help manage heat build-up
• Timken 710109 is engineered for manual transmission output shaft sealing applications

Detailed Description

This Timken output shaft seal is designed for vehicles that need a reliable barrier at the transmission shaft. It is used across many Toyota and related compact car applications, including Fits 2000-2013 Toyota Corolla, N/A; Fits 2003-2013 Toyota Matrix, N/A; and Fits 2007-2018 Toyota Yaris, N/A. It also covers select left-side applications such as Fits 1985-1993 Toyota Corolla, Left and Fits 1998-2002 Chevrolet Prizm, Left. The part number 710109 is commonly searched for manual transmission seal replacement on Toyota Corolla and Toyota Celica platforms.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Fix

• Transmission fluid leaking from the output shaft area
• Contamination entering the transmission through a worn seal
• Heat-related seal wear from poor lubricant circulation
• Leakage caused by minor shaft surface imperfections
• Noise or drivability concerns related to low transmission fluid level

Installation Notes and Tips

Inspect the shaft surface, seal bore, and surrounding components before installation. Clean the sealing area thoroughly and verify the correct position and side for your vehicle, since fitment includes both N/A and Left applications. Confirm transmission code and vehicle year before ordering, especially on Toyota Corolla, Celica, Matrix, and Prizm models. Timken 710109 should be installed with care to avoid damaging the seal lip or outer case.

Quality Assurance

Timken seals use reinforced construction and contamination-control features to support dependable sealing performance in transmission service.
