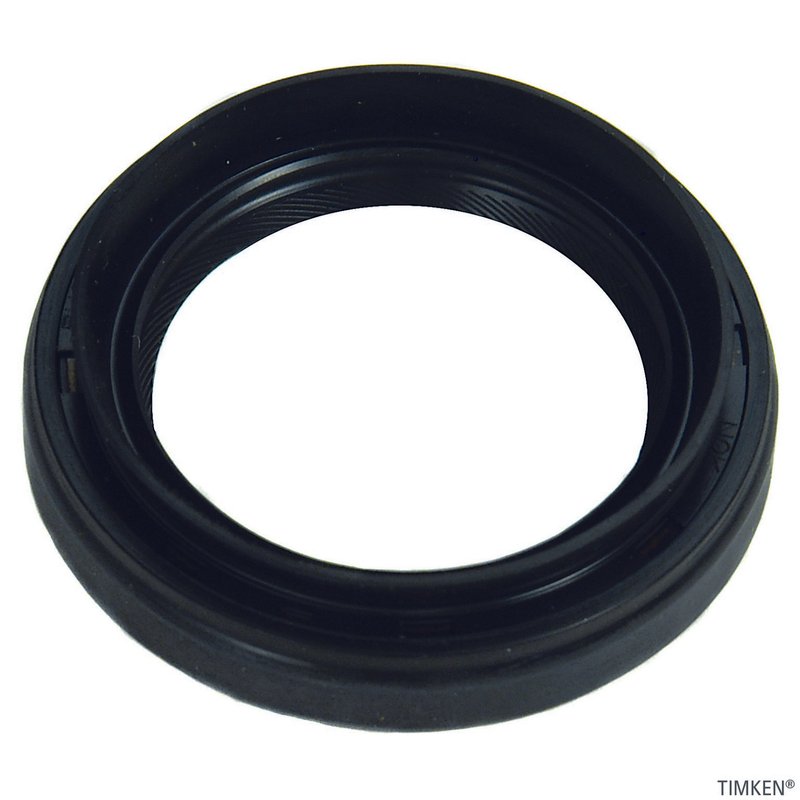

Timken 710114 Transfer Case Output Shaft Seal - Front or Rear

Timken Transfer Case Output Shaft Seal 710114

Timken 710114 is a transfer case output shaft seal built for VF1A and JF403 applications. It helps retain lubricant at the output shaft while keeping dirt and debris out of the transfer case, supporting clean operation in Toyota, Mazda, Geo, and Isuzu drivetrains.

Key Features

• Precision sealing design for lubricant retention and contaminant exclusion
• Reinforced outer case to resist installation damage and improve durability
• Ribbed rubber inner diameter for sealing minor spindle imperfections and promoting positive seating
• Internal contamination exclusion system to help block debris that can lead to leakage
• Vent holes that allow lubricant flow around the seal lip to reduce heat build-up

Fitment Details

• Fits 1996-2004 Toyota RAV4, front VF1A
• Fits 1995-2004 Toyota Tacoma, front VF1A
• Fits 2000-2004 Toyota Tundra, front VF1A
• Fits 1996-2002 Toyota RAV4, rear VF1A
• Fits 1995-2002 Toyota Tacoma, rear VF1A
• Fits 2000-2002 Toyota Tundra, rear VF1A
• Fits 1988-2001 Toyota 4Runner, front VF1A
• Fits 1988-2001 Toyota 4Runner, rear VF1A
• Fits 1995-1999 Mazda Millenia, N/A JF403
• Fits 1993-1998 Toyota T100, front VF1A
• Fits 1993-1998 Toyota T100, rear VF1A
• Fits 1988-1995 Toyota Pickup, front VF1A
• Fits 1988-1995 Toyota Pickup, rear VF1A
• Fits 1993 Geo Storm, N/A
• Fits 1990-1992 Isuzu Impulse, N/A
• Fits 1988-1989 Toyota Van, front VF1A
• Fits 1988-1989 Toyota Van, rear VF1A

What It Helps Address

• Transfer case fluid seepage at the output shaft
• Contamination entering the seal area
• Heat-related seal wear from poor lubricant circulation
• Leakage caused by minor shaft surface imperfections
• Seal damage during installation on service replacement jobs

Installation Notes

Inspect the shaft surface, seal bore, and surrounding housing before installation. Clean the sealing area thoroughly and seat the seal evenly to avoid distortion. Verify the application by transfer case code and vehicle position, since Timken 710114 is used across front and rear VF1A applications as well as JF403 fitments.

Quality Assurance

Timken designs its oil and grease seals with reinforced construction and contamination control features to support dependable sealing performance in drivetrain service. This part cross-references common OE-style transfer case seal applications for the same vehicle coverage.
