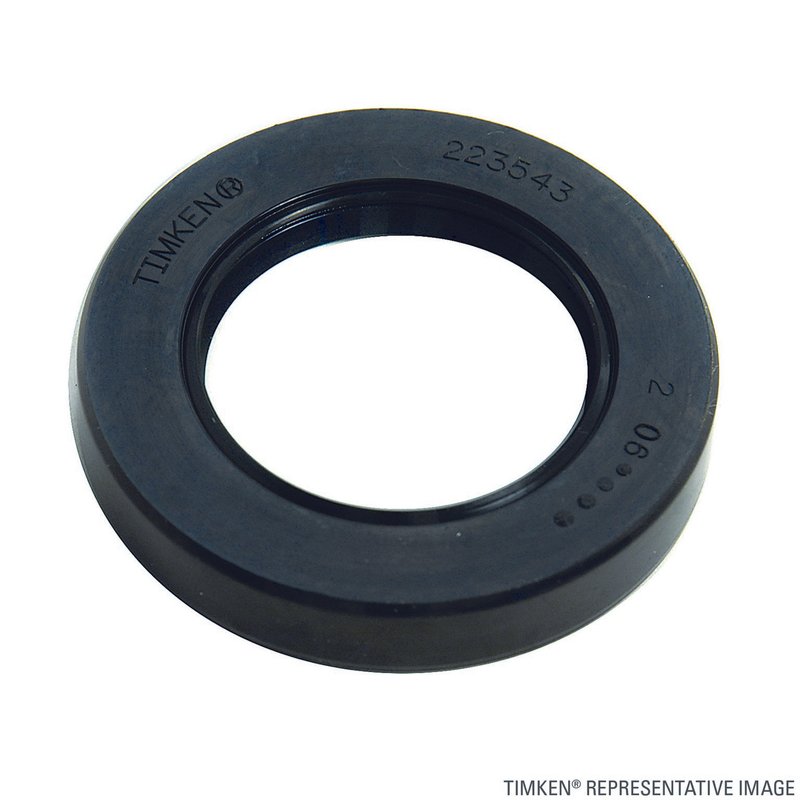

Timken 710316 Manual Transmission Input Shaft Seal

Timken 710316 Manual Transmission Input Shaft Seal

Timken 710316 is a manual transmission input shaft seal built to retain lubricant at the transmission input shaft while helping block dirt and other contaminants from entering the assembly. It is a direct-fit service part for select Nissan, INFINITI, and Toyota applications, including Nissan Sentra, Nissan 240SX, and Toyota Prius models.

Key Features

• Precision sealing design helps control oil and grease leakage at the input shaft
• Reinforced outer case helps resist installation damage and supports durability
• Ribbed rubber inner diameter seals minor spindle imperfections and promotes seating
• Internal contamination exclusion system helps keep debris out of the seal area
• Vent holes allow lubricant flow around the seal lip to reduce heat build-up
• Timken 710316 is engineered for manual transmission sealing service

Detailed Description

This Timken manual transmission input shaft seal is used in select 1980-2003 import vehicles, including applications such as 1983-1999 Nissan Sentra, 1989-1990 Nissan 240SX, 1991-1996 INFINITI G20, and 2001-2003 Toyota Prius. Timken 710316 is designed to maintain proper lubricant retention at the transmission input shaft while helping reduce contamination that can contribute to premature seal wear and leakage.

Timken’s sealing design uses a reinforced outer case for added handling strength during installation, a ribbed inner diameter for improved contact on minor shaft imperfections, and venting features that help manage heat around the seal lip. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Seal Can Address

• Transmission fluid seepage at the input shaft
• Contamination entering the seal area
• Heat-related seal wear from poor lubricant circulation
• Leakage caused by minor shaft surface imperfections
• Seal damage during installation or service removal

Installation Notes and Tips

Inspect the input shaft surface, seal bore, and surrounding components before installation. Clean the sealing area thoroughly and verify the replacement seal is seated squarely to avoid distortion. For best results, confirm vehicle application by year, make, and model before ordering. Compatible With 2001-2003 Toyota Prius, 1999 INFINITI G20, 1991-1996 INFINITI G20, 1983-1999 Nissan Sentra, 1995-1998 Nissan 200SX, 1993 Nissan Altima, 1991-1993 Nissan NX, 1989-1990 Nissan 240SX, 1983-1990 Nissan Pulsar NX, 1983 Nissan Pulsar, and 1980-1982 Nissan 210.

Quality Assurance

Timken manufactures sealing components with precision-focused designs intended for dependable transmission service. Timken 710316 is built to meet the demands of manual transmission input shaft sealing in select Nissan, INFINITI, and Toyota applications.
