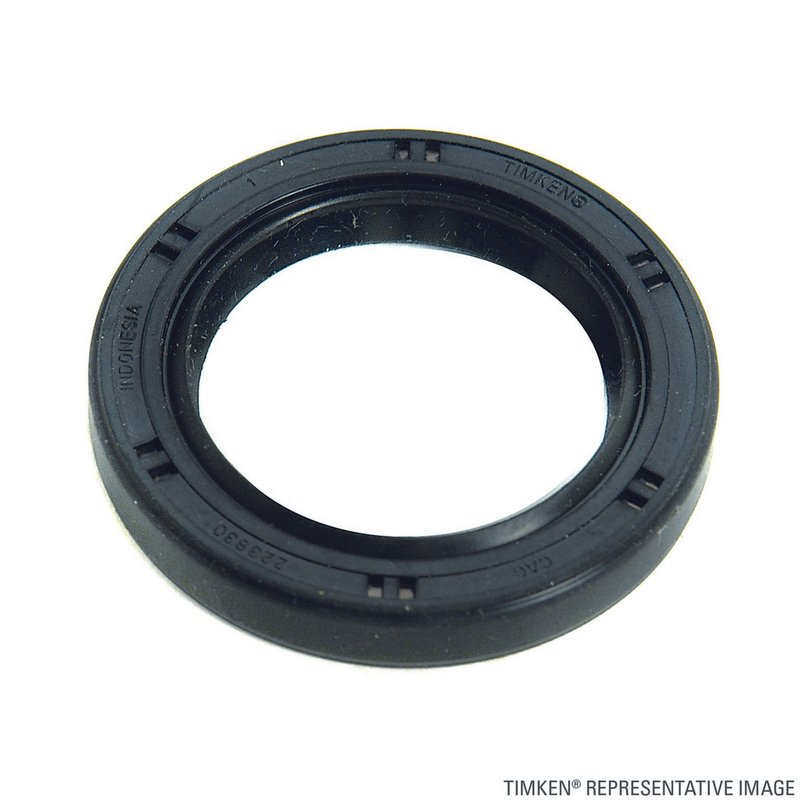

Timken 710436 Engine Camshaft Seal

Timken 710436 Camshaft Seal Overview

Timken 710436 is an engine camshaft seal built to help retain oil at the camshaft while keeping dirt and debris out of the sealing area. It is a direct-fit sealing component for select Lexus GS300, Lexus IS300, Lexus SC300, and Toyota Supra applications.

Key Features

• Precision sealing design helps control lubricant loss and block contaminant entry
• Reinforced outer case helps reduce installation damage and improve durability
• Ribbed rubber inner diameter helps seal minor spindle imperfections and promote secure seating
• Internal contamination exclusion system helps limit debris penetration that can lead to leakage
• Vent holes help circulate lubricant around the seal lip to reduce heat build-up

Application Details

Compatible With 1993-2005 Lexus GS300, 2001-2005 Lexus IS300, 1992-2000 Lexus SC300, and 1993-1998 Toyota Supra. Timken 710436 is designed for engine sealing service where camshaft oil control is critical, including Lexus GS300 and Toyota Supra maintenance jobs that call for a reliable replacement seal.

This part cross-references no listed aftermarket part numbers in the provided data.

Common Problems It Can Help Address

• Oil seepage around the camshaft seal area
• Contamination entering the sealing surface
• Heat-related seal wear from poor lubricant circulation
• Leakage caused by minor spindle surface imperfections
• Damage from a worn or hardened original seal

Installation Notes

Inspect the camshaft sealing surface before installation and clean the bore thoroughly. Use proper seal-driver tools to seat the seal evenly and avoid distortion. Verify the camshaft area is free of scoring, burrs, and old seal residue before assembly.

Quality Assurance

Timken sealing components are engineered with reinforced construction and contamination-control features to support dependable engine service. Timken 710436 is built for the listed Lexus and Toyota applications using design details intended to maintain sealing performance under operating heat and lubricant exposure.
