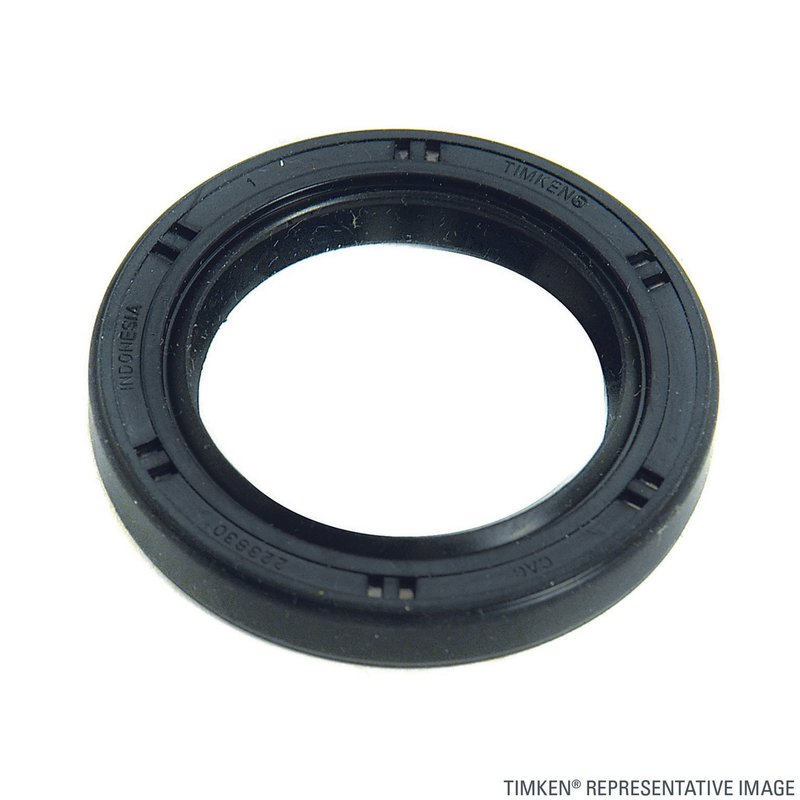

Timken 710535 Automatic Transmission Extension Housing Seal

Timken 710535 Transmission Seal

The Timken 710535 automatic transmission extension housing seal is built for vehicles that need a precise seal at the transmission tail housing. It helps retain lubricant, block contaminants, and support consistent operation in Ford Ranger, Ford Explorer, Ford Mustang, Mercury Mountaineer, Lincoln LS, and related applications.

Key Features

• Precision sealing design helps reduce lubricant escape and keep debris out of the transmission extension housing area.
• Reinforced outer case helps resist installation damage and adds durability during service.
• Ribbed rubber inner diameter helps seal minor spindle imperfections and promotes stable seating.
• Internal contamination exclusion system helps limit debris penetration that can lead to leakage.
• Vent holes allow lubricant flow around the seal lip to help manage heat buildup.
• Timken 710535 is a direct-fit service part for automatic transmission extension housing applications.

Detailed Description

Built for automatic transmission service, the Timken 710535 extension housing seal is engineered to maintain a tight seal where the transmission output area meets the housing. Its sealing design, reinforced case, and contamination-control features support dependable performance in high-mileage drivetrains. This part is used in fitments including 1997-2011 Ford Ranger, 2002-2010 Ford Explorer, 2005-2010 Ford Mustang, 2002-2010 Mercury Mountaineer, and 2000-2006 Lincoln LS. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Solve

• Transmission fluid seepage at the extension housing seal area
• Contamination entering the seal interface
• Seal wear caused by heat buildup
• Leakage related to minor shaft surface imperfections
• Service issues on Ford Ranger and Ford Explorer automatic transmission applications

Installation Notes and Tips

Inspect the sealing surface, shaft condition, and housing bore before installation. Clean the area thoroughly and verify the old seal is fully removed before pressing in the new Timken 710535 seal. Use proper installation tools to avoid distorting the seal case or lip. Confirm the transmission application and year match the vehicle before service, including Ford Explorer Sport Trac, Ford Thunderbird, Lincoln Aviator, Mazda B2500, and Mercury Mountaineer listings where applicable.

Quality Assurance

Timken oil and grease seals are built with precision sealing designs and durability-focused construction for drivetrain service. The 710535 follows that engineering approach for automatic transmission extension housing sealing.
