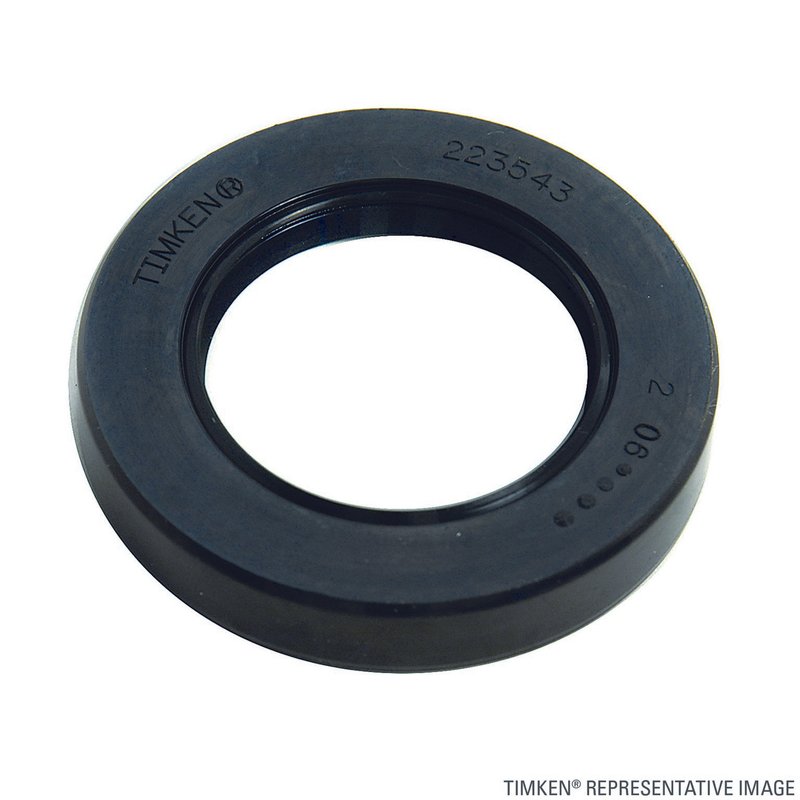

Timken 714503 Transfer Case Output Shaft Seal - Front, Front Forward or Rear

Transfer Case Output Shaft Seal for GM and Ford Applications

Timken 714503 is a transfer case output shaft seal built for vehicles that need reliable lubricant retention at the transfer case output. It is used across a wide range of Ford, Chevrolet, GMC, Cadillac, and Oldsmobile applications, including Ford F-150, Ford Bronco, and Chevrolet Silverado 3500 fitments.

Key Features

• Precision sealing design helps keep gear oil and grease inside the transfer case.
• Reinforced outer case helps resist installation damage and supports durability.
• Ribbed rubber inner diameter helps seal minor spindle imperfections and improve seating.
• Internal contamination exclusion system helps block debris that can contribute to leakage.
• Vent holes promote lubricant flow around the seal lip to reduce heat buildup.
• Fits multiple transfer case configurations, including Warner 1356, 1370, 4401, 4470, and 4472 applications.

Detailed Description

This Timken transfer case output shaft seal is engineered for direct replacement use in drivetrain service where the output shaft area must stay sealed under load and rotation. Timken 714503 is a practical choice for Ford F-150 and Ford Bronco transfer case repairs, as well as Chevrolet Silverado 3500 and GMC Sierra 3500 transfer case sealing service. It also applies to Cadillac SRX front transfer case service and Oldsmobile Bravada front forward or rear applications listed in the fitment data.

This part cross-references National (e.g., 710503, 710504) for the same application.

Common Problems This Seal Can Address

• Transfer case fluid leaking at the output shaft
• Contamination entering the seal area
• Heat-related seal wear at the lip
• Leakage caused by minor shaft surface imperfections
• Service issues on Warner 1356, 1370, 4401, 4470, and 4472 transfer cases

Installation Notes and Tips

Inspect the output shaft surface, seal bore, and surrounding transfer case components before installation. Clean the sealing area thoroughly and verify the correct transfer case configuration and position before pressing the seal into place. For best results, confirm the vehicle’s transfer case model and position against the fitment list, especially on Ford F-250, Ford F-350, Chevrolet K3500, GMC K3500, and GMC V3500 applications.

Quality Assurance

Timken oil and grease seals use precision sealing designs and reinforced construction to support dependable drivetrain service. Part number 714503 is built to meet the demands of transfer case sealing across the listed GM and Ford applications.
